Трансмиссия 2 для квадроциклов Suzuki LT-A750X,Z KINGQUAD 750AXi (2008)

Москва и регионы России

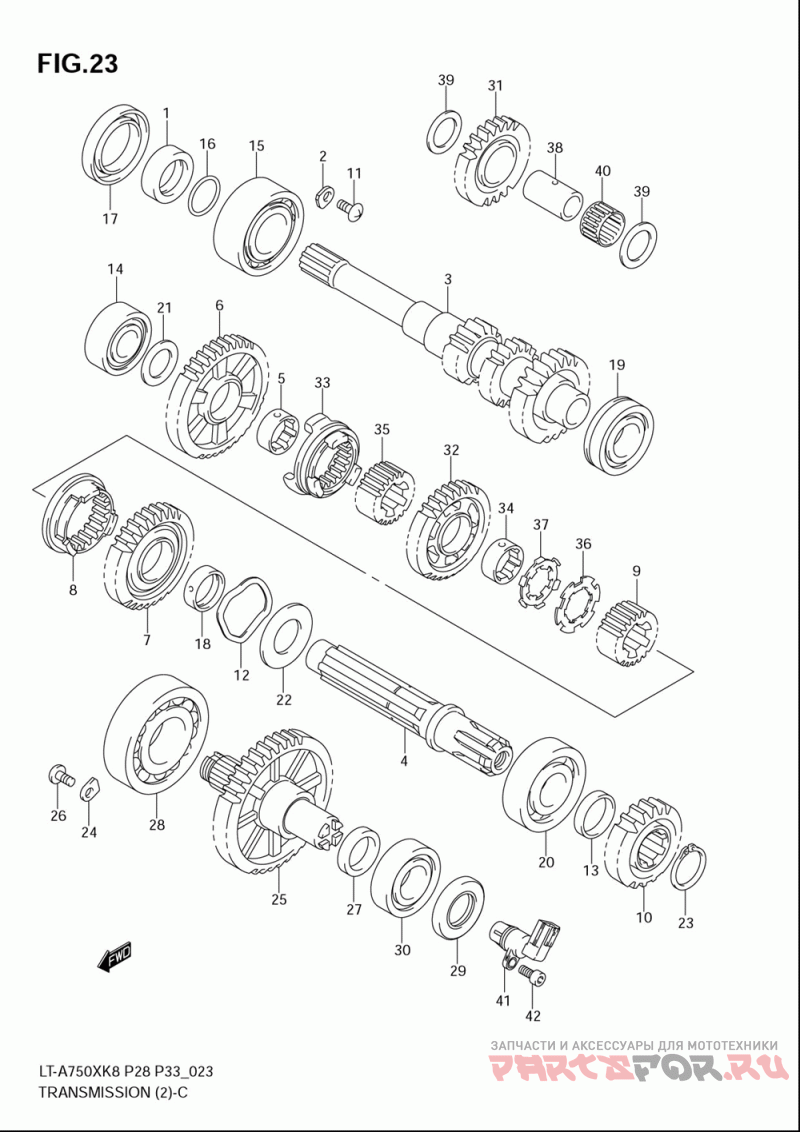

Трансмиссия 2

Suzuki LT-A750X,Z KINGQUAD 750AXi

Трансмиссия 2

#

oem код

название

цена

1

Spacer, Drive Shaft ()

Spacer, Drive Shaft ()

2

Retainer, Shift Cam Bearing ()

Retainer, Shift Cam Bearing ()

3

Shaft, Drive ()

Shaft, Drive ()

4

Shaft, Sub T/m Counter ()

Shaft, Sub T/m Counter ()

5

Bush, 3rd Driven ()

Bush, 3rd Driven ()

6

Gear, Sub T/m Driven Low (nt:41)

Gear, Sub T/m Driven Low (nt:41)

7

Gear, Sub T/m Driven High (nt:31)

Gear, Sub T/m Driven High (nt:31)

8

Dog, Gear Shift High ()

Dog, Gear Shift High ()

9

Spacer, Reverse Select ()

Spacer, Reverse Select ()

10

Gear, Sub T/m Drive No.2 (nt:20)

Gear, Sub T/m Drive No.2 (nt:20)

11

Screw, Shift Cam (6x12) (6x12)

Screw, Shift Cam (6x12) (6x12)

12

Washer, Sub T/m Driven ()

Washer, Sub T/m Driven ()

13

Spacer, Sub T/m Drive Gear (25x30x7)

Spacer, Sub T/m Drive Gear (25x30x7)

14

Bearing, Center Shaft Lh (20x47x14)

Bearing, Center Shaft Lh (20x47x14)

15

.bearing (30x62x23.8) (30x62x23.8)

.bearing (30x62x23.8) (30x62x23.8)

16

Кольцо (d:2.4, Id:24.7)

Кольцо (d:2.4, Id:24.7)

17

.seal, Crankshaft Oil Upper (38x56x7.0)

.seal, Crankshaft Oil Upper (38x56x7.0)

18

Bush, 5th Drive ()

Bush, 5th Drive ()

19

.bearing (25x52x15) (25x52x15)

.bearing (25x52x15) (25x52x15)

20

Bearing (25x62x17) ()

Bearing (25x62x17) ()

21

Thrust Washer ()

Thrust Washer ()

22

Washer, Sub T/m Driven, L ()

Washer, Sub T/m Driven, L ()

23

08331-31256 ()

08331-31256 ()

25

Shaft, Sub T/m Output ()

Shaft, Sub T/m Output ()

27

Spacer, Sub T/m Output (25x34x5.5)

Spacer, Sub T/m Output (25x34x5.5)

28

Bearing, Sub T/m Output, R (25x62x17)

Bearing, Sub T/m Output, R (25x62x17)

29

.seal, Oil (25x45x5)

.seal, Oil (25x45x5)

31

Gear, Reverse Idle (nt:23) ()

Gear, Reverse Idle (nt:23) ()

32

Gear, Reverse Driven (nt:32) ()

Gear, Reverse Driven (nt:32) ()

33

Dog, Sub T/m Select Sl ()

Dog, Sub T/m Select Sl ()

36

Lock Washer, 3rd Driven ()

Lock Washer, 3rd Driven ()

37

Washer, 3rd Driven Lock ()

Washer, 3rd Driven Lock ()

38

Shaft, Reverse Idle ()

Shaft, Reverse Idle ()

39

Washer, 1st Driven (20x30x1.0)

Washer, 1st Driven (20x30x1.0)

40

Bearing, Reverse Idle Gear (20x47x14)

Bearing, Reverse Idle Gear (20x47x14)

41

Sensor, Speed ()

Sensor, Speed ()

42

Болт

Болт
