Электрика для квадроциклов Suzuki LT-A750X,Z KINGQUAD 750AXi (2008)

Электрика

Suzuki LT-A750X,Z KINGQUAD 750AXi

oem код

название

цена

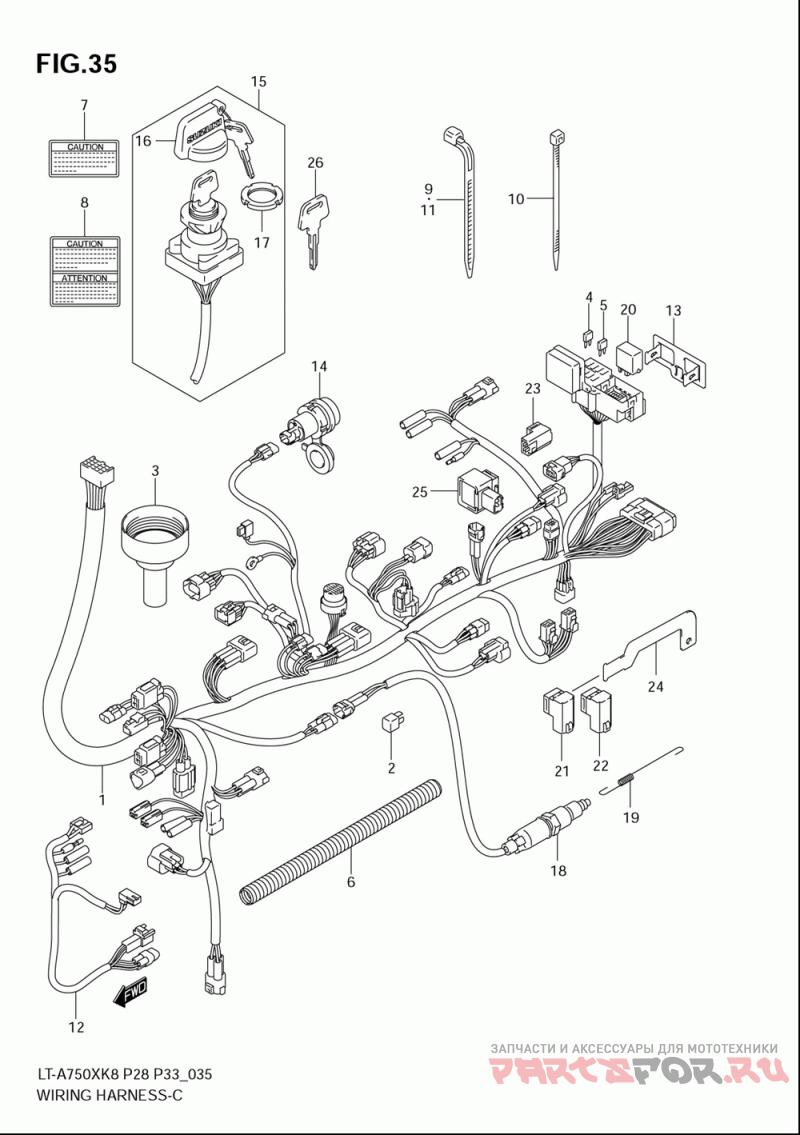

Wiring Harness ()

.diode ()

.cover ()

.fuse (10a) ()

.fuse (15a) ()

Guide, Wiring Harness ()

38852-09F30

Label, Caution Max Amp (e33)

38852-03G10

Label, Caution Max Amp (e28)

9-1

09407-11401

.clamp, Sw Lead (l:95) ()

9-2

09407-14403

.clamp, Battery Cable ()

9-3

09407-25401

Clamp (l:235) ()

09407-14407

.clamp, Harness (l:140) ()

Clamp ()

Wire, Fr Brke Sw ()

Bracket, Fuse ()

Terminal, Power Source ()

37110-31G00

Switch Assy, Ignition ()

37142-19B00

.mascot, Key ()

37112-24500

.nut, Ignition ()

37740-38F01

Switch Assy, Stop Lamp ()

09443-06080

Spring ()

38730-09F00

Relay, Neutral Start ()

38740-31G01

Relay Assy, Def Lock ()

38741-31G20

Bracket, Relay ()

38750-31G00

Relay Assy, Drive ()

26-1

37146-19B00

Key, Blank (type:c) (opt)

26-2

37146-19B10

Key, Blank (type:d) (opt)

26-3

37146-19B20

Key, Blank (type:e) (opt)

26-4

37146-19B30

Key, Blank (type:f) (opt)
