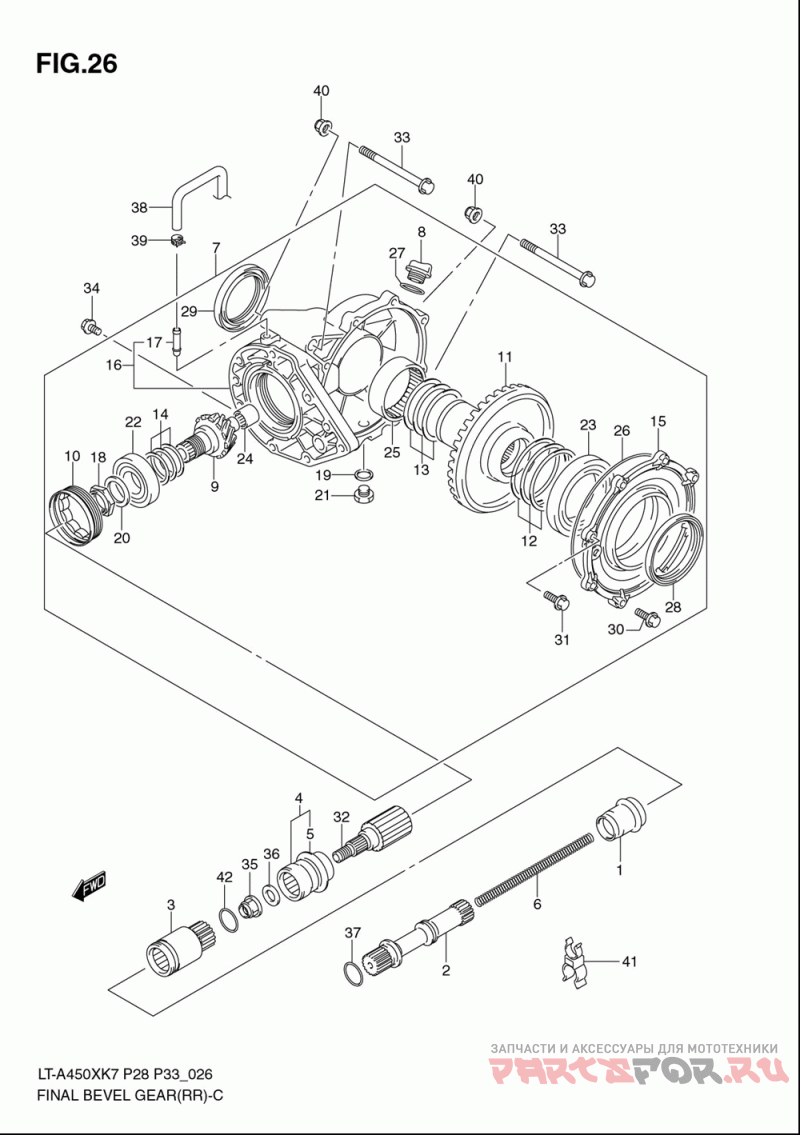

Редуктор задний

Suzuki LT-A450X 450AXi

Suzuki
#oem кодцена
1
27153-31G40
Boot, Joint Shaft ()
2
27155-31G10
Shaft, Rear Propeller ()
3
27157-31G10
Joint, Rear Propeller ()
4
27170-31G20
Coupling, Rr Prop Shaft ()
5
27592-31G10
.plate, Output Oil Seal ()
6
27192-31G10
Spring, Rear Propeller ()
7
27410-31G50
Case Assy, Rear ()
8-1
09259-20008-XC0
Plug (model K7)
9
27311-31G50
.gear, Rr Final Drive ()
10
27312-38F00
.stopper, Final Drive ()
11
27320-31G00
.gear, Rr Final Driven ()
12
27326-31810
.shim Set, Final Driven, L (t:0.30/0.35/0.40/0.50/0.60)
13
27327-31810
.shim Set, Final Driven, R (t:0.30/0.35/0.40/0.50/0.60)
14
27445-24810
.shim Set, Final Drive Gear (t:0.30/0.35/0.40/0.50/0.60)
15
27451-31G10
.case, Rear Final Gear, L ()
16
27460-31G10
.case, Rear Final Gear, R ()
17
09364-08003
.pipe, Breather (model K7)
18
09140-28006
.nut, Rear Final Drive ()
19
09168-14004
.gasket (14.1x18x1.5) (13.8x18.8x4.8)
20
09181-28195
.washer, Rr Final Dr Gr (28x38x1.0)
21
09247-14013
.plug, Oil Drain ()
22
09262-28023
.bearing, Final Drive Gear (28x68x18)
23
09262-65001
.bearing, Final Driven, L (65x100x11.0)
24
09263-20062
Bearing, Idle Shaft (20x34x18)
25
09263-55003
.bearing, Final Driven, R (55x67x20)
26
09280-00029
.o-ring, Bearing Case, L (d:2.4,id:61)
27
09280-17003
O Ring, Oil Filler Cap (d:3.1,id:16.8)
28
09283-59001
.seal, Final Driven Gear, L (59x88x859x88x8)
30-1
09103-08357
Bolt (8x35) (model K78x35)
32
27594-31G50
Shaft, Rr Final Drive ()
33
09103-10148
Bolt (10x110) (10x110)
34
09103-10405
Bolt, 10x30 (10x30)
35
09159-14010
Nut, Rr Prop Shaft Coup ()
36
09181-14002
Washer, Rear Prop Shaft (14x26x2.0)
37
09280-20002
O-ring, Rr Propeller (d:3.1,id:19.4)
38
27491-31G00
Hose, Breather ()
39
09401-10403
Clamp, Breather Case ()
40
09159-10115
Гайка
41
09408-00235
Clamp, Breather Hose ()
42
09280-26006
O Ring (d:3.1, Id:26.4) ()
