Трансмиссия 2 для квадроциклов Suzuki LT-A400F KingQuad 400AS 4x4 (2008)

Москва и регионы России

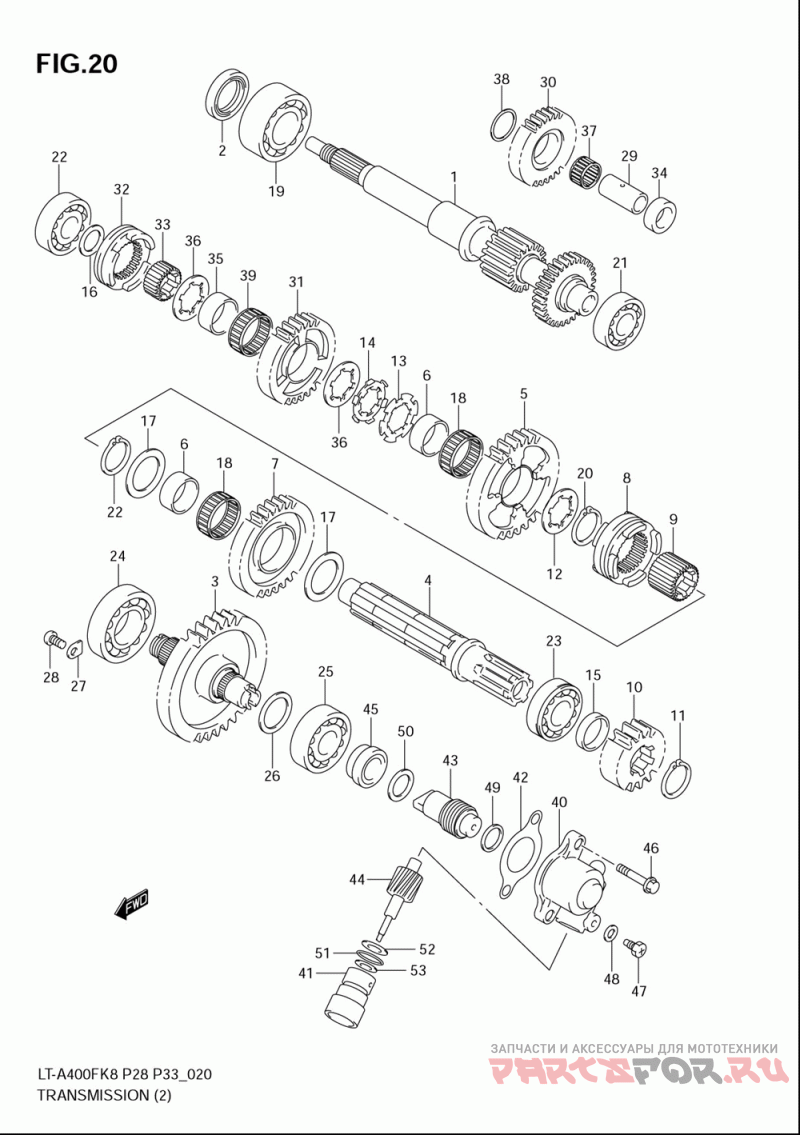

Трансмиссия 2

Suzuki LT-A400F KingQuad 400AS 4x4

Трансмиссия 2

#

oem код

название

цена

1

Shaft, Drive ()

Shaft, Drive ()

2

Seal, Oil ()

Seal, Oil ()

3

Shaft, Sub T/m O ()

Shaft, Sub T/m O ()

4

Shaft, Sub T/m C ()

Shaft, Sub T/m C ()

5

Gear, Sub T/m Driven Low (nt:40)

Gear, Sub T/m Driven Low (nt:40)

6

Bush, Reverse Driven Gear ()

Bush, Reverse Driven Gear ()

7

Gear, Sub T/m Driven High (nt:33)

Gear, Sub T/m Driven High (nt:33)

8

Dog, Sub T/m Select ()

Dog, Sub T/m Select ()

9

Spacer, Sub T/m Select ()

Spacer, Sub T/m Select ()

10

Gear, Sub T/m Drive No.2 (nt:19)

Gear, Sub T/m Drive No.2 (nt:19)

11

08331-31256 ()

08331-31256 ()

12

Washer (25.1x40x1.5) ()

Washer (25.1x40x1.5) ()

13

Lock Washer, 3rd Driven ()

Lock Washer, 3rd Driven ()

14

Washer, 3rd Driven Lock ()

Washer, 3rd Driven Lock ()

15

Spacer, Sub T/m Drive Gear ()

Spacer, Sub T/m Drive Gear ()

16

Washer, 1st Driven ()

Washer, 1st Driven ()

17

Shim (25x36x1.0) (25x40x1.0)

Shim (25x36x1.0) (25x40x1.0)

18

Bearing, Reverse Driven Gear (30x35x12)

Bearing, Reverse Driven Gear (30x35x12)

19

Bearing, Final Drive Gear ()

Bearing, Final Drive Gear ()

20

Circlip ()

Circlip ()

21

Bearing, Counter Shaft Rh (20x47x14)

Bearing, Counter Shaft Rh (20x47x14)

22

Bearing, Drive Shaft, Rh (20x52x15)

Bearing, Drive Shaft, Rh (20x52x15)

23

.bearing (25x52x15) (25x52x15)

.bearing (25x52x15) (25x52x15)

24

Bearing (35x72x17) (35x72x17)

Bearing (35x72x17) (35x72x17)

26

Shim (t:1.0) (20x34x1)

Shim (t:1.0) (20x34x1)

27

Retainer, Shift Cam Bearing ()

Retainer, Shift Cam Bearing ()

28

Screw, Shift Cam (6x12) ()

Screw, Shift Cam (6x12) ()

29

Shaft, Reverse Idle ()

Shaft, Reverse Idle ()

30

Gear, Reverse Id ()

Gear, Reverse Id ()

31

Gear, Reverse Dr ()

Gear, Reverse Dr ()

32

Dog, Reverse Gr ()

Dog, Reverse Gr ()

33

Spacer, Reverse Idle ()

Spacer, Reverse Idle ()

34

Spacer, Reverse ()

Spacer, Reverse ()

37

Bearing, Reverse Idle Gear ()

Bearing, Reverse Idle Gear ()

40

Housing, Odometer Gear ()

Housing, Odometer Gear ()

41

Sleeve ()

Sleeve ()

42

Gasket, Odometer ()

Gasket, Odometer ()

43

Gear, Drive (nt:9) ()

Gear, Drive (nt:9) ()

44

Gear, Drive (nt:15) ()

Gear, Drive (nt:15) ()

45

Spacer, Odometer Drive Gear ()

Spacer, Odometer Drive Gear ()

46

Болт

Болт

47

Болт

Болт

48

Gasket (6.2x11x1.2) ()

Gasket (6.2x11x1.2) ()

49

Washer (15x20x1.0) ()

Washer (15x20x1.0) ()

50

Washer (17x24x1.0) ()

Washer (17x24x1.0) ()

51

O Ring, Center Shaft ()

O Ring, Center Shaft ()

52

Seal, Odometer (5x12x8) ()

Seal, Odometer (5x12x8) ()

53

Шайба

Шайба
