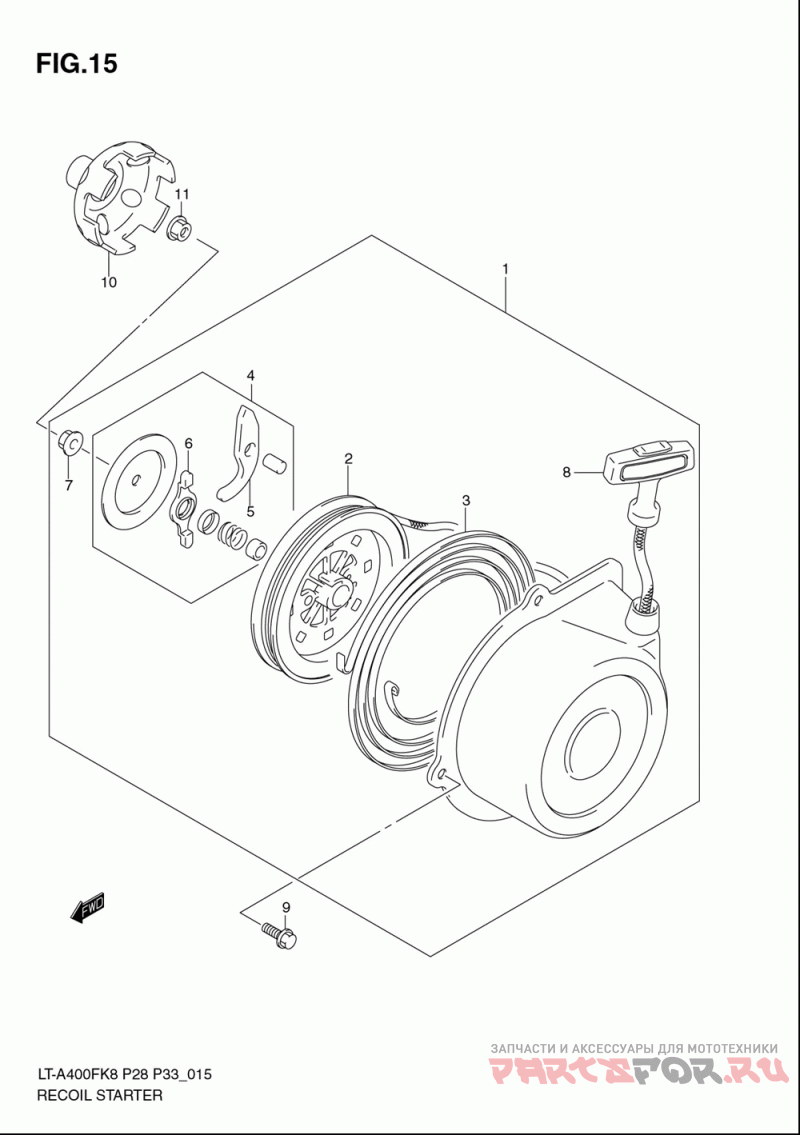

Ручной стартер
Suzuki LT-A400F KingQuad 400AS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 18100-24503 Starter Assy, Recoil () | Starter Assy, Recoil () | |
2 | 18120-24500 .reel () | .reel () | |
3 | 18142-24400 .spring, Spiral () | .spring, Spiral () | |
4 | 18130-24400 .ratchet Set () | .ratchet Set () | |
5 | 18131-24411 ..ratchet () | ..ratchet () | |
6 | 18132-24400 ..guide, Ratchet () | ..guide, Ratchet () | |
7 | 08316-1006B Гайка | Гайка | |
8 | 18200-24501 .rope Assy () | .rope Assy () | |
9 | 09103-06236 Screw, Push (6x12) () | Screw, Push (6x12) () | |
10 | 18410-09F02 Cup, Starter () | Cup, Starter () | |
11 | 08316-1010B Nut, Wheel Rim () | Nut, Wheel Rim () |
