Трансмиссия 1 для квадроциклов Suzuki LT-A400 KINGQUAD (2008)

Москва и регионы России

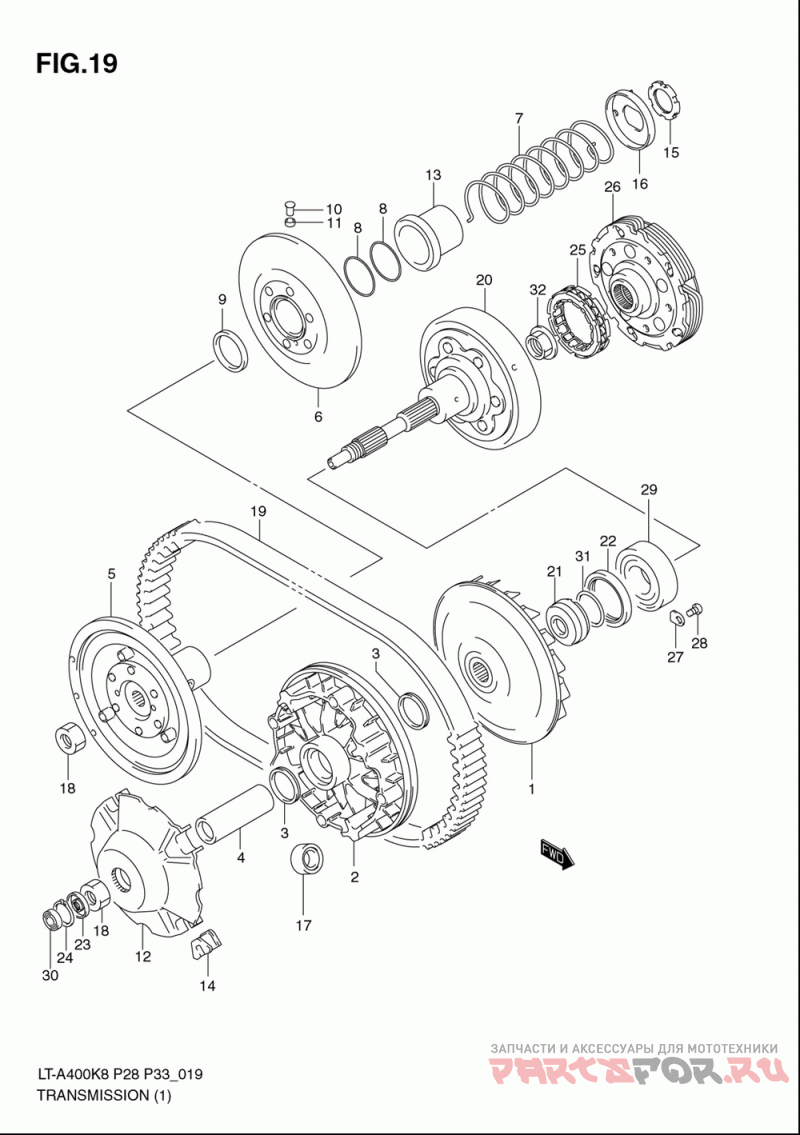

Трансмиссия 1

Suzuki LT-A400 KINGQUAD

Трансмиссия 1

#

oem код

название

цена

1

Щека

Щека

2

Щека подвижная

Щека подвижная

3

Seal, Movable Drive ()

Seal, Movable Drive ()

4

Spacer, Movable Drive ()

Spacer, Movable Drive ()

5

Face, Fixed Driv ()

Face, Fixed Driv ()

6

Face, Movable Dr ()

Face, Movable Dr ()

7

Spring, Movable Driven ()

Spring, Movable Driven ()

8

O-ring, Movable Driven ()

O-ring, Movable Driven ()

9

Seal, Movable Driven ()

Seal, Movable Driven ()

10

Pin, Movable Driven ()

Pin, Movable Driven ()

11

Spacer, Movable Driven Pin ()

Spacer, Movable Driven Pin ()

12

Plate, Movable Drive ()

Plate, Movable Drive ()

13

Sheet, Movable Driven ()

Sheet, Movable Driven ()

14

Damper, Movable Drive Plate ()

Damper, Movable Drive Plate ()

15

Гайка

Гайка

16

Holder, Movable Driven ()

Holder, Movable Driven ()

17

Roller, Movable ()

Roller, Movable ()

18

Nut, Face ()

Nut, Face ()

19

Ремень

Ремень

20

Housing, Clutch ()

Housing, Clutch ()

21

Spacer, Fixed Drive Lh ()

Spacer, Fixed Drive Lh ()

22

Seal, Clutch Housing ()

Seal, Clutch Housing ()

23

Seal, Clutch Housing Rh (12x32x5.0)

Seal, Clutch Housing Rh (12x32x5.0)

24

Circlip ()

Circlip ()

25

Clutch, Pri Drive One Way ()

Clutch, Pri Drive One Way ()

26

Сцепление

Сцепление

27

Retainer, Shift Cam Bearing ()

Retainer, Shift Cam Bearing ()

28

Screw, Shift Cam (6x12) ()

Screw, Shift Cam (6x12) ()

29

Bearing (40x80x18) (40x80x18)

Bearing (40x80x18) (40x80x18)

30

Bearing, Rh ()

Bearing, Rh ()

31

.o Ring, Intake Pipe ()

.o Ring, Intake Pipe ()

32

Гайка

Гайка
