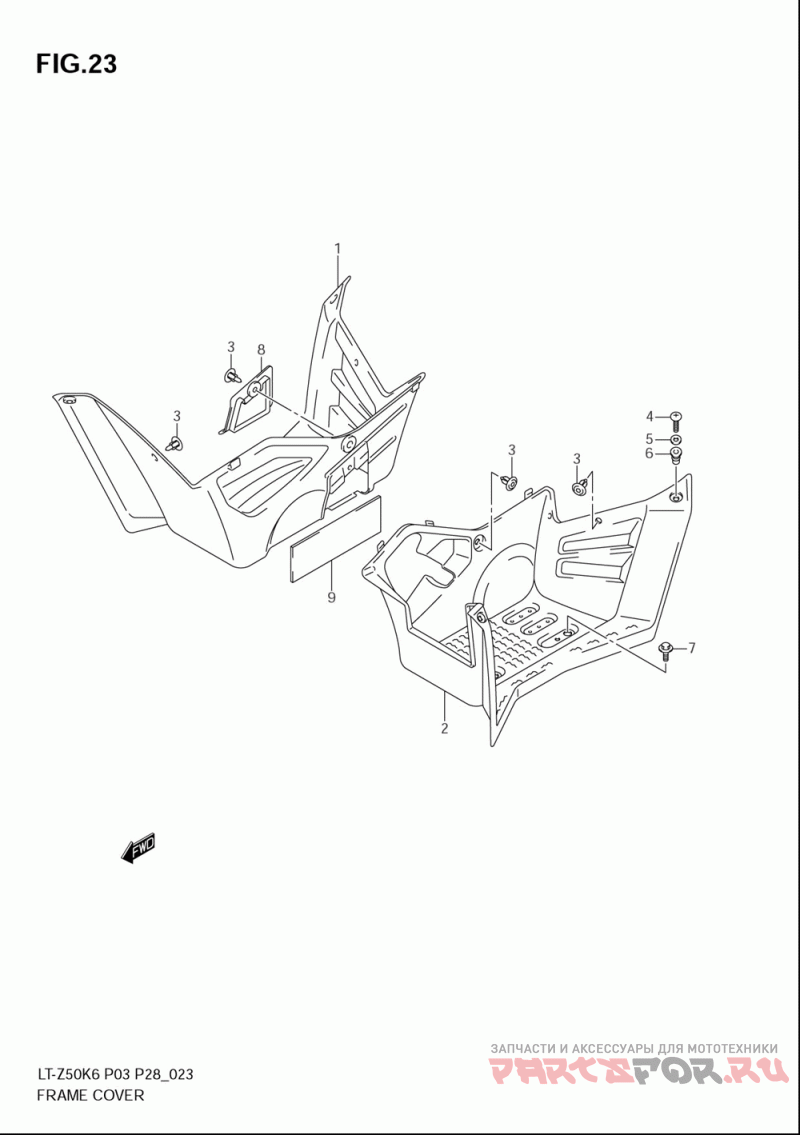

Обтекатель рамы
Suzuki LT Z50 QuadSport Z50
| # | oem код | название | цена |
|---|---|---|---|
1 | 47111-43G00-291 Cover, Frame Rh (black) | Cover, Frame Rh (black) | |
2 | 47211-43G00-291 Cover, Frame Lh (black) | Cover, Frame Lh (black) | |
3 | 09409-07333 Clip, Tray | Clip, Tray | |
4 | 02142-0520B Винт | Винт | |
5 | 08322-0105A Шайба | Шайба | |
6 | 09159-05019 .nut, Air Intk Inner Guide | .nut, Air Intk Inner Guide | |
7 | 09111-06081 Bolt, Lower | Bolt, Lower | |
8 | 47121-43G00 Lid, Rh | Lid, Rh | |
9 | 63262-43G00 Shield, Cover | Shield, Cover |
