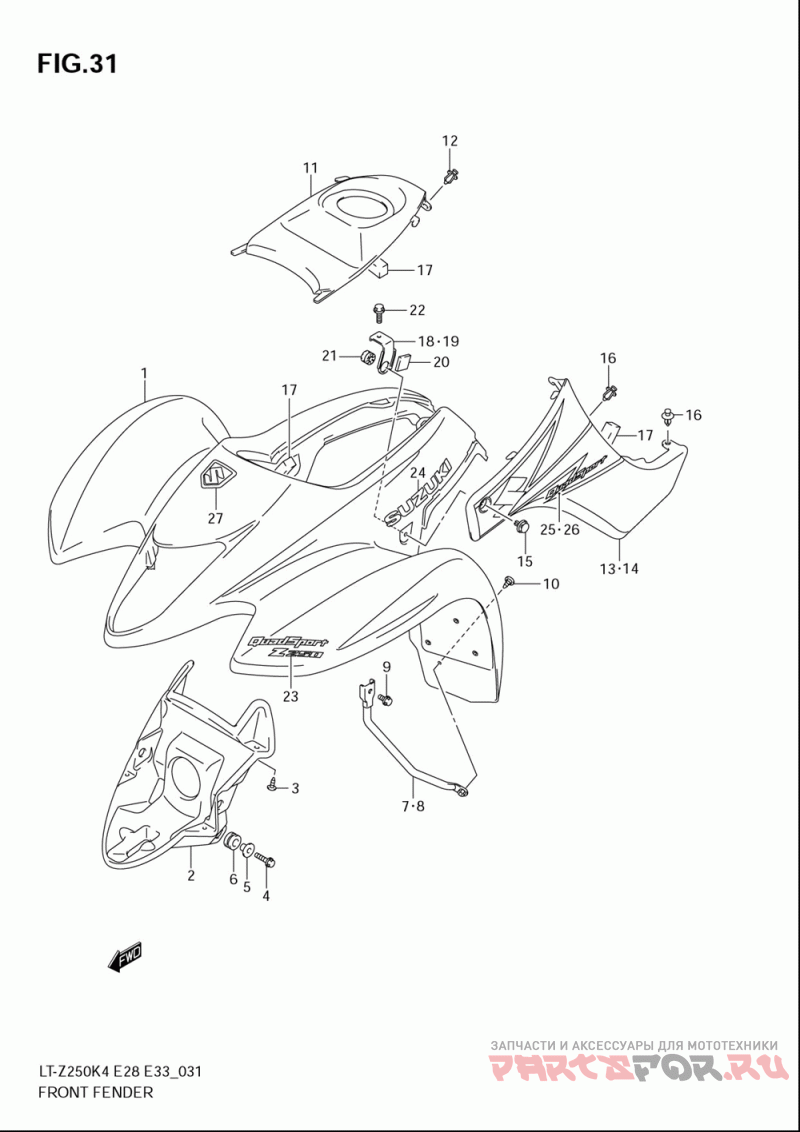

Front fender (model k4) для квадроциклов Suzuki LT Z250 QuadSport Z250 (2007)

Front fender (model k4)

Suzuki LT Z250 QuadSport Z250

oem код

название

цена

1-1

53111-21G01-YU1

Fender, Front (yellow)

1-2

53111-21G01-30H

Fender, Front (white)

Подкрылок

Винт

Болт

Проставка

Подушка

Крепление правое

Крепление левое

Болт

Винт

11-1

53119-21G01-YU1

Fender, Center (yellow)

11-2

53119-21G01-30H

Fender, Center (white)

09409-07333

Clip, Tray

13-1

53112-21G01-YU1

Cover, Side Rh (yellow)

13-2

53112-21G01-30H

Cover, Side Rh (white)

14-1

53122-21G01-YU1

Cover, Side Lh (yellow)

14-2

53122-21G01-30H

Cover, Side Lh (white)

Зажим

Cushion, No.1

Крепление правое

Крепление левое

Подушка

Cushion, No.2

23-1

68151-21G00-KD1

Emblem, "quadsport"

23-2

68151-21G00-JV6

Emblem, "quadsport"

24-1

68661-29F00-GY8

Emblem, "suzuki"

24-2

68661-29F00-8YM

Emblem, "suzuki"

25-1

68155-21G00-KD2

Tape, Rh

25-2

68155-21G10-YDS

Tape, Rh

26-1

68156-21G00-KD2

Tape, Lh

26-2

Tape, Lh

Emblem, "s"

Зажим

Болт
