Suspension arm для квадроциклов Suzuki LT R450 QUADRACER (2007)

Москва и регионы России

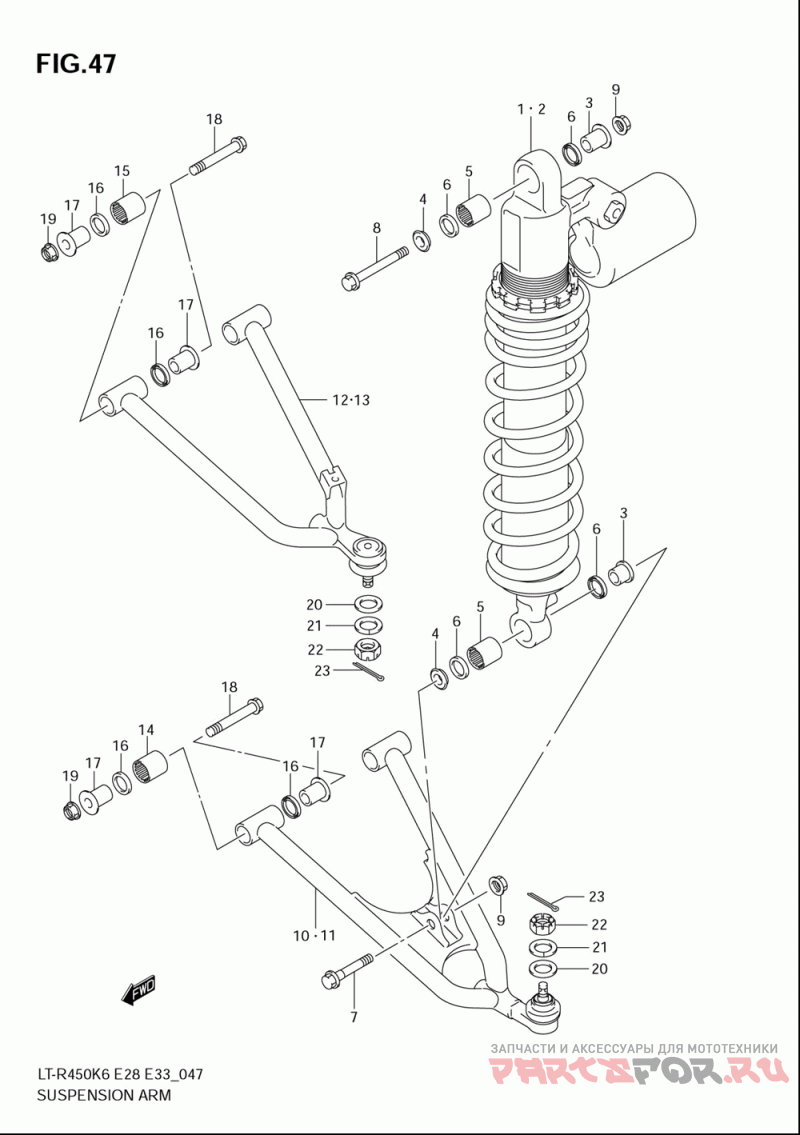

Suspension arm

Suzuki LT R450 QUADRACER

Suspension arm

#

oem код

название

цена

1-1

52103-45G00-YKS

Absorber Assy, Front Shock, R

Absorber Assy, Front Shock, R

1-2

52103-45G00-28W

Absorber Assy, Front Shock, R

Absorber Assy, Front Shock, R

2-1

52104-45G00-YKS

Absorber Assy, Front Shock, L

Absorber Assy, Front Shock, L

2-2

52104-45G00-28W

Absorber Assy, Front Shock, L

Absorber Assy, Front Shock, L

3

.spacer, Bearing Rh

.spacer, Bearing Rh

4

.spacer, Bearing Lh

.spacer, Bearing Lh

5

.bearing (16x22x12)

.bearing (16x22x12)

6

Seal, Rear (16x22x2.5)

Seal, Rear (16x22x2.5)

7

09103-10116-A05

Bolt, Lower

Bolt, Lower

8

09103-10352-A05

Bolt, Upper

Bolt, Upper

9

Гайка

Гайка

10

52410-45G10-YBA

Arm Assy, Suspen

Arm Assy, Suspen

11

52420-45G10-YBA

Arm Assy, Suspen

Arm Assy, Suspen

12

52430-45G10-YBA

Arm, Suspension

Arm, Suspension

13

52440-45G10-YBA

Arm, Suspension

Arm, Suspension

14

Bearing, Suspension Arm Pivot

Bearing, Suspension Arm Pivot

16

Seal, Rod Inner

Seal, Rod Inner

17

52455-45G00-A05

Проставка

Проставка

18

09103-10033-A05

Болт

Болт

20

Шайба

Шайба

21

09162-10008-A05

Washer, Knuckle End Lock

Washer, Knuckle End Lock

22

Nut, Knuckle End

Nut, Knuckle End

23

Шплинт

Шплинт

7

Bolt 10x43

Bolt 10x43

8

Болт

Болт

18

Bolt Engine Mou

Bolt Engine Mou

19

Гайка

Гайка

21

Washer, 10.2x18.

Washer, 10.2x18.
