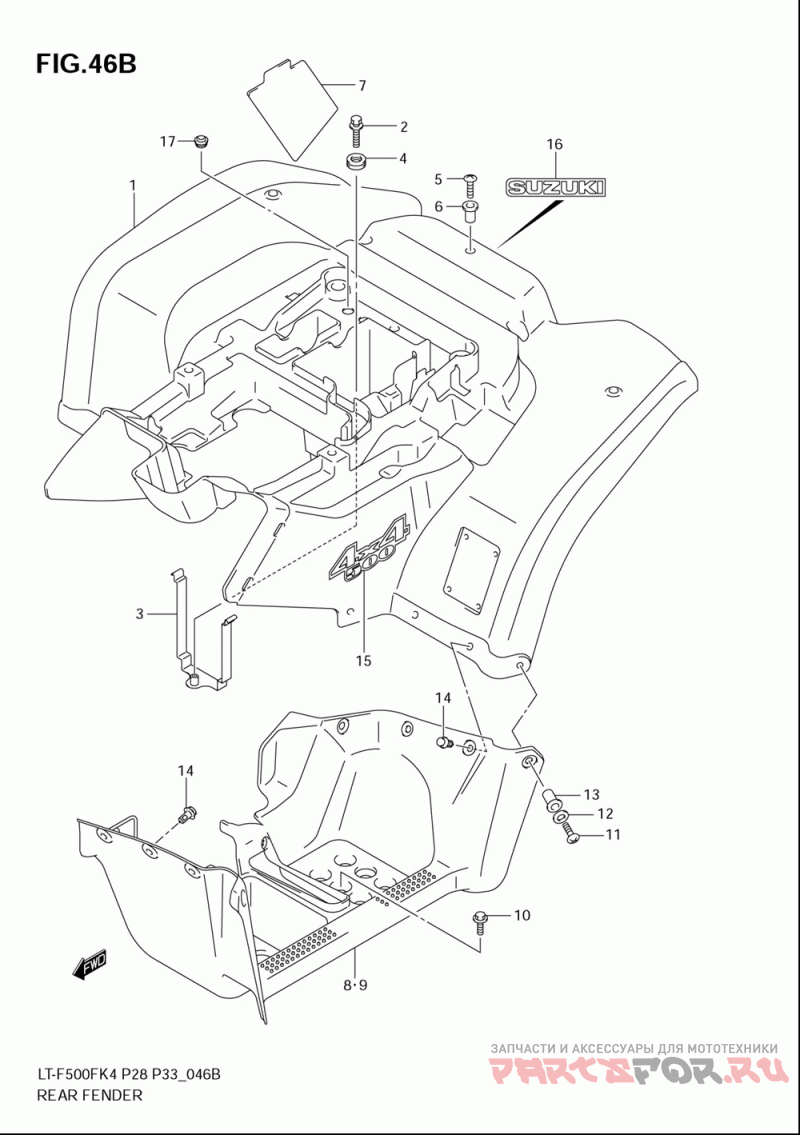

Rear fender (model k7)

Suzuki LT F500F VINSON 4x4 MANUAL

Rear fender (model k7)

#

oem код

название

цена

1-1

63111-03G21-YT9

Fender, Rear (red)

Fender, Rear (red)

1-2

63111-03G21-YLG

Fender, Rear (green)

Fender, Rear (green)

1-3

63111-03GC2-YKL

Fender, Rear (ca

Fender, Rear (ca

1-4

63111-03G21-YLZ

Fender, Rear (black)

Fender, Rear (black)

1-5

63111-03G21-YU1

Fender, Rear (yellow)

Fender, Rear (yellow)

2

Болт

Болт

3

Bracket, Rear Fender

Bracket, Rear Fender

4

Подушка

Подушка

5

Винт

Винт

6

.nut, Air Intk Inner Guide

.nut, Air Intk Inner Guide

7

Накладка

Накладка

8

63331-03GF0-291

Mudguard, Front Rh (black)

Mudguard, Front Rh (black)

9

63341-03GF0-291

Mudguard, Front Lh (black)

Mudguard, Front Lh (black)

10

Болт

Болт

12

Шайба

Шайба

14

Зажим

Зажим

15-1

68171-03G30-DJG

Emblem, Side

Emblem, Side

15-2

68171-03GC0-DJG

Emblem, Side

Emblem, Side

16-1

68171-03G20-YD8

Emblem, Rear (silver)

Emblem, Rear (silver)

16-2

68171-03GA0-YD8

Emblem, Rear (silver)

Emblem, Rear (silver)

17

Plug, Rear Fender

Plug, Rear Fender

11

Винт

Винт

13

Гайка

Гайка
