Топливный бак (модель k4/k5/k6) для квадроциклов Suzuki LT F400 EIGER 4X2 MANUAL (2007)

Москва и регионы России

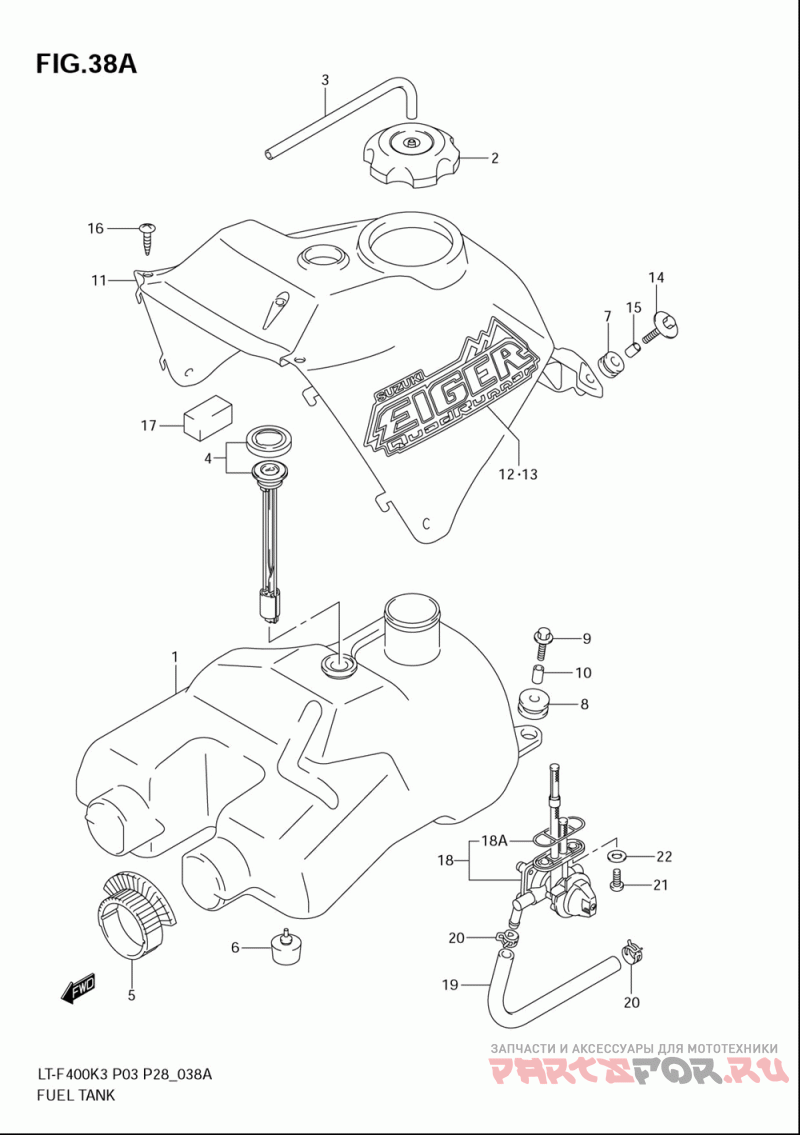

Топливный бак (модель k4/k5/k6)

Suzuki LT F400 EIGER 4X2 MANUAL

Топливный бак (модель k4/k5/k6)

#

oem код

название

цена

1

Tank Assy, Fuel

Tank Assy, Fuel

2

Cap Assy, Fuel Tank

Cap Assy, Fuel Tank

3

09352-50823-600

Шланг

Шланг

4

Gauge Assy, Fuel Level

Gauge Assy, Fuel Level

5

Подушка, передняя

Подушка, передняя

6

Cushion, Lower

Cushion, Lower

7

Cushion, Seat Mount Rear

Cushion, Seat Mount Rear

8

Cushion, Rear

Cushion, Rear

9

Болт

Болт

10

Проставка

Проставка

11-1

44271-38F10-YT8

Cover, Tank (green)

Cover, Tank (green)

11-2

44271-38F10-YU1

Cover, Tank (yellow)

Cover, Tank (yellow)

11-3

44271-38F10-019

Cover, Tank (black)

Cover, Tank (black)

11-4

44271-38F10-YT9

Cover, Tank (red)

Cover, Tank (red)

11-5

44271-38F10-YLG

Cover, Tank (green)

Cover, Tank (green)

12-1

68111-38F10-MV6

Emblem, Cover Rh

Emblem, Cover Rh

12-2

68111-38F10-AWT

Emblem, Cover Rh

Emblem, Cover Rh

12-3

68111-38F10-CPR

Emblem, Cover Rh

Emblem, Cover Rh

13-1

68121-38F10-MV6

Emblem, Cover Lh

Emblem, Cover Lh

13-2

68121-38F10-AWT

Emblem, Cover Lh

Emblem, Cover Lh

13-3

68121-38F10-CPR

Emblem, Cover Lh

Emblem, Cover Lh

14

Болт

Болт

15

Проставка

Проставка

16

Screw, Seat Tail Cover

Screw, Seat Tail Cover

17

Подушка, передняя

Подушка, передняя

18-1

Cock Assy, Fuel

Cock Assy, Fuel

18-2

Cock Assy, Fuel

Cock Assy, Fuel

18A

Кольцо

Кольцо

19

Шланг топливный

Шланг топливный

20

Зажим

Зажим

21

Болт

Болт

22

Gasket, Drain Bolt

Gasket, Drain Bolt

11-3

44271-38F10-YLZ

Cover, Tank (black)

Cover, Tank (black)

3

Hose, 5x8.2x600

Hose, 5x8.2x600
