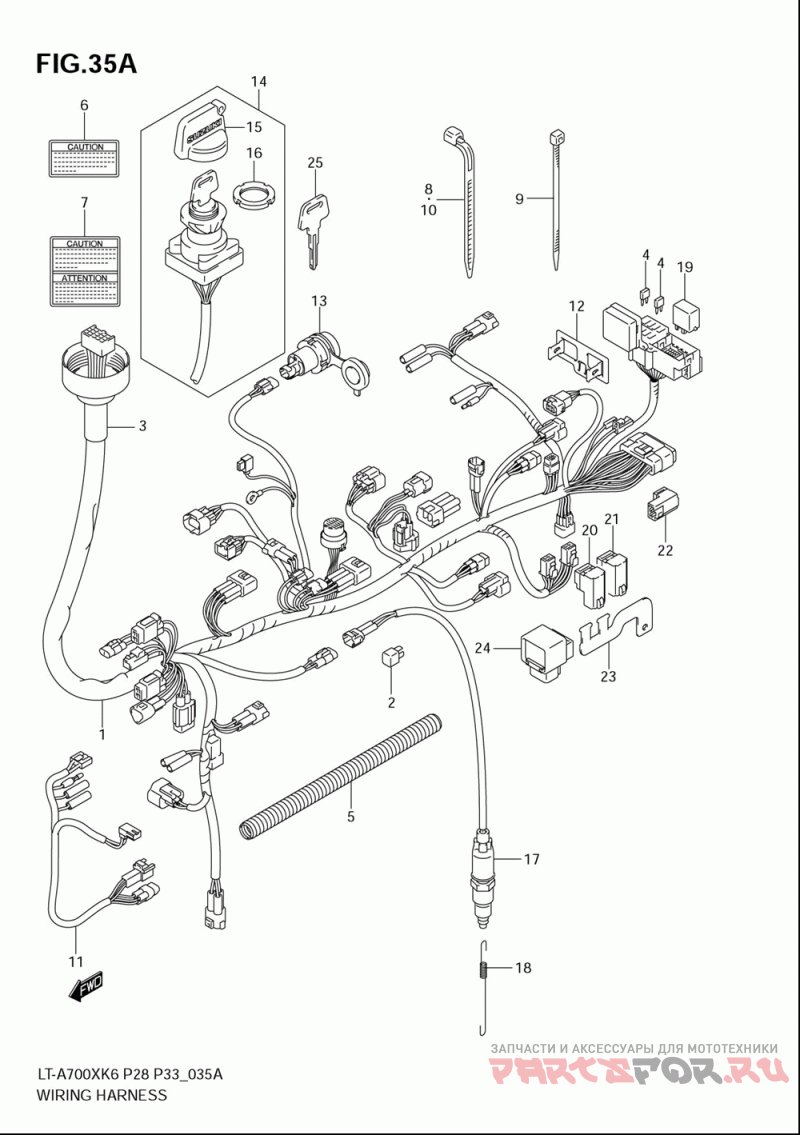

Wiring harness (model k6/k7 f.no.5saap41a 67110001~) для квадроциклов Suzuki LT A700X KINGQUAD 4x4 (2007)

Wiring harness (model k6/k7 f.no.5saap41a 67110001~)

Suzuki LT A700X KINGQUAD 4x4

Wiring harness (model k6/k7 f.no.5saap41a 67110001~)

oem код

название

цена

36610-31G30

Harness, Wiring

32800-16A00

.diode

36618-31G00

.cover

4-1

09481-10501

Предохранитель (10a)

4-2

09481-15501

Предохранитель (15a)

36619-31G00

Guide, Wiring Harness

38852-09F30

Label, Caution Max Amp

38852-03G10

Label, Caution Max Amp

8-1

09407-11401

.clamp, Sw Lead (l:95)

8-2

09407-14403

.clamp, Battery Cable

8-3

09407-18402

Стяжка L-165

8-4

09407-25401

Стяжка

09407-14407

Стяжка L-140

09407-19401

Зажим

11-1

36857-03G00

Wire, Front Brake Switch Lead

11-2

36857-31G00

Wire, Fr Brke Sw

36744-31G00

Крепление

38850-03G00

Terminal, Power Source

37110-31G00

Switch Assy, Ignition

37142-19B00

.mascot, Key

37112-24500

.nut, Ignition

37740-38F01

Переключатель в сборе, стоп-сигнал

09443-06080

Пружина

38730-09F00

Relay, Neutral Start

20-1

38740-31G10

Relay Assy, Def Lock

20-2

38740-31G01

Relay Assy, Def Lock

38741-31G10

Bracket, Relay

38750-31G00

Relay Assy, Drive

25-1

37146-19B00

Key, Blank (type:c)

25-2

37146-19B10

Key, Blank (type:d)

25-3

37146-19B20

Key, Blank (type:e)

25-4

37146-19B30

Key, Blank (type:f)

36610-31G32

Harness, Wiring

38741-31G20

Bracket, Relay

21-1

38740-31G10

Relay, Assy

21-2

38740-31G01

Relay, Assy, Fuel
