Rear fender (model k5/k6) для квадроциклов Suzuki LT A500F,B,C VINSON 4x4 AUTOMATIC (2007)

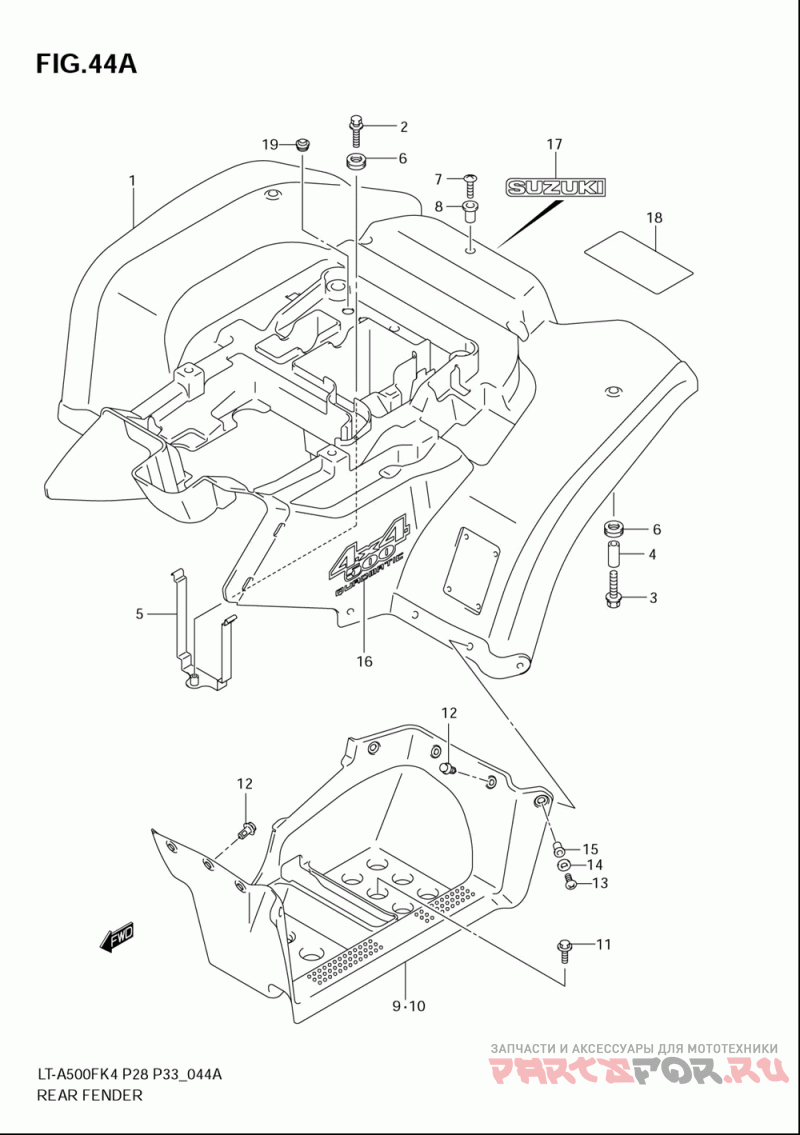

Rear fender (model k5/k6)

Suzuki LT A500F,B,C VINSON 4x4 AUTOMATIC

oem код

название

цена

1-1

63111-03G21-YT9

Fender, Rear (red)

1-2

63111-03G21-YT8

Fender, Rear (green)

1-3

63111-03G21-YU1

Fender, Rear (yellow)

1-4

63111-03G21-YLZ

Fender, Rear (black)

1-6

63111-03G21-YLG

Fender, Rear (green)

1-7

63111-03GC1-YDH

Fender, Rear (camouflage) (~f.no.5saam43a657102567camo)

1-8

63111-03GC2-YKL

Fender, Rear (ca (f.no.5saam43a657102568~camo)

Болт

Болт

Spacer (6.5x11.5x12)

Bracket, Rear Fender

Подушка

Винт

.nut, Air Intk Inner Guide

Mudguard, Footre

Mudguard, Footre

Bolt, 6x16.5

Зажим

Шайба

16-1

68171-03G00-AWU

Emblem, Side

16-2

68171-03G00-AMB

Emblem, Side

16-3

68171-03G10-CFN

Emblem, Side

16-4

68171-03GB0-AWU

Emblem, Side

16-5

68171-03GC0-CFN

Emblem, Side

17-1

68171-03G20-20H

Emblem, Rear (silver)

17-2

68171-03GA0-20H

Emblem, Rear (silver)

63262-21G00

Shield, Rear Fender Front

63118-03G00

Plug, Rear Fender

02142-0520B

Винт

09159-05019

Гайка

1-5

63111-03G21-YLZ

Крыло заднее

1-9

63111-03G21-YLZ

Крыло заднее
