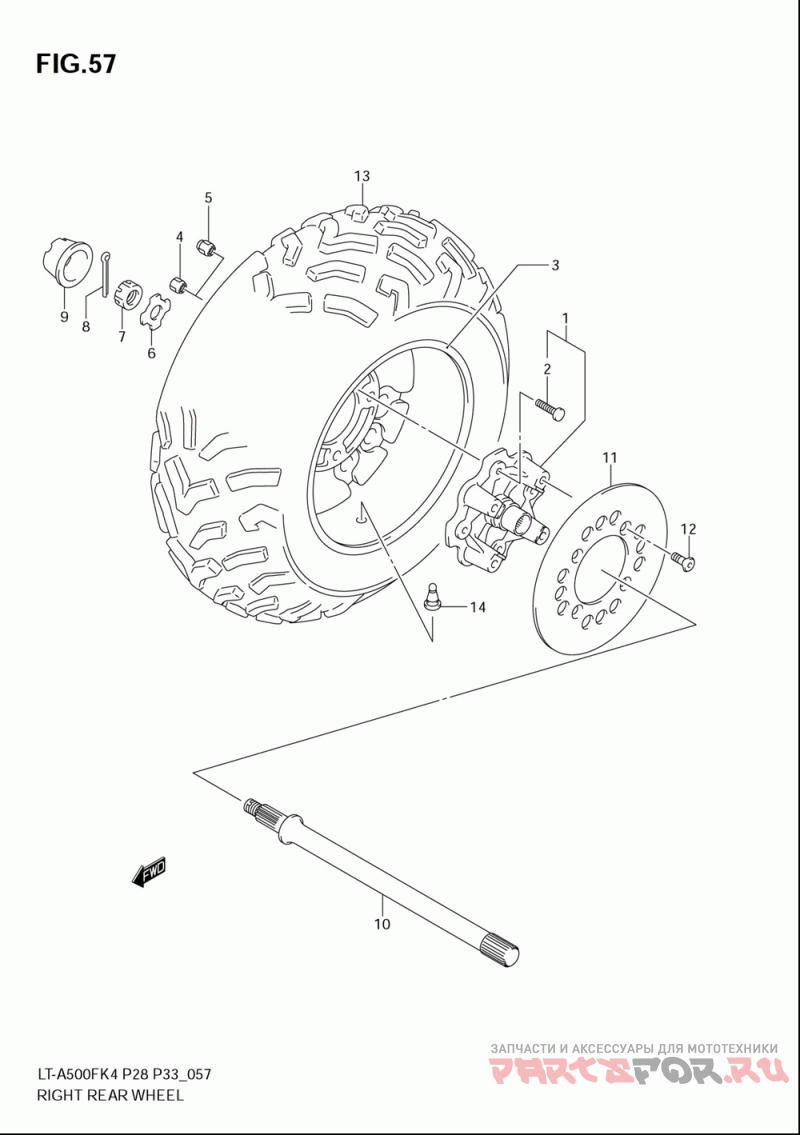

Заднее колесо правое для квадроциклов Suzuki LT A500F,B,C VINSON 4x4 AUTOMATIC (2007)

Заднее колесо правое

Suzuki LT A500F,B,C VINSON 4x4 AUTOMATIC

oem код

название

цена

64110-38F10

Hub, Rear Wheel Rh

09119-10049-XC0

Болт

3-1

65311-03G00-12Z

Rim, Rear Wheel (12x7.5at) (model K4for Yt8,yt9,yu1,ydhmodel K5model K6 For 019,yt9,ylg,yklmodel K7 For Yt9,ylg,ykl,ylz)

3-2

65311-03G10-12Z

Rim, Rear Wheel (12x7.5at) (model K4/k5for Yfrmodel K6 For 3wxmodel K7 For 4yx,yu1)

09140-10021

Nut (model K4for Yt8, Yt9, Yu1, Ydhmodel K5/k6/k7)

09159-10012

Nut (model K4for Yfr)

6-1

64723-09F00

Шайба

6-2

64723-03G00

Шайба

7-1

09141-18010

Nut, Hub

7-2

09141-20008

Nut, Hub

04111-4040A

Штифт

54725-09F01

Крышка центральная

10-1

64711-03G10

Axle, Rear Rh

69211-38F00

Disc, Rear Brake

09106-08155

Bolt, Disc

13-1

65110-38F21

Tire, Rear

13-2

65110-38F30

Tire, Rear (at25x10-12)

13-3

65110-03G20

Tire, Rear (at25x10-12)

43130-24A00

Valve Assy, Wheel Rim (tr412)

10-2

64711-03G10

Axle, Rear, R 20m
