Топливный бак (model k7) для квадроциклов Suzuki LT A400F EIGER 4x4 AUTOMATIC (2007)

Москва и регионы России

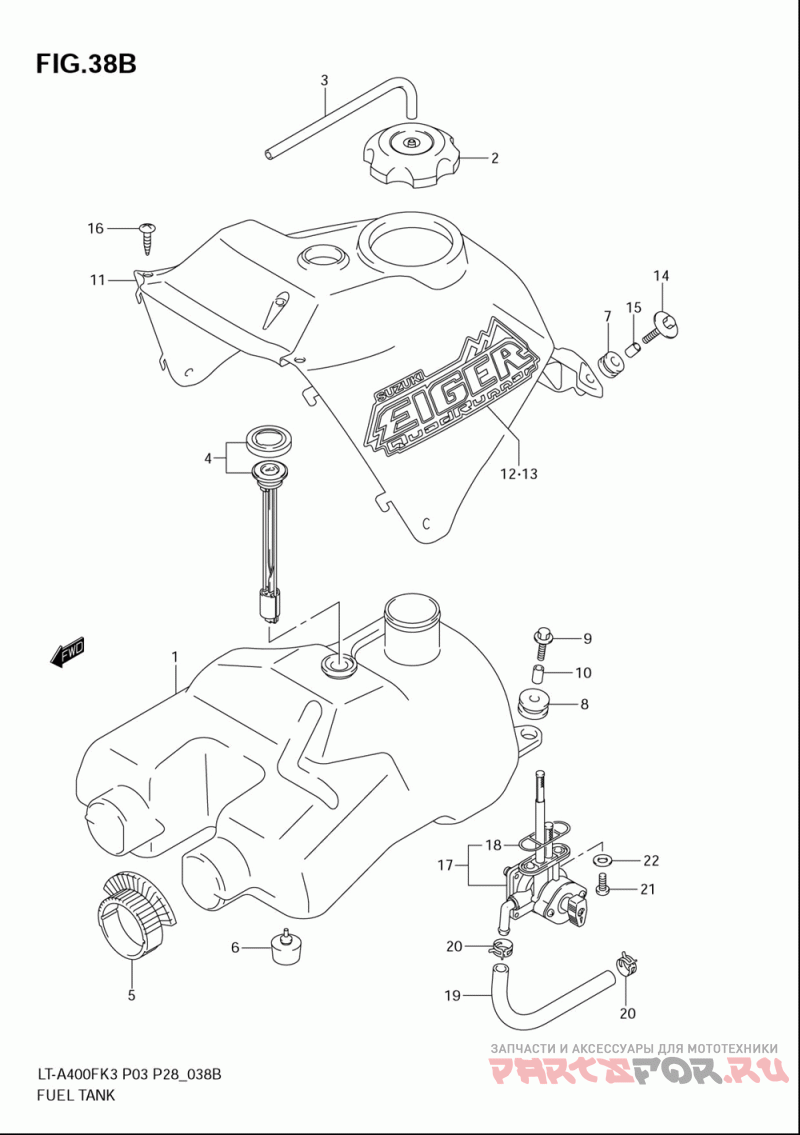

Топливный бак (model k7)

Suzuki LT A400F EIGER 4x4 AUTOMATIC

Топливный бак (model k7)

#

oem код

название

цена

1

Tank Assy, Fuel

Tank Assy, Fuel

2

Cap Assy, Fuel Tank

Cap Assy, Fuel Tank

3

09352-50823-600

Шланг

Шланг

4

Gauge Assy, Fuel Level

Gauge Assy, Fuel Level

5

Подушка, передняя

Подушка, передняя

6

Cushion, Lower

Cushion, Lower

7

Cushion, Seat Mount Rear

Cushion, Seat Mount Rear

8

Cushion, Rear

Cushion, Rear

9

Болт

Болт

10

Проставка

Проставка

11-1

44271-38F10-YT9

Cover, Tank (red)

Cover, Tank (red)

11-2

44271-38F10-YLG

Cover, Tank (green)

Cover, Tank (green)

11-3

44271-38F10-YLZ

Cover, Tank (black)

Cover, Tank (black)

11-4

44271-38FC0-YDH

Cover, Tank (camouflage)

Cover, Tank (camouflage)

11-5

44271-38FC0-YKL

Cover, Tank (camouflage)

Cover, Tank (camouflage)

12-1

68111-38F20-DJF

Emblem, Cover Rh

Emblem, Cover Rh

12-2

68111-38FA0-DJF

Emblem, Cover Rh

Emblem, Cover Rh

13-1

68121-38F20-DJF

Emblem, Cover Lh

Emblem, Cover Lh

13-2

68121-38FA0-DJF

Emblem, Cover Lh

Emblem, Cover Lh

14

Болт

Болт

15

Проставка

Проставка

16

Screw, Seat Tail Cover

Screw, Seat Tail Cover

17

Cock Assy, Fuel

Cock Assy, Fuel

18

Кольцо

Кольцо

19

Шланг топливный

Шланг топливный

20

Зажим

Зажим

21

Болт

Болт

22

Gasket, Drain Bolt

Gasket, Drain Bolt

3

Hose, 5x8.2x600

Hose, 5x8.2x600
