Right rear wheel (model k3) для квадроциклов Suzuki LT Z400,Z QuadSport Z400 (2006)

Москва и регионы России

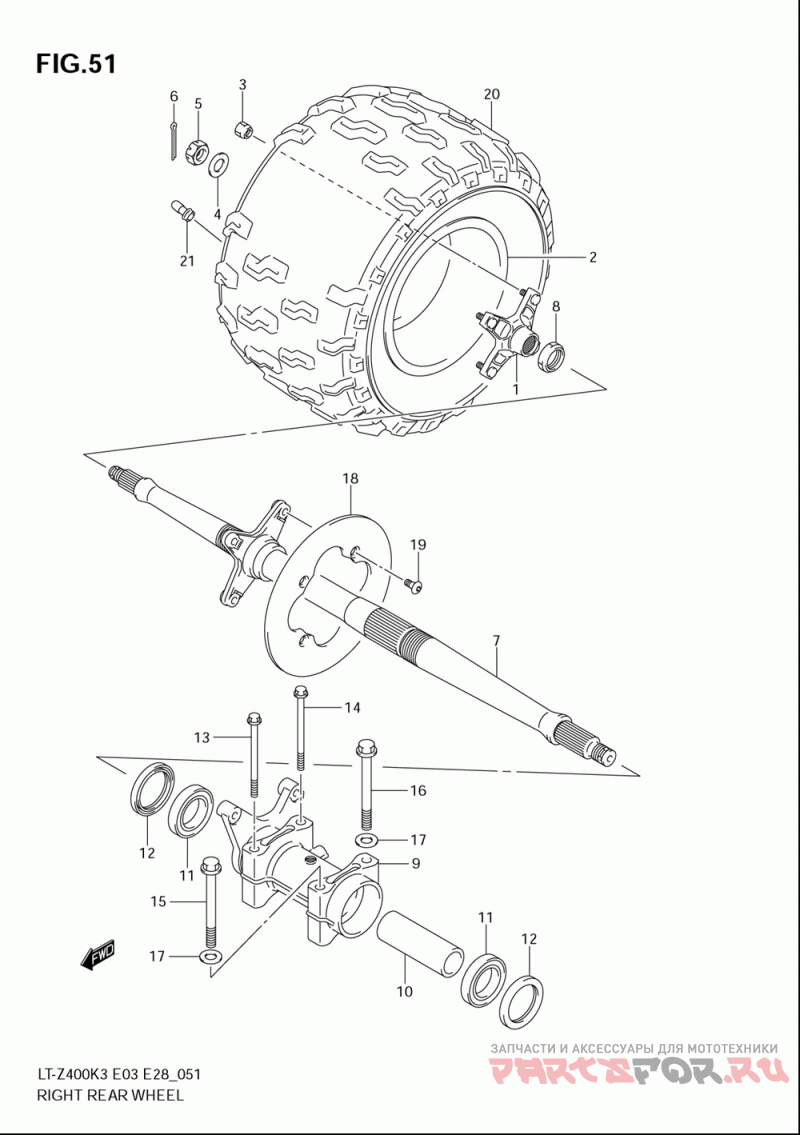

Right rear wheel (model k3)

Suzuki LT Z400,Z QuadSport Z400

Right rear wheel (model k3)

#

oem код

название

цена

1

64110-07G00-YU8

Hub, Rear Wheel (gray)

Hub, Rear Wheel (gray)

2

Rim, Rear Wheel (9x8.0at)

Rim, Rear Wheel (9x8.0at)

3

Гайка

Гайка

4

Упругая Шайба

Упругая Шайба

5

Nut, Hub

Nut, Hub

6

Штифт

Штифт

7

Axle, Rear Lt-z

Axle, Rear Lt-z

8

Nut, Rear Axle Rh

Nut, Rear Axle Rh

9

Housing, Rr Axle

Housing, Rr Axle

10

Spacer, Rr Axle Bearing

Spacer, Rr Axle Bearing

11

Bearing, Rear Axle

Bearing, Rear Axle

12

Seal, Rr Axle Bearing Dust

Seal, Rr Axle Bearing Dust

13

Bolt, Housing Front Rh

Bolt, Housing Front Rh

14

Bolt, Housing Rear Rh

Bolt, Housing Rear Rh

15

Bolt, Housing Front Lh

Bolt, Housing Front Lh

16

Bolt, Housing Rear Lh

Bolt, Housing Rear Lh

17

Шайба

Шайба

18

Disc, Rear Brake

Disc, Rear Brake

19

Bolt, Disc

Bolt, Disc

20

Tire, Rear

Tire, Rear

21

Valve Assy, Wheel Rim (tr412)

Valve Assy, Wheel Rim (tr412)
