Rear fender (model k4) для квадроциклов Suzuki LT F500F VINSON 4x4 MANUAL (2006)

Москва и регионы России

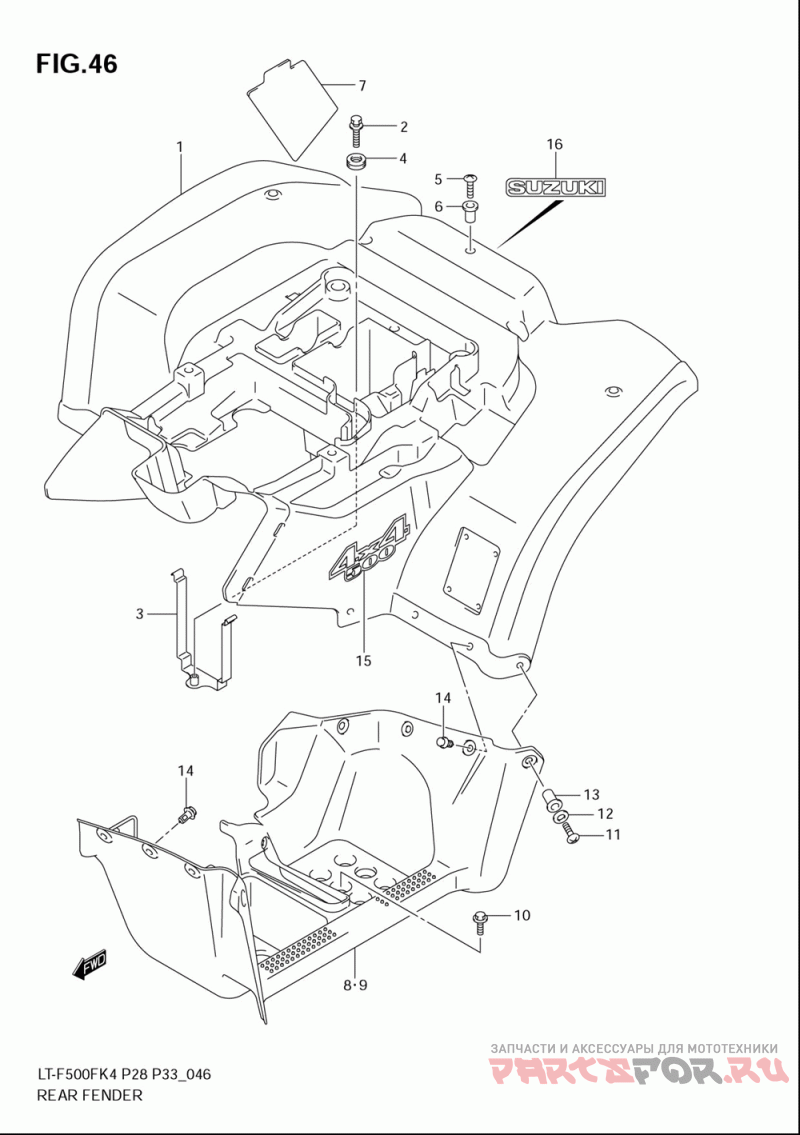

Rear fender (model k4)

Suzuki LT F500F VINSON 4x4 MANUAL

Rear fender (model k4)

#

oem код

название

цена

1-1

63111-03G20-YU1

Fender, Rear (yellow)

Fender, Rear (yellow)

1-2

63111-03G21-YT8

Fender, Rear (green)

Fender, Rear (green)

1-3

63111-03G21-YT9

Fender, Rear (red)

Fender, Rear (red)

2

Болт

Болт

3

Bracket, Rear Fender

Bracket, Rear Fender

4

Подушка

Подушка

5

Винт

Винт

6

.nut, Air Intk Inner Guide

.nut, Air Intk Inner Guide

7

Накладка

Накладка

8

63331-03GF0-291

Mudguard, Front Rh (black)

Mudguard, Front Rh (black)

9

63341-03GF0-291

Mudguard, Front Lh (black)

Mudguard, Front Lh (black)

10

Bolt, 6x16.5

Bolt, 6x16.5

12

Шайба

Шайба

14

Зажим

Зажим

15

68171-03G10-MV9

Emblem, Rear Fen

Emblem, Rear Fen

16

68171-03G20-20H

Emblem, Rear (silver)

Emblem, Rear (silver)

11

Винт

Винт

13

Гайка

Гайка
