Final bevel gear (rear)(~f.no.5saap41 67110000) для квадроциклов Suzuki LT-A700X KINGQUAD 4x4 (2006)

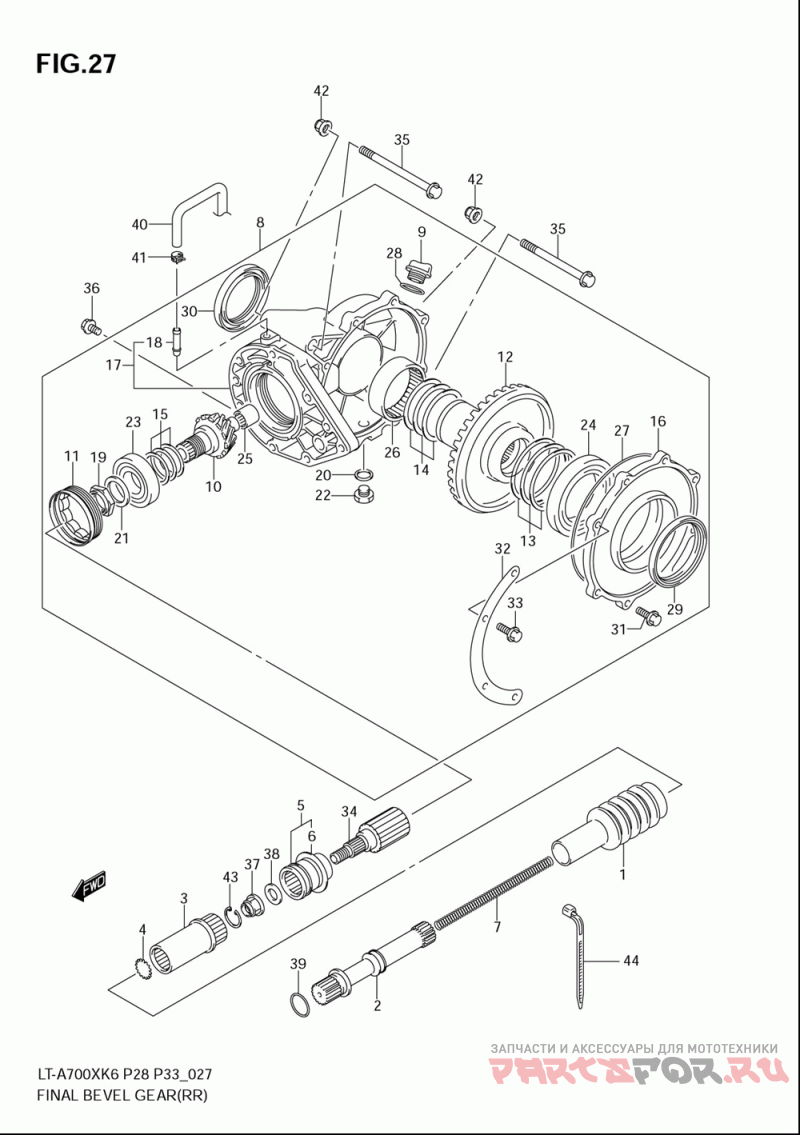

Final bevel gear (rear)(~f.no.5saap41 67110000)

Suzuki LT-A700X KINGQUAD 4x4

Final bevel gear (rear)(~f.no.5saap41 67110000)

oem код

название

цена

27153-31G10

Boot, Joint Shaft

27155-31G00

Shaft, Rear Propeller

27157-31G00

Joint, Rear Propeller

27158-31G00

Plate, Rear Prop Spring

27170-31G10

Coupling, Rr Prop Shaft

27592-31G10

.plate, Output Oil Seal

27192-31G00

Spring, Rear Propeller

27410-31G00

Case Assy, Rear Final Gear

09259-20008-XC0

Заглушка

27311-31G00

.gear, Rr Final Drive

27312-38F00

.stopper, Final Drive

27320-31G00

.gear, Rr Final Driven

27326-31810

.shim Set, Final Driven, L

27327-31810

.shim Set, Final Driven, R

27445-24810

.shim Set, Final Drive Gear

27451-31G00

.case, Rear Final Gear, L

27460-31G00

.case, Rear Final Gear, R

09364-08003

.pipe, Breather

09140-28006

.nut, Rear Final Drive

09168-14004

.gasket (14.1x18x1.5)

09181-28195

.washer, Rr Final Dr Gr

09247-14013

.plug, Oil Drain

09262-28023

.bearing, Final Drive Gear

09262-65001

.bearing, Final Driven, L

09263-20062

Bearing, Idle Shaft

09263-55003

.bearing, Final Driven, R

09280-00029

.o-ring, Bearing Case, L

09280-17003

Кольцо

09283-65001

.seal, Final Driven Gear, R (65x88x865x88x8)

09103-08197

.bolt, Rear Final Gr

27452-31G00

.plate, Rr Final Gr Cover

09103-08388

.bolt, Rr Final Gr Case

27594-31G00

Shaft, Rr Final Drive

09103-10148

Bolt (10x110)

09159-14010

Nut, Rr Prop Shaft Coup

09181-14002

Washer, Rear Prop Shaft

O-ring, Rr Propeller

Трубка,резина

Clamp, Breather Case

Гайка

Пружинное стопорное кольцо

09407-18402

Стяжка L-165

08331-4122A

Пружинное стопорное кольцо
