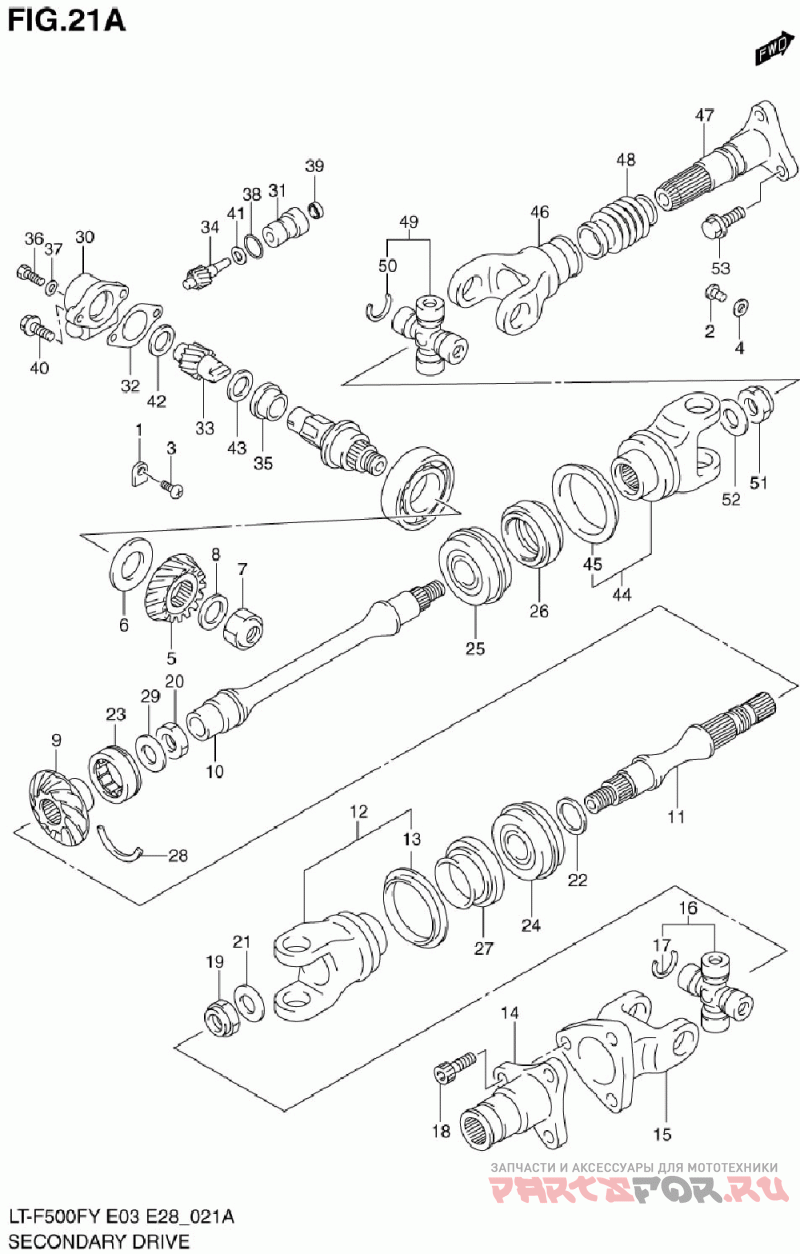

Secondary drive (model k1/k2)

Suzuki LT-F500F Quad Runner 4WD

Suzuki
#oem кодцена
1
24741-21A00
Retainer, Shift Cam Bearing
2
09125-06110
Screw, Shift Cam (6x12)
4
08211-06165
Retainer, Shift Cam
5
24911-44D11
Gear, Sec Drive Bevel Gr
6
24935-19810
Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
7
09140-20012
Гайка
8
09164-20007
Шайба
9
24921-44D10
Gear, Sec Driven Bevel
10
24960-44D60
Shaft, Sec Driven, Fr
11
24971-44D60
Shaft, Sec Driven Output Rr
12
27130-03G00
Yoke, Fr Drive Output
13
27592-38F00
.plate, Output
14
27150-38F00
Shaft, Propeller Rear
15
27161-38F11
Yoke, Prop Shaft Joint Rear
16
27200-19810
Joint Set, Universal Rr
17
09380-20016
.circlip
18
07130-1020B
Болт
19
09159-16003
Nut, Sec Driven Bevel Couplin
20
09159-22005
Nut, Sec Driven Gear
21
09160-16026
Washer, Fr Drive Output Yoke
22-1
09181-25051
Shim, Sec Driven Gear
22-2
09181-25052
Shim, Sec Driven Gear
22-3
09181-25053
Shim, Sec Driven Gear
22-4
09181-25054
Shim, Sec Driven Gear
22-5
09181-25162
Shim 0.8
22-6
09181-25056
Shim, Sec Driven Gear
22-7
09181-25164
Shim 0.9
22-8
09181-25058
Shim, Sec Driven Gear
22-9
09181-25167
Washer, 5th Drive
22-10
09181-25060
Shim, Sec Driven Gear
22-11
09181-25061
Shim, Sec Driven Gear
22-12
09181-25062
Shim, Sec Driven Gear
22-13
09181-25063
Shim, Sec Driven Gear
23
09263-30050
Brg, Sec Driven Gear, Mdl
24
09267-25014
Brg, Sec Driven Output Sft Fr (25x52x20.625x52x20.6)
26
09283-34008
Oil Seal, Driven Sft, Fr (34x52x934x52x9)
28
09390-50002
Ring, Sec Driven Brg, Mdl
29
08211-22365
Washer, Sec Driven Gear
30
26441-19B01
Housing, Odometer Gear
31
26442-19B00
Гильца
32
26451-19B12
Gasket, Odometer
33
26461-44D00
Gear, Odometer Drive
34
26471-44D00
Gear, Odometer Driven
35
26481-19B00
Spacer, Odometer Drive Gear
36
09135-06501
Болт
37
09168-06004
Прокладка (6.2x11x1.2)
38
09280-17004
O Ring, Center Shaft
39
09289-05002
Seal, Odometer (5x12x8)
40
09103-06201
Болт
41
08211-08151
Шайба
42
08211-15201
Шайба
43
08211-17241
Washer, Crankshaft Thrust
46-1
27140-03G00
Yoke, Rear Drive Output
47
27151-09F70
Вал гребного винта
48
27153-62021
Чехол защитный
53-1
01550-1020A
Bolt, Bal Sprocket
53-2
09103-10310
Bolt, Muf Body Support Rh
6
24935-03811
Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
