Front fender (model x/y) для квадроциклов Suzuki LT-F500F Quad Runner 4WD (2002)

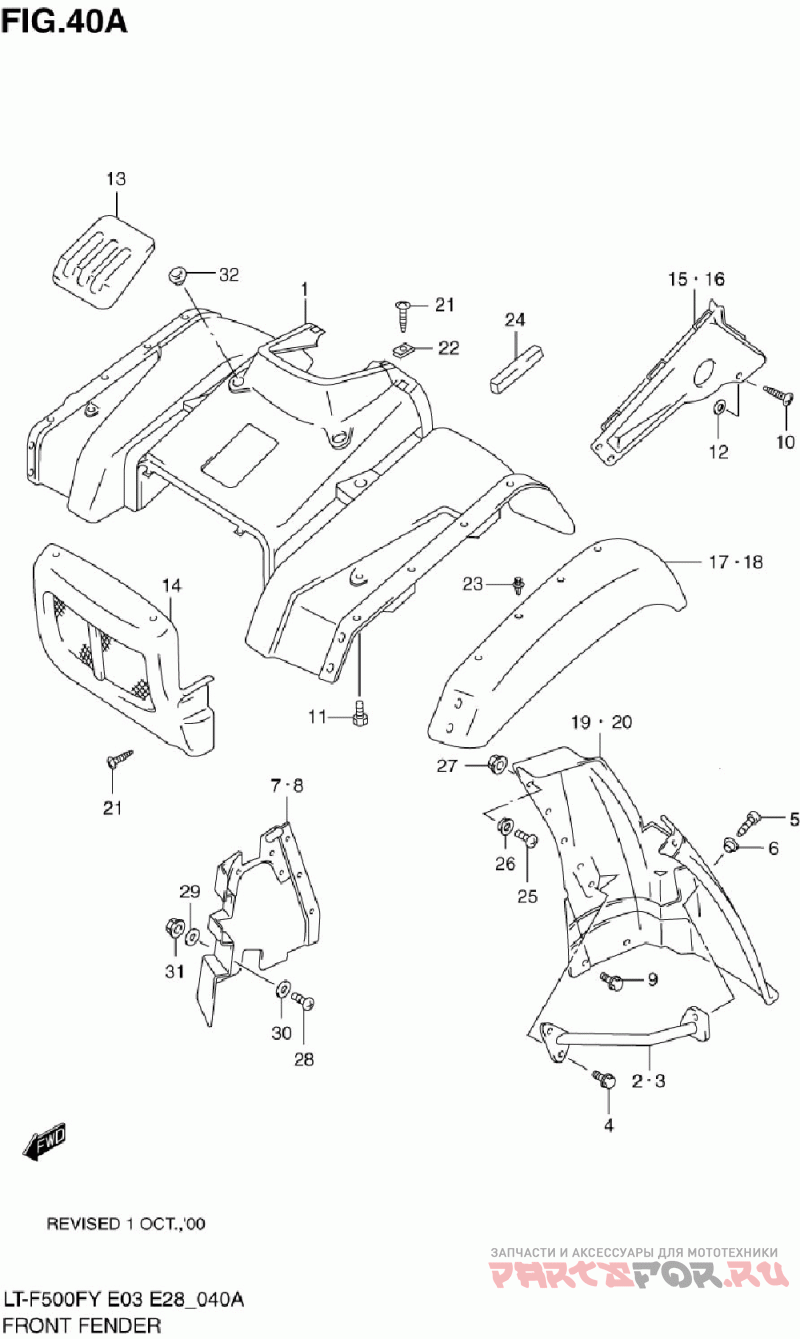

Front fender (model x/y)

Suzuki LT-F500F Quad Runner 4WD

oem код

название

цена

1-1

53111-09F02-Y9N

Fender, Front (green)

1-3

Fender, Front (red)

Brace, Fender Rh

Brace, Fender Lh

Винт

Винт

Проставка

Mudflap, Inner Rh

Mudflap, Inner Lh

Болт М6x12

Screw, Inner

11-1

09111-06066

Screw, Seat Lower Cover

11-2

09113-06001

Винт

53275-09FA0

Washer, Inner

13-1

53341-09F00-Y9N

Lid (green)

13-2

53341-09F00-Y9P

Lid (red)

53118-09F01-Y0J

Fender, Front Center (gray)

53112-09F00-Y0J

Cover, Front Fender Rh (gray)

53122-09F00-Y0J

Cover, Front Fender Lh (gray)

53331-09F00-Y0J

Mudguard, Front Rh (gray)

53332-09F00-Y0J

Mudguard, Front Lh (gray)

53311-09F00-Y0J

Mudflap, Fender Rh (gray)

53312-09F01-Y0J

Mudflap, Fender Lh (gray)

03241-1516A

Screw, Seat Tail Cover

Гайка

Clip, Tray

Cushion, Side Rh

Винт

Шайба

Гайка

Screw, Front Center

Шайба

Cap, Front Fender

Винт
