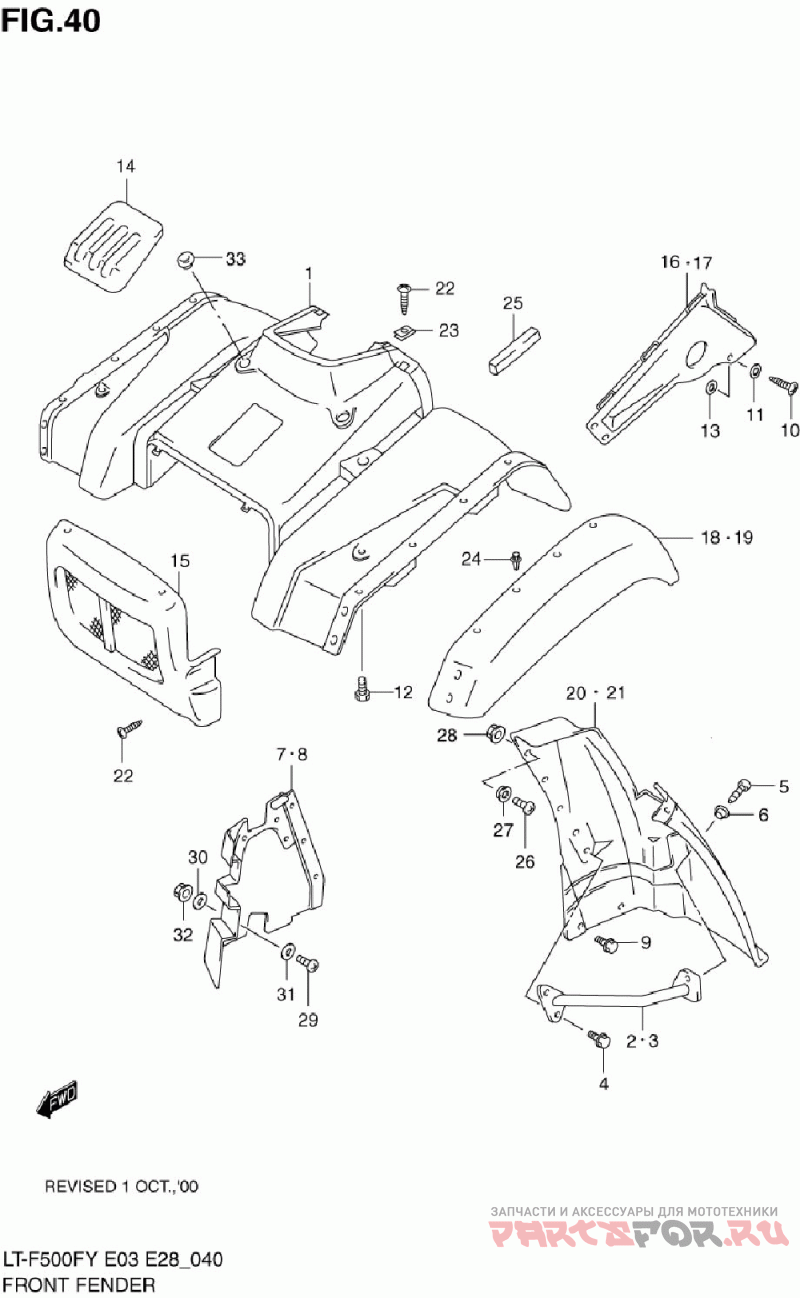

Front fender (model w)

Suzuki LT-F500F Quad Runner 4WD

Suzuki
#oem кодцена
1-1
53111-09F02-Y6H
Переднее крыло
1-2
53111-09F02-Y6K
Переднее крыло
2
53210-09F00
Brace, Fender Rh
3
53240-09F00
Brace, Fender Lh
4
01551-06203
Bolt, Brace
5
02142-1616B
Винт
6
09169-06064
Проставка
7
53411-09F01
Mudflap, Inner Rh
8
53421-09F01
Mudflap, Inner Lh
9
09111-06085
Болт М6x12
10
03242-05203
Screw, Inner
11
08322-0105A
Шайба
12
09111-06066
Screw, Seat Lower Cover
13
09169-08037
Шайба
14-1
53341-09F00-Y6H
Lid (gray)
14-2
53341-09F00-Y6K
Lid (orange)
15-1
53118-09F01-Y0J
Fender, Front Center (gray)
15-2
53118-09F01-Y6J
Fender, Front, Ce
16-1
53112-09F00-Y0J
Cover, Front Fender Rh (gray)
17-1
53122-09F00-Y0J
Cover, Front Fender Lh (gray)
17-2
53122-09F00-Y6J
Cover, Front Fender Lh (gray)
18-1
53331-09F00-Y0J
Mudguard, Front Rh (gray)
18-2
53331-09F00-Y6J
Mudguard, Front Rh (gray)
19-1
53332-09F00-Y0J
Mudguard, Front Lh (gray)
19-2
53332-09F00-Y6J
Mudguard, Front Lh (gray)
20-1
53311-09F00-Y0J
Mudflap, Fender Rh (gray)
20-2
53311-09F00-Y6J
Mudflap, Fender Rh (gray)
21-1
53312-09F01-Y0J
Mudflap, Fender Lh (gray)
21-2
53312-09F01-Y6J
Mud Flap, Front
22
03241-1516A
Screw, Seat Tail Cover
23
09148-05038
Гайка
24
09409-07333
Clip, Tray
25
94475-21E00
Cushion, Side Rh
26
09136-05038
Винт
27
09160-05046
Шайба
28
09159-05043
Гайка
29
09139-05037
Screw, Front Center
30
09160-08123
Шайба
33
09250-24004
Cap, Front Fender
16-2
53112-09F00-Y6J
Cover, Front Fender Rh (gray)
