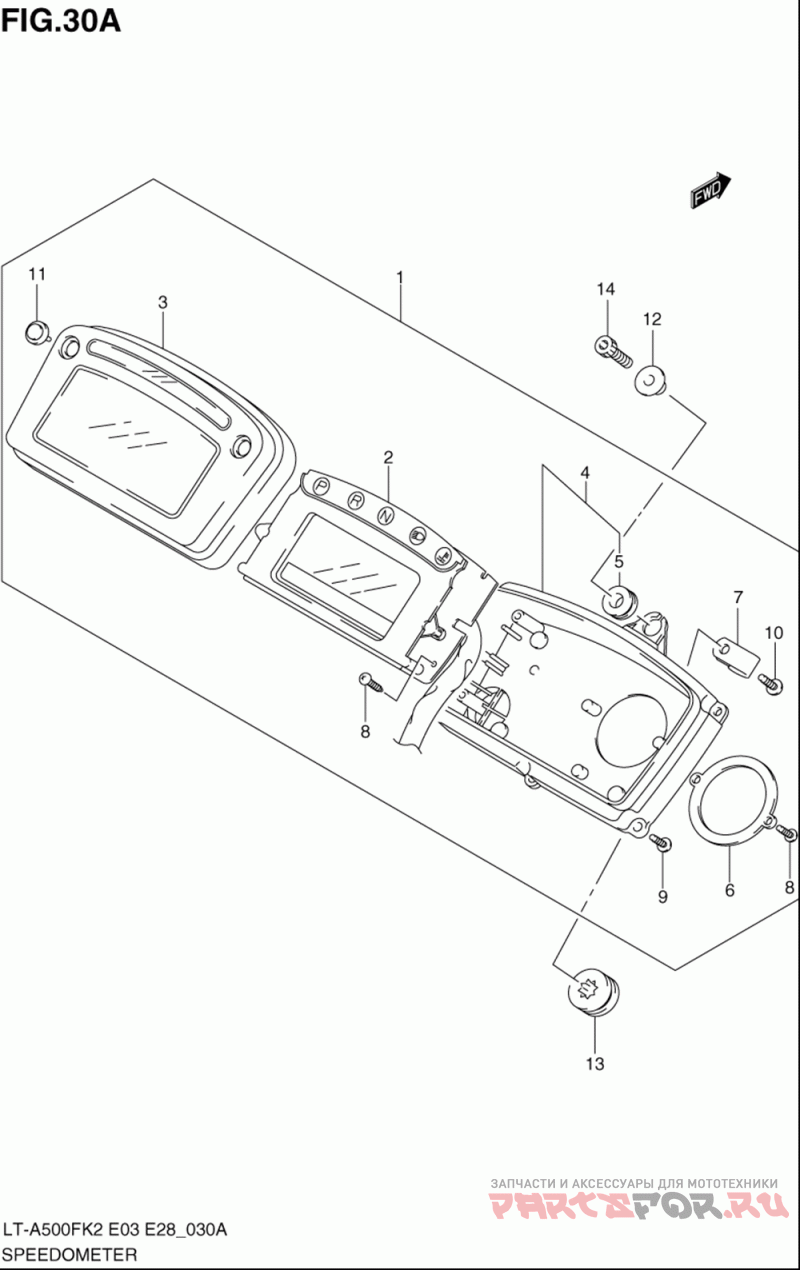

Speedometer (model k3)
Suzuki LT-A500F Vinson 4WD
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 34100-03G20 Спидометр | Спидометр | |
2-1 | 34120-03G20 .speedometer | .speedometer | |
3 | 34150-31G00 .case, Upper | .case, Upper | |
4 | 34111-03G60 .case, Lower | .case, Lower | |
5 | 34955-33E00 .cushion | .cushion | |
6 | 34128-03G00 .bracket | .bracket | |
7 | 34176-03G00 .clamp | .clamp | |
8 | 34149-31F10 .screw (3x14) | .screw (3x14) | |
9 | 34149-03G00 Винт (3x14) | Винт (3x14) | |
10 | 02142-0416A Винт | Винт | |
11 | 34124-24F00 .switch, Lever | .switch, Lever | |
12 | 34187-47F00 Проставка | Проставка | |
13 | 34955-13E00 Cushion, Speedometer | Cushion, Speedometer | |
14 | 07130-0520B Болт | Болт |
