Трансмиссия 1 для квадроциклов Suzuki LT-A400F Eiger Auto 4WD (2002)

Москва и регионы России

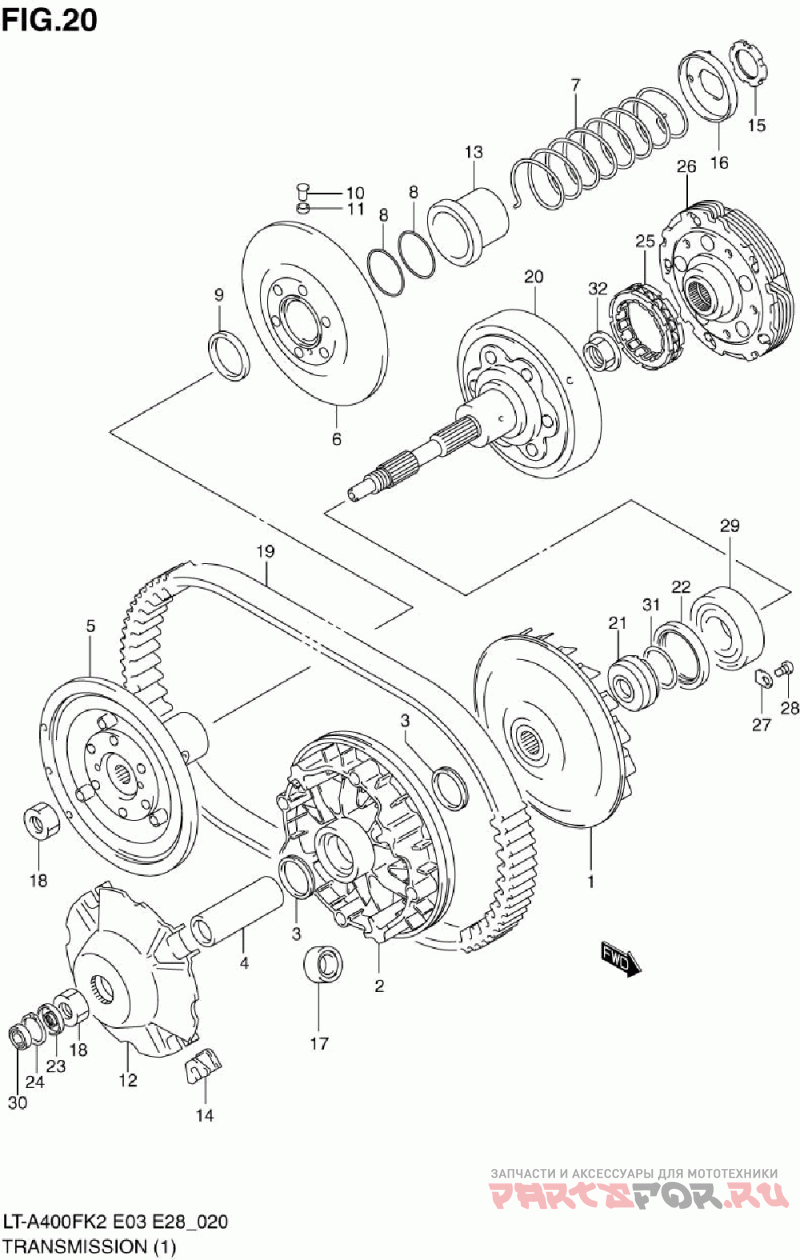

Трансмиссия 1

Suzuki LT-A400F Eiger Auto 4WD

Трансмиссия 1

#

oem код

название

цена

1

Face, Fixed Drive

Face, Fixed Drive

2

Face, Movable Drive

Face, Movable Drive

3

Seal, Movable Drive

Seal, Movable Drive

4

Spacer, Movable Drive

Spacer, Movable Drive

5

Face, Fixed Driv

Face, Fixed Driv

6

Face, Movable Dr

Face, Movable Dr

7

Spring, Movable Driven

Spring, Movable Driven

8

O-ring, Movable Driven

O-ring, Movable Driven

9

Seal, Movable Driven

Seal, Movable Driven

10

Pin, Movable Driven

Pin, Movable Driven

11

Spacer, Movable Driven Pin

Spacer, Movable Driven Pin

12

Plate, Movable Drive

Plate, Movable Drive

13

Sheet, Movable Driven

Sheet, Movable Driven

14

Damper, Movable Drive Plate

Damper, Movable Drive Plate

15

Nut, Driven Pulley Spring

Nut, Driven Pulley Spring

16

Holder, Movable Driven

Holder, Movable Driven

17

Roller, Movable Drive

Roller, Movable Drive

18

Nut, Face

Nut, Face

19

V-belt, Drive

V-belt, Drive

20

Housing, Clutch

Housing, Clutch

21

Spacer, Fixed Drive Lh

Spacer, Fixed Drive Lh

22

Seal, Clutch Housing

Seal, Clutch Housing

23

Seal, Clutch Housing Rh

Seal, Clutch Housing Rh

24

Пружинное стопорное кольцо

Пружинное стопорное кольцо

25

Clutch, Pri Drive One Way

Clutch, Pri Drive One Way

26

Clutch Assy, Shoe

Clutch Assy, Shoe

27

Retainer, Shift Cam Bearing

Retainer, Shift Cam Bearing

28

.screw, 6x12

.screw, 6x12

29

Bearing (40x80x18)

Bearing (40x80x18)

30

Подшипник ,прав.

Подшипник ,прав.

31

.o Ring, Intake Pipe

.o Ring, Intake Pipe

32

Nut, Shoe Clutch

Nut, Shoe Clutch
