Final bevel gear (rear)(model k1/k2) для квадроциклов Suzuki LT-F500F Quad Runner 4WD (2001)

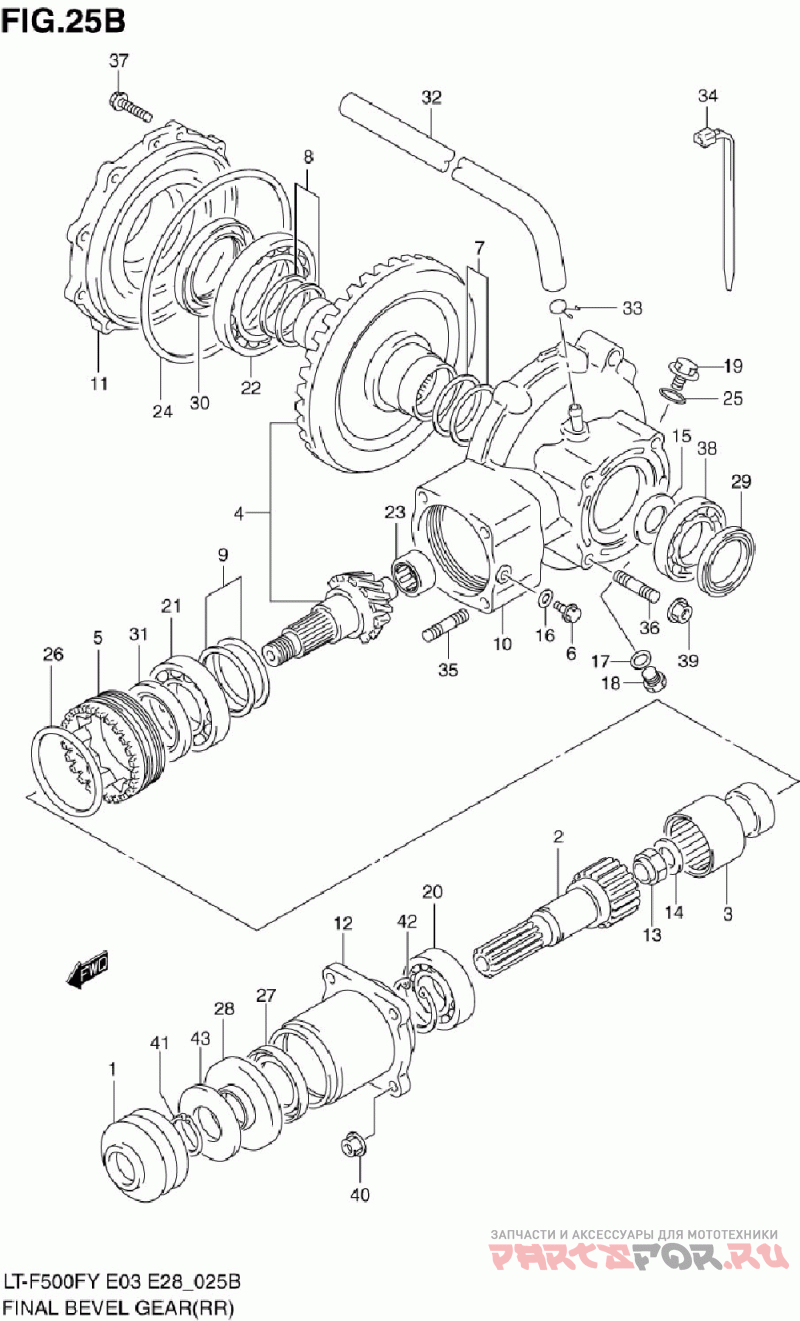

Final bevel gear (rear)(model k1/k2)

Suzuki LT-F500F Quad Runner 4WD

oem код

название

цена

27153-44D70

Boot, Rr Final Drive Shaft

27155-44D62

Shaft, Rear Final

27172-18B70

Coupling, Rear Final Drive

27300-09810

Gear Set, Final Bevel

27312-09F70

Stopper, Rear Final

27313-18A00

Pin, Bearing Stopper

27326-09810

.shim Set, Final Driven Lh

27326-18810

.shim Set, Final Driven Rh

27445-24810

.shim Set, Final Drive Gear

27450-09F50

Case, Rear Final Gr

09159-16003

Nut, Sec Driven Bevel Couplin

09160-16029

Washer, Drive Shaft

08211-40505

.washer, Final Driven Lh

09168-06023

Шайба

09168-14004

.gasket (14.1x18x1.5)

Plug, Oil Drain

.plug, Oil Filler

Bearing, Rear Sft

.bearing, Final Drive Gear

09262-45012

.bearing, Final Driven Rh

09263-20062

Bearing, Idle Shaft

09280-00029

.o-ring, Bearing Case, L

09280-18004

O Ring (d:2.4, Id:17.8)

09280-69001

O Ring (d:3.1, Id:68.5)

27156-09F50

Seal, Final Driven Brg Oil

27590-09F50

Collar, Output Oil Seal

09283-38009

Seal, Final Driven Gear Oil L

09283-42011

.oil Seal, Final Driven Rh

09283-40021

Oil Seal, Final Drive

09352-70103-00B

Hose, Water Drain (l:2000->670

Clamp, Breather Case

Стяжка L-165

Шпилька

Болт

.bearing

Пружинное стопорное кольцо

08331-4162A

Пружинное стопорное кольцо

09181-30139

Washer, Shaft, Lh

27461-09F50

Case, Rear Final Driven,rh

27471-09F50

Housing, Rr Final Drive

09108-10135

Stud Bolt, Brg Case,lh

09159-10105

Nut, Rr Lh Case

08319-31087

Гайка
