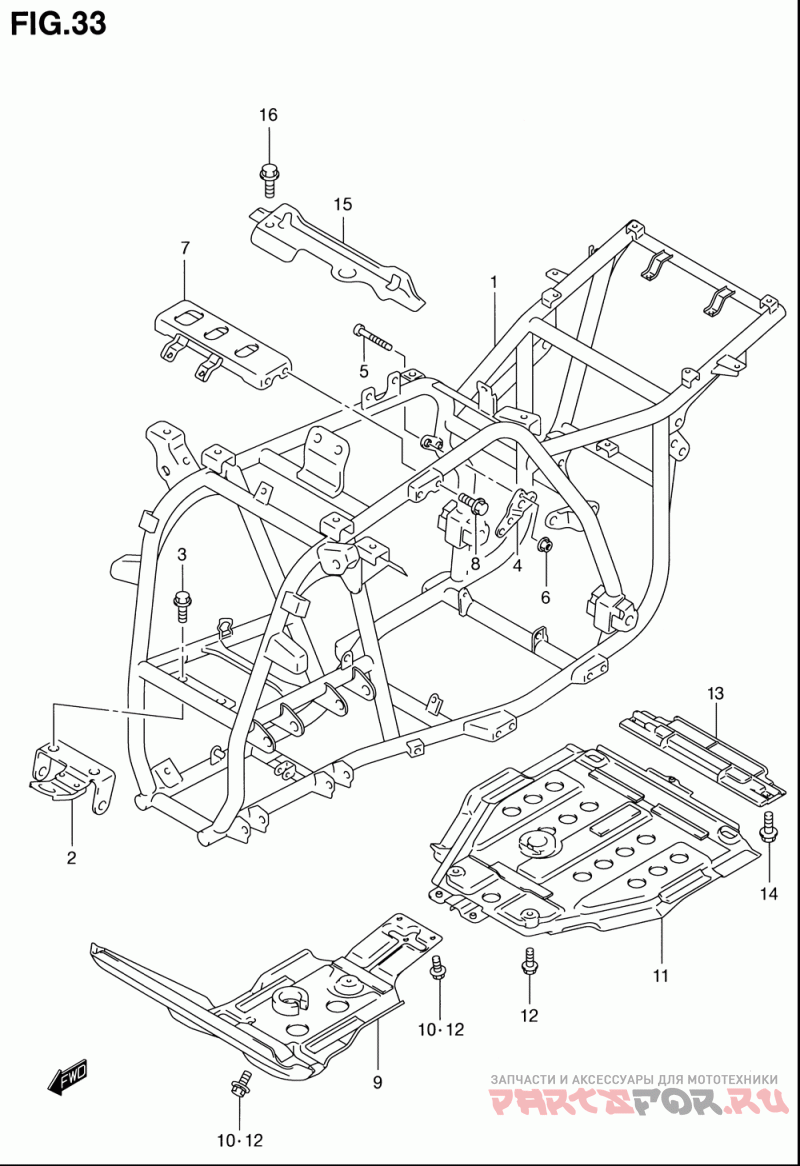

Рама для квадроциклов Suzuki LT-A500F Quad Master (2001)

Москва и регионы России

Рама

Suzuki LT-A500F Quad Master

Рама

#

oem код

название

цена

1-1

41100-09FB0-019

Frame(black)

Frame(black)

1-2

41100-09FD0-019

Frame Comp

Frame Comp

2

Plate, Diff Case Fitting

Plate, Diff Case Fitting

3

Bolt, Seat Lock Brkt

Bolt, Seat Lock Brkt

4

Plate, Engine Mount Rh

Plate, Engine Mount Rh

5

Болт

Болт

6

Гайка

Гайка

8

Plug, T/m Oil Drain

Plug, T/m Oil Drain

9-1

Protector, Front

Protector, Front

9-2

Protector, Front

Protector, Front

10

Болт М6x12

Болт М6x12

14-2

Болт (6х14)

Болт (6х14)

15

Plate, Battery

Plate, Battery

7

Bracket, Engine Mount Upper

Bracket, Engine Mount Upper

11

Защита двигателя

Защита двигателя

12-1

Bolt (model Ymodel K1)

Bolt (model Ymodel K1)

13

Cover, Engine Rear

Cover, Engine Rear
