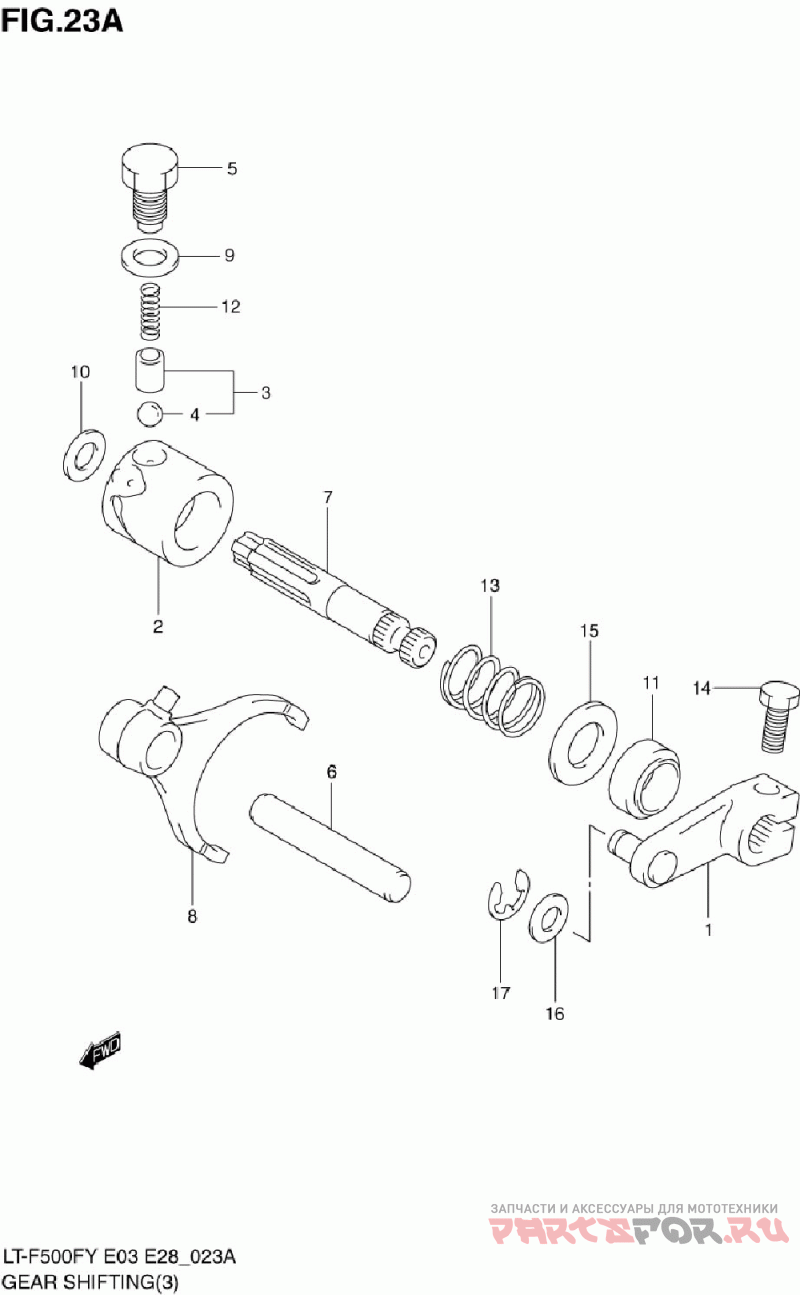

Gear shifting (3)(model k1/k2)

Suzuki LT-F500F Quad Runner 4WD

Gear shifting (3)(model k1/k2)

#

oem код

название

цена

1

Arm, Select

Arm, Select

2

Cam, Differential Locking

Cam, Differential Locking

3

Стопор

Стопор

4

Шарик

Шарик

5

Housing, Cam Stopper

Housing, Cam Stopper

6

Shaft, Fork

Shaft, Fork

7

Shaft, Cam

Shaft, Cam

8

Fork, Diffrential Locking

Fork, Diffrential Locking

9

.gasket (14.1x18x1.5)

.gasket (14.1x18x1.5)

10

.shim

.shim

11

Oil Seal (12x22x9)

Oil Seal (12x22x9)

12

Пружина

Пружина

13

Пружина

Пружина

14

Bolt, Gear Shift Link Arm

Bolt, Gear Shift Link Arm

15

Шайба

Шайба

16

Washer, Seat Damper Upper

Washer, Seat Damper Upper

17

E Ring, Pinion

E Ring, Pinion
