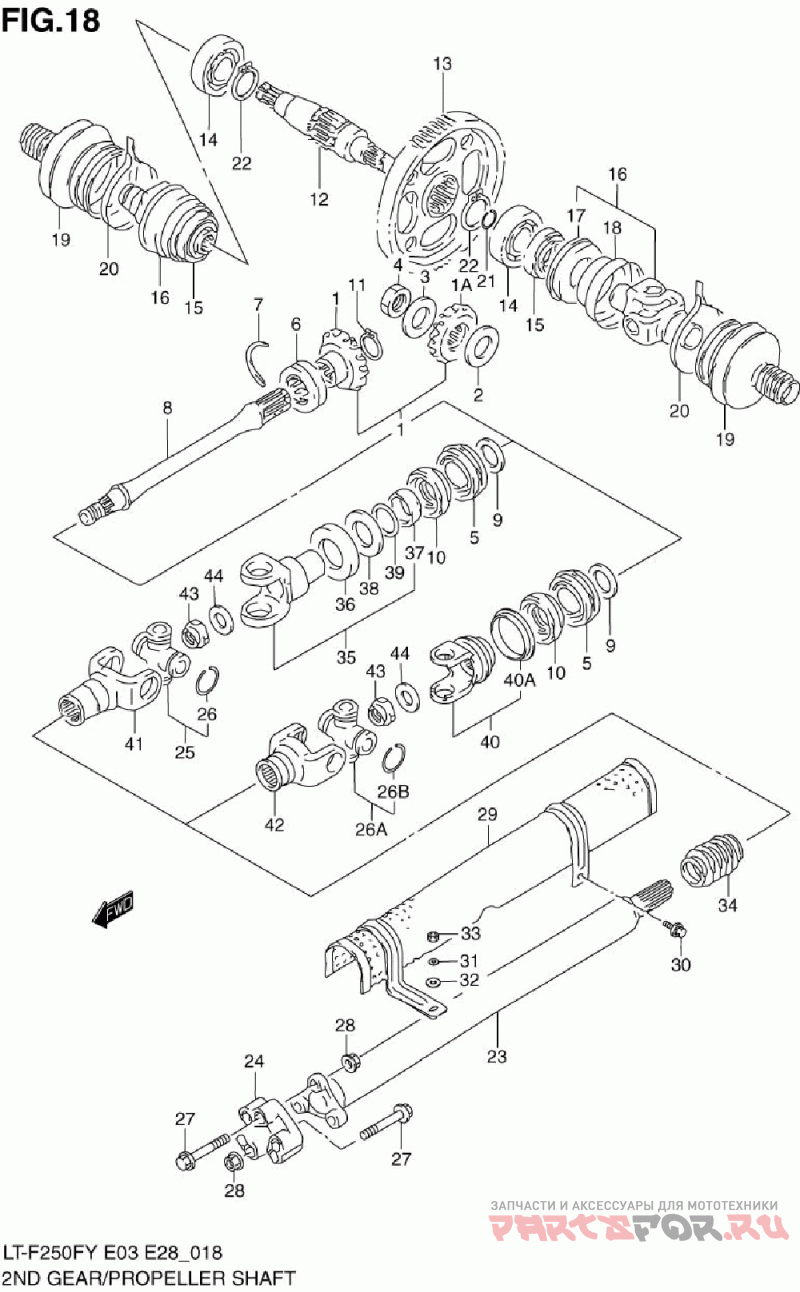

Secondary gear - propeller shaft

Suzuki LT-F250F Quad Runner 4WD

Suzuki
#oem кодцена
2
24935-19810
Shim Set, Sec Drive Bevel Gr (t:0.30/0.35/0.90/0.95/1.00/1.05/1.10/1.15)
3
09164-20007
Шайба
4-1
09140-20001
Гайка
4-2
09140-20018
Гайка
5
09267-25014
Brg, Sec Driven Output Sft Fr
6
09263-30050
Brg, Sec Driven Gear, Mdl
7
09390-50002
Ring, Sec Driven Brg, Mdl
8
24961-19B01
Shaft, Secondary Output
9-1
09181-25186
Shim (t:0.50)
9-2
09181-25051
Shim, Sec Driven Gear
9-3
09181-25052
Shim, Sec Driven Gear
9-4
09181-25053
Shim, Sec Driven Gear
9-5
09181-25054
Shim, Sec Driven Gear
9-6
09181-25162
Shim 0.8
9-7
09181-25056
Shim, Sec Driven Gear
9-8
09181-25164
Shim 0.9
9-9
09181-25058
Shim, Sec Driven Gear
9-10
09181-25167
Washer, 5th Drive
9-11
09181-25060
Shim, Sec Driven Gear
9-12
09181-25061
Shim, Sec Driven Gear
9-13
09181-25062
Shim, Sec Driven Gear
9-14
09181-25063
Shim, Sec Driven Gear
10
09283-34008
Oil Seal, Driven Sft, Fr
11
08331-3124A
Пружинное стопорное кольцо
12
27551-19B10
Shaft, Rear Final Driven
13
27541-19B10
Gear, Driven (nt:62)
14
09262-25073
Bearing (25x62x17)
16-1
27501-19B80
Joint, Rear Final Output
17-1
27592-19B80
.cover, Universal Joint
18
27593-19B70
.cover, Universal Joint
19
27153-19B70
Чехол защитный
20
44123-60A00
Clamp, Universal Joint
21
09381-24001
Circlip, 2nd Drive
22
08331-3140A
Пружинное стопорное кольцо
23
27150-19B00
Вал гребного винта
24
27170-19B00
Муфта
25
27200-73813
Joint Set, Universal Rr
26
09380-25005
.circlip
26A
27200-19810
Joint Set, Universal Rr
26B
09380-20016
.circlip
27
01500-1045A
Болт
28
08316-1010B
Гайка
29-1
27190-19B71
Протектор
30
01550-0612A
Болт
31
08321-0106A
Шайба-замок
32
09160-06128
Washer (6.5x15x1.6)
33
08310-0006A
Nut, No.1
34
27153-62021
Чехол защитный
35
27130-19B10
Yoke, Fr Drive Bevel Gr
36
09165-30003
.plate
37
27591-19B01
.collar
38
27592-19B00
.plate, Oil Seal
39
09280-28007
.o Ring (d:1.0, Id:28)
40
27130-03G00
Yoke, Fr Drive Output
40A
27592-38F00
.plate, Output
41
27140-19B00
Yoke, Propeller Shaft Joint
42-1
27140-03G00
Yoke, Rear Drive Output
43
09159-16003
Nut, Sec Driven Bevel Couplin
44
09160-16026
Washer, Fr Drive Output Yoke
1
24911-19B00
Gear, Drive Bevel
1A
24921-19B00
Gear, Driven Bevel
2
24935-03811
Shim Set, Sec Drive Bevel Gr (t:0.30/0.35/0.90/0.95/1.00/1.05/1.10/1.15)
