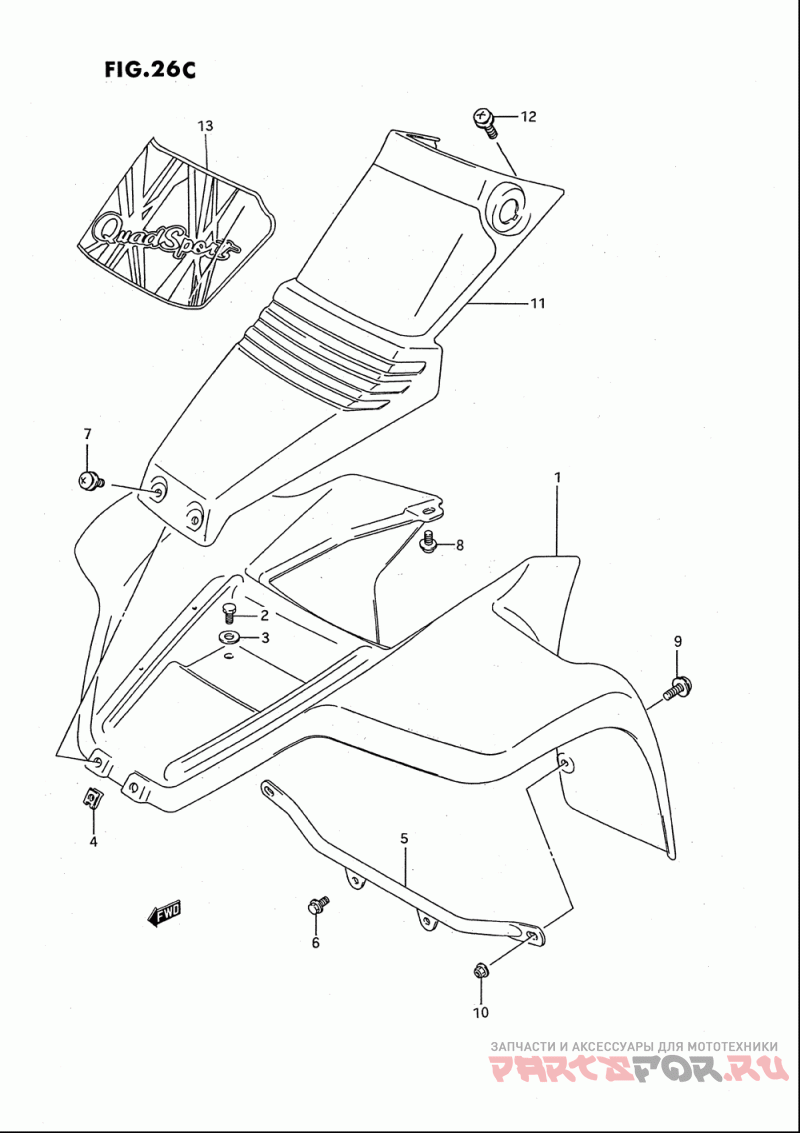

Front fender (model s)
Suzuki LT80 QUADSPORT
| # | oem код | название | цена |
|---|---|---|---|
1 | 53111-40B01-14L Fender Front | Fender Front | |
2 | 01500-0816B Болт | Болт | |
3 | 09160-08127 Seat Washer7 | Seat Washer7 | |
4 | 53141-19A00 Nut Fr Fender | Nut Fr Fender | |
5 | 53210-40B00-019 Brace Comp, Fron | Brace Comp, Fron | |
6 | 01550-0612A Болт | Болт | |
7 | 09136-06017 Screw 6x16 | Screw 6x16 | |
8 | 09136-06004 Screw 6x12 W/wa | Screw 6x12 W/wa | |
9 | 09136-06022 Screw, 6x20 | Screw, 6x20 | |
10 | 08319-3106A Гайка | Гайка | |
11 | 53118-40B00-25Y Cover, Front Fen | Cover, Front Fen | |
12 | 09136-06004 Screw 6x12 W/wa | Screw 6x12 W/wa | |
13 | 68155-40B60-D0L Tape, Fr Fender | Tape, Fr Fender |
