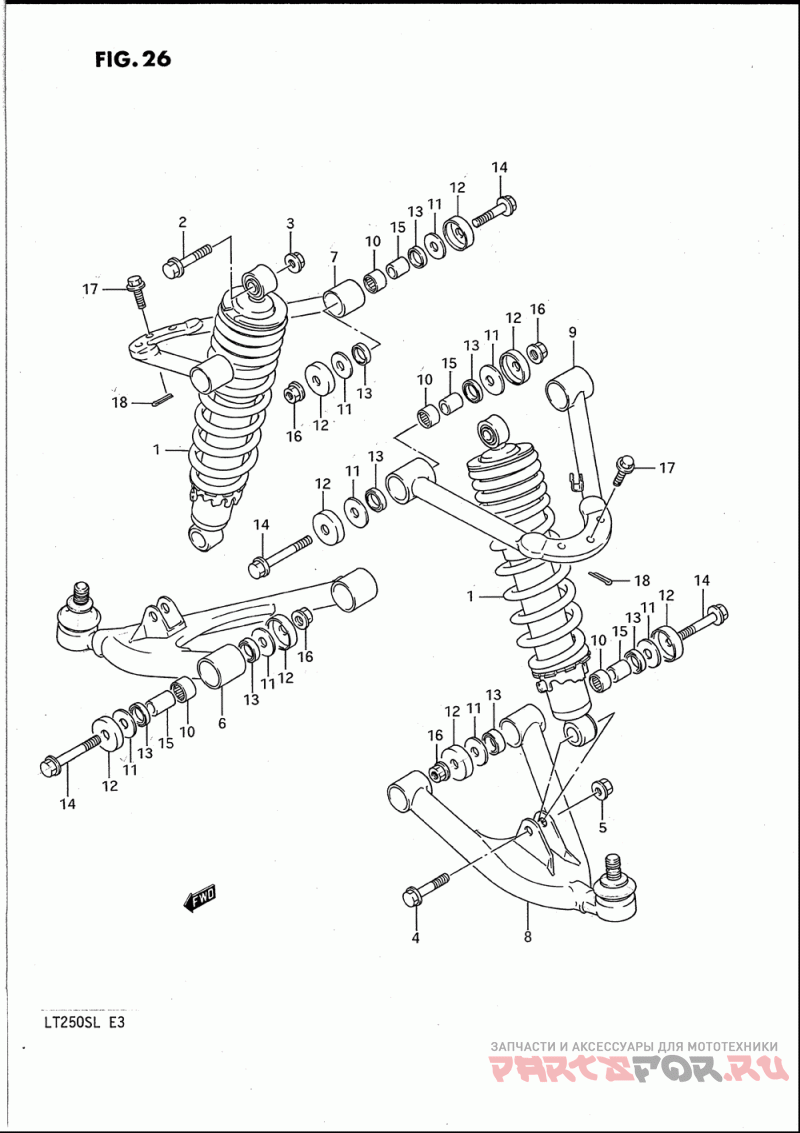

Suspension arm
Suzuki LT250S Quad Sport 1989-1990
| # | oem код | название | цена |
|---|---|---|---|
3 | 08319-31107 Гайка | Гайка | |
4 | 09103-10126 Болт | Болт | |
5 | 08319-31107 Гайка | Гайка | |
6 | 52410-25C00-14L Arm Comp, Suspe | Arm Comp, Suspe | |
11 | 08211-10281 Шайба | Шайба | |
12 | 52454-43B00 Seal Suspension | Seal Suspension | |
13 | 09285-17001 Oil Seal Rr Swi | Oil Seal Rr Swi | |
14 | 09103-10247-XC0 Bolt, 10x77 | Bolt, 10x77 | |
15 | 52455-43B00 Spacer Suspensi | Spacer Suspensi | |
16 | 08319-31107 Гайка | Гайка | |
17 | 09103-08503-XC0 Bolt, 8x30 | Bolt, 8x30 | |
18 | 04111-2020A Штифт | Штифт |
