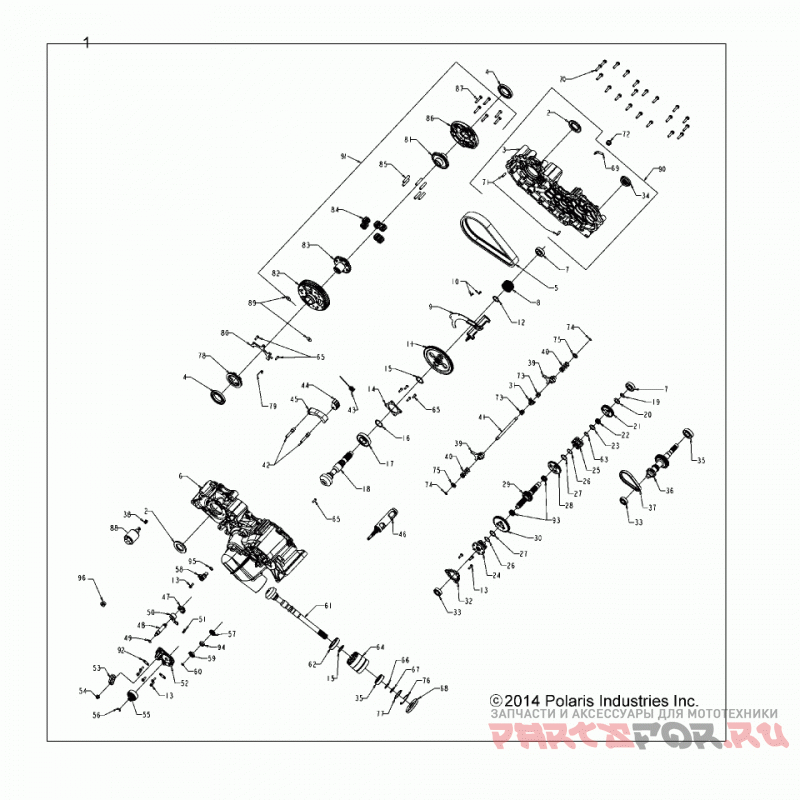

Drive train, main gearcase - a21sde57k4 (49atvgearcase1333274)

Polaris SPORTSMAN 570 TOURING EPS EU 3PC (A21SDE57K4)

Polaris
#oem кодцена
1
1334090
ASM-TRANSMISSION,DIFF,TURF [INCL. ALL]
10
3233749
SCREW, TAPPING TORX, PH 11902 X.50
11
3234062
GEAR OUTPUT 91T, HRC
12
3233699
RING RETAINING, IRR 7200-118
13
3234247
SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75
14
3234063
COVER, BEARING, CENTER DRIVE
15
3233364
RING, RETAINING, SHAFT, DIA. 1.375
16
3234271
SHIM, 1.700 X 1.385
17
3234065
BEARING, BALL 6207 C3 35MMX72MMX17MM
18
3234263
PINION, CENTER DRIVE, 13T
19
3234067
RING, RETAINING BASIC, EXTERNAL, .787 SHAFT
2
3234300
SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315
20
3233176
WASHER THRUST, 1.270 X 0.793 X 0.065
21
3236032
GEAR, HELICAL-35T
22
3233009
BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10
23
3233855
WASHER, 1.250 X 0.876 X 0.05
24
3234257
ENGAGEMENT DOG, 6-FACE L/P
25
3234258
DOG, ENGAGEMENT, 6 FACE
26
3233306
RING, RETAINING BASIC EXT 0.938
27
3234248
WASHER, THRUST 1.300 X 0.995 X 0.065
28
3234290
SPROCKET, 38T, 6 FACE
29
3234280
SHAFT, REVERSE, 26T
3
3234260
COVER, LH MACH
30
3234291
GEAR, 33T, 6 FACE
31
3234073
COLLAR, SHIFT,
32
3233915
PLATE, PARK, 12 FACE
33
3234274
BEARING, BALL 6203 17 X 40 X 12
34
3234851
SEAL, TRIPLE LIP VITON HELIX 30 X 47
35
3233019
BEARING, BALL 6205 C3 25 X 52 X 15
36
3235526
SHAFT, 39T INPUT HELICAL
37
3234264
SILENT CHAIN, .25P X 0.4 W X 50L
38
3234277
SPRING, COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE
39
3234077
Вилка
4
3234275
BEARING, BALL 6010 C3 50 X 80 X 10
40
3234078
SPRING, COMPRESSION, .92 O.D. X 2.000
41
3235542
RAIL, SHIFT SHAFT
42
3233432
PIN, TENSIONER
43
3233431
Пружина
44
3233434
CAM, CHAIN, TENSIONER
45
3233433
SHOE, CHAIN TENSIONER
46
3234360
DRUM, SHIFT MACH
47
3233832
SWITCH, ROTARY, 6 PIN
48
3233831
Вал
49
3233828
O-RING, -014 VITON
5
3234057
CHAIN, SILENT, 17 WIDE X 1.0 X 86p
50
3233829
PAWL, DETENT
51
3234578
SPRING, COMPRESSION 0.36 O.D. X 1.125
52
3234188
COVER, SECTOR GEARS, MACHINED
53
3234584
BELLCRANK, .510 HOLE, 92 ~
54
3233961
NUT, LOCK, HEX FLANGE NYLON 5/16-24
55
7661999
SWITCH, ROTARY , 2 PIN RESISTIVE
56
3233834
RING, RETAINING BASIC EXTERNAL
57
3233839
GEAR, SECTOR, 16T
58
4013908
Sensor, Speed, Trans.
59
3233909
STAR, DETENT
6
3236313
CASE, RH, MACH
60
3233836
O-RING, -012 VITON
61
3234262
GEAR, 13T SNORKEL,
62
3233265
BEARING, BALL 6007 C3 35 X 62 X 14
63
3234336
RING, RETAINING, BASIC EXTERNAL DIA 0.84
64
3234278
TUBE, SNORKEL MACHINED
65
3234086
SCREW, TORX TRUSS HD 43834 X 0.75
66
3234272
SHIM, 1.180 OD X 0.995 ID
67
3233106
RING, RETAINING BASIC, EXTERNAL 0.984
68
3234113
SEAL, TRIPLE LIP VITON 25 X 80 X 10
69
3234230
TUBE, VENT 90 -1/4 INCH HOSE
7
3233018
BEARING, BALL 6204 20 X 47 X 14
70
3234114
SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25
71
3234244
PIN, DOWEL 5/16 X 1.0
73
3234089
SPRING, COMPRESSION, 0.46 I.D. X 0.73
74
3234090
RING, RETAINING BASIC, EXTERNAL 0.428
75
3234091
WASHER, CUP
76
3234269
RING, RETAINING BASIC, INTERNAL 2.047
77
3234273
SHIM, 2.040 OD X 1.63 ID
78
3234928
DOG, ENGAGEMENT, 6-FACE
79
3234276
SPRING, TORSION, RETURN
8
3234060
SPROCKET, 19T, 1.00
80
3234285
FORK, PIVOT SHIFT, REAR DIFF
81
3234363
SIDE, GEAR 36T, SUBASSEMBLY
82
3234470
Carrier, Subassembly
83
3234362
SIDE, GEAR 36T DISCONNECT, SUBASSEMBLY
84
3234469
SUBASSEMBLY, PLANET GEAR [INCL. BUSHING]
85
3234238
PIN, DOWEL 10 X 45
86
3234471
Cover, Subassembly
87
3234267
SCREW, CAP HH 5/16-24 X 1.50
88
3235478
SOLENOID
89
3234268
WASHER, FENDER, .281 X 1.00 X 0.047
9
3234061
DEFLECTOR, OIL
90
3236312
SUBASSEMBLY, PDS LH COVER
91
3235594
CARRIER SUBASSEMBLY LOCKING DIFFERENTIAL 1 INCH PDS
92
3235350
BRACKET, WIRE HARNESS
93
3233103
BEARING, NEEDLE 25 X 29 X 10
94
3235243
Disc, Lockout
95
3233840
O-RING, -113 VITON
96
3233794
MAGNETIC PLUG, 3/4-16 INTERNAL HEX
