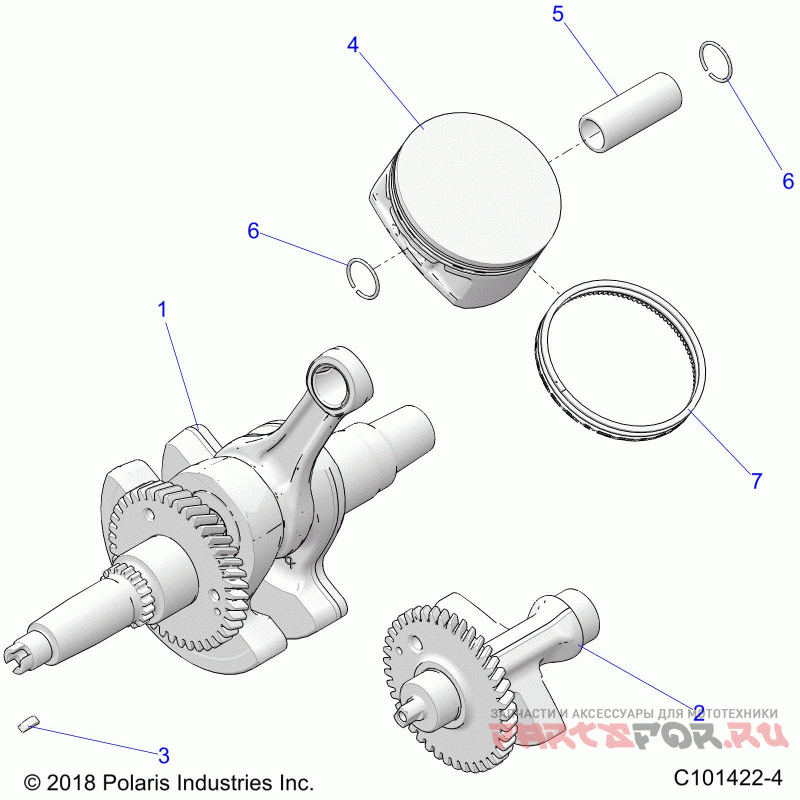

Engine, crankshaft, piston and balance shaft - a21see57a1 / a3 / a5 / a7 / a9 / b1 / b3 / b5 / b7 / b9 (c101422-4)
Polaris SPORTSMAN 570 EPS (A21SEE57A1/A3/A5/A7/A9/B1/B3/B5/B7/B9)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2206356 Деталь K-CRANKSHAFT 570 | Деталь K-CRANKSHAFT 570 | |
2 | 1204515 Деталь ASM., BALANCE SHAFT | Деталь ASM., BALANCE SHAFT | |
3 | 7721122 Деталь KEY,WOODRUFF(10) | Деталь KEY,WOODRUFF(10) | |
4 | 2204960 Деталь KIT - ASM., PISTON, 99MM, STANDARD [INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET] | Деталь KIT - ASM., PISTON, 99MM, STANDARD [INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET] | |
5 | 3022291 Деталь PIN-PISTON,22X12.8X56.6MM | Деталь PIN-PISTON,22X12.8X56.6MM | |
6 | 7710479 Деталь RING-RTNG,RND,22.0X1.6,0600102 | Деталь RING-RTNG,RND,22.0X1.6,0600102 | |
7 | 2204733 Деталь KIT, RINGS, PISTON (STANDARD) [INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING] | Деталь KIT, RINGS, PISTON (STANDARD) [INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING] |
