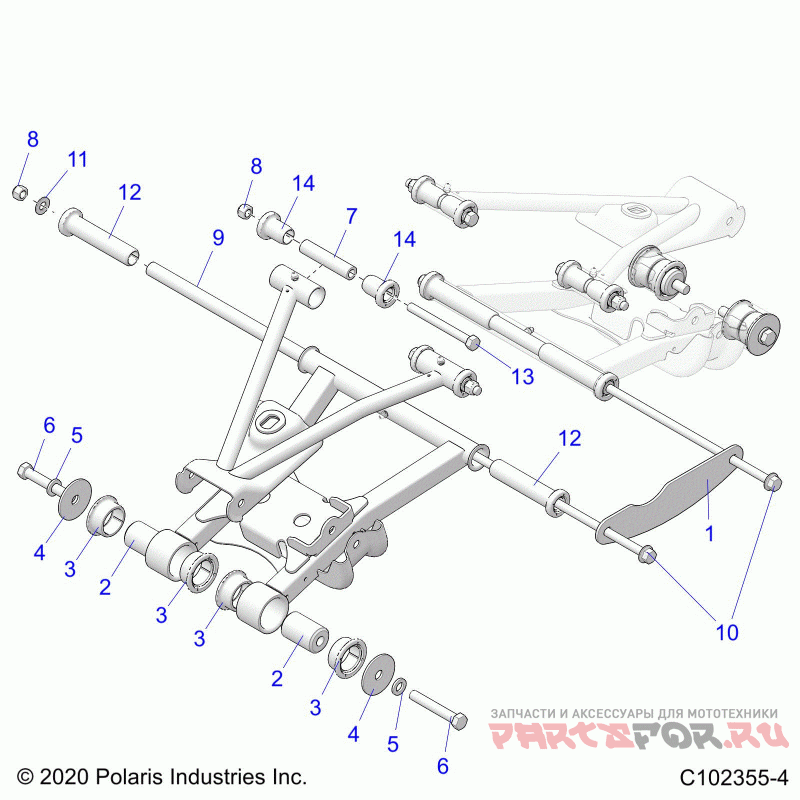

Suspension, rear control arm mounting - a21s6e57a1 / 3a1 (c102355-4)

Polaris SPORTSMAN 570 6X6 (A21S6E57A1/3A1)

Suspension, rear control arm mounting - a21s6e57a1 / 3a1 (c102355-4)

#

oem код

название

цена

1

Strap, Gearcase, Rear, Black

Strap, Gearcase, Rear, Black

10

SCR-3/8-24X12.25 FLG HX GR8-Y

SCR-3/8-24X12.25 FLG HX GR8-Y

11

WASHER-3/8 FW SAE STL THRU-HRD

WASHER-3/8 FW SAE STL THRU-HRD

12

BUSHING-A-ARM,LONG,102.36MM

BUSHING-A-ARM,LONG,102.36MM

13

SCR-3/8-24X3 3/4 HX CP GR5-Y

SCR-3/8-24X3 3/4 HX CP GR5-Y

14

Bushing, A-Arm., Short, Black

Bushing, A-Arm., Short, Black

2

BUSHING, BEARING CARRIER

BUSHING, BEARING CARRIER

3

BUSHING, CONTROL, LOWER, BLACK

BUSHING, CONTROL, LOWER, BLACK

4

Шайба

Шайба

5

Гровер

Гровер

6

Винт

Винт

7

Shaft, A-Arm., Short

Shaft, A-Arm., Short

8

NUT-3/8-24 HEX LOC,GR8

NUT-3/8-24 HEX LOC,GR8

9

TUBE-PIVOT,.625ODX.385IDX11.12

TUBE-PIVOT,.625ODX.385IDX11.12
