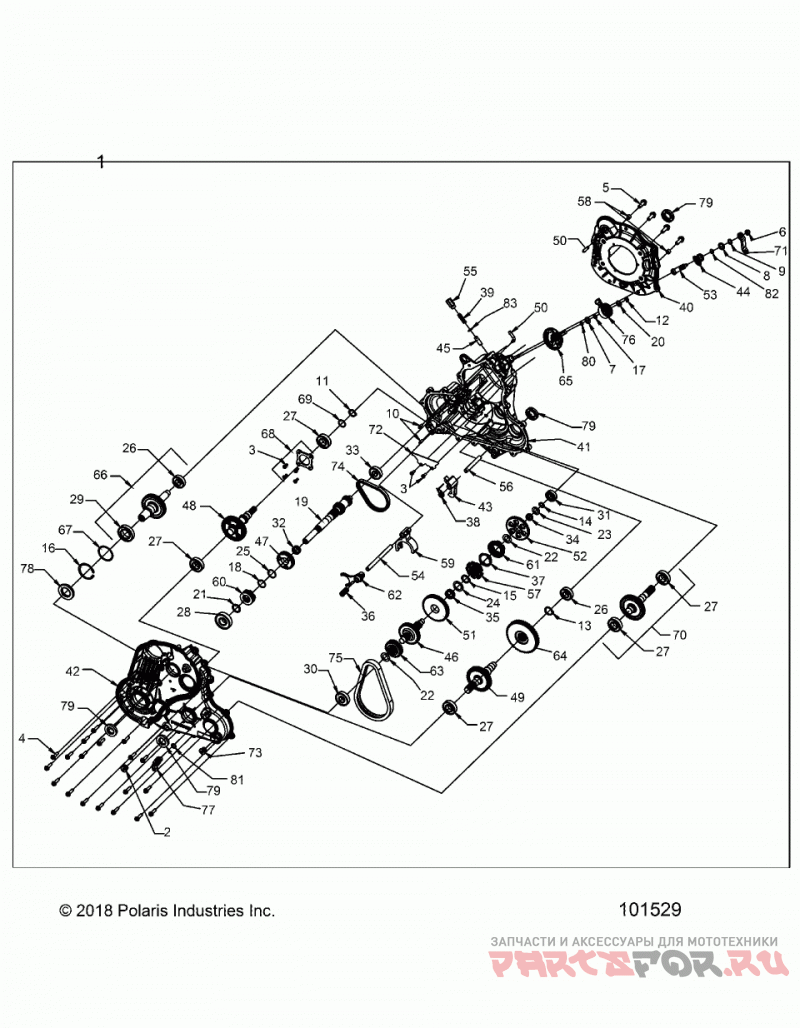

Drive train, main gearcase - a21sge95fk / s95ck / s95fk (101529)

Polaris SCRAMBLER XP 1000 55

Drive train, main gearcase - a21sge95fk / s95ck / s95fk (101529)

#

oem код

название

цена

1

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

10

PIN, DOWEL, 6 X 20

PIN, DOWEL, 6 X 20

11

RING, RETAINING BASIC, EXTERNAL 0.984

RING, RETAINING BASIC, EXTERNAL 0.984

12

RING, RETAINING BASIC EXTERNAL

RING, RETAINING BASIC EXTERNAL

13

RING RETAINING, IRR 7200-118

RING RETAINING, IRR 7200-118

14

RING, RETAINING, EXTERNAL SHR-66

RING, RETAINING, EXTERNAL SHR-66

15

RING, RETAINING BASIC, EXTERNAL SHR-106

RING, RETAINING BASIC, EXTERNAL SHR-106

16

RING, RETAINING BASIC, INTERNAL, 62MM

RING, RETAINING BASIC, INTERNAL, 62MM

17

RING, RETAINING BASIC, EXTERNAL, SHR-50

RING, RETAINING BASIC, EXTERNAL, SHR-50

18

RING, RETAINING, EXTERNAL USC-112

RING, RETAINING, EXTERNAL USC-112

19

SHAFT, INPUT 25T REM

SHAFT, INPUT 25T REM

2

PLUG, SOCKET HEAD W/MAGNET

PLUG, SOCKET HEAD W/MAGNET

20

WASHER, THRUST, 0.446 X 0.88 X 0.025

WASHER, THRUST, 0.446 X 0.88 X 0.025

21

WASHER, THRUST 1.300 X 0.995 X 0.065

WASHER, THRUST 1.300 X 0.995 X 0.065

22

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.35 OD X 0.818 ID

23

SHIM, 1.17 OD X 0.675 ID

SHIM, 1.17 OD X 0.675 ID

24

WASHER, THRUST, 1.568 OD X .1.110 ID

WASHER, THRUST, 1.568 OD X .1.110 ID

25

WASHER, THRUST, Ø 33 X Ø 29 X 1.5

WASHER, THRUST, Ø 33 X Ø 29 X 1.5

26

BEARING, BALL 6204 20 X 47 X 14

BEARING, BALL 6204 20 X 47 X 14

27

BEARING, BALL 6205 C3 25 X 52 X 15

BEARING, BALL 6205 C3 25 X 52 X 15

28

BEARING, BALL, 6305 C3, 25 X 62 X 17

BEARING, BALL, 6305 C3, 25 X 62 X 17

29

BEARING, BALL 6007 C3 35 X 62 X 14

BEARING, BALL 6007 C3 35 X 62 X 14

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

30

BEARING, BALL, 6304 C3 20X52X15

BEARING, BALL, 6304 C3 20X52X15

31

BEARING, BALL 6203 17 X 40 X 12

BEARING, BALL 6203 17 X 40 X 12

32

BEARING, NEEDLE, SPLIT CAGE

BEARING, NEEDLE, SPLIT CAGE

33

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6303, 17 X 47 X 14

34

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

35

BEARING, NEEDLE, 28 X 33 X 13

BEARING, NEEDLE, 28 X 33 X 13

36

SPRING, COMPRESSION, 0.648 O.D. X 1.33

SPRING, COMPRESSION, 0.648 O.D. X 1.33

37

SPRING, WAVE, 1.60 ID X 0.375

SPRING, WAVE, 1.60 ID X 0.375

38

SPRING, PARK PAWL, TORSION

SPRING, PARK PAWL, TORSION

39

SPRING, COMPRESSION, 0.45 OD X 1.58

SPRING, COMPRESSION, 0.45 OD X 1.58

4

SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30

SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30

40

BELLHOUSING, MACH

BELLHOUSING, MACH

41

GEARCASE, MAIN, GTO MACH

GEARCASE, MAIN, GTO MACH

42

GEARCASE GTO COVER, MACH.

GEARCASE GTO COVER, MACH.

43

PAWL, PARK

PAWL, PARK

44

GEAR, SECTOR, 38T

GEAR, SECTOR, 38T

45

Bullet, Detent

Bullet, Detent

46

Shaft, Reverse, 53T

Shaft, Reverse, 53T

47

GEAR, HELICAL, 42T

GEAR, HELICAL, 42T

48

SHAFT, INPUT

SHAFT, INPUT

49

SHAFT, OUTPUT REAR

SHAFT, OUTPUT REAR

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

50

TUBE, VENT 90 -1/4 INCH HOSE

TUBE, VENT 90 -1/4 INCH HOSE

51

GEAR, 67T

GEAR, 67T

52

SPROCKET, 48T, 6-FACE

SPROCKET, 48T, 6-FACE

53

SHAFT, SHIFT, BELLCRANK

SHAFT, SHIFT, BELLCRANK

54

Rail, Shift, Shaft

Rail, Shift, Shaft

55

Plug, Detent

Plug, Detent

56

RAIL, PARK SHAFT

RAIL, PARK SHAFT

57

DOG, ENGAGEMENT, GTO, LOW

DOG, ENGAGEMENT, GTO, LOW

58

PIPE, KNOCK

PIPE, KNOCK

59

Вилка

Вилка

6

NUT, LOCK, HEX FLANGE NYLON 5/16-24

NUT, LOCK, HEX FLANGE NYLON 5/16-24

60

DOG, ENGAGEMENT, GTO, HIGH

DOG, ENGAGEMENT, GTO, HIGH

61

DOG, ENGAGEMENT, GTO, REV/LOW

DOG, ENGAGEMENT, GTO, REV/LOW

62

Вилка

Вилка

63

SPROCKET, 23T

SPROCKET, 23T

64

SPROCKET, 44T

SPROCKET, 44T

65

SUBASM., SWITCH SHAFT

SUBASM., SWITCH SHAFT

66

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25) (#26 & #29)

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25) (#26 & #29)

67

KIT, GTO, PRIMARY SHIM PACK

KIT, GTO, PRIMARY SHIM PACK

68

SUBASSY BEARING COVER W/SCREWS (#3)

SUBASSY BEARING COVER W/SCREWS (#3)

69

KIT, LUK, INPUT SHAFT SHIM PACK

KIT, LUK, INPUT SHAFT SHIM PACK

7

WASHER, THRUST, 0.5 X 0.937 X 0.063

WASHER, THRUST, 0.5 X 0.937 X 0.063

70

SUBASSY OUTPUT, FRONT W/BEARINGS (#26) (#27)

SUBASSY OUTPUT, FRONT W/BEARINGS (#26) (#27)

71

BELLCRANK, 15T SPLINE

BELLCRANK, 15T SPLINE

72

Deflector, Oil

Deflector, Oil

73

PLUG, SOCKET HEAD

PLUG, SOCKET HEAD

74

CHAIN, SILENT, TYPE 101, .25P X .40W X 58L

CHAIN, SILENT, TYPE 101, .25P X .40W X 58L

75

CHAIN SILENT, 0.75 X .375P X 64P

CHAIN SILENT, 0.75 X .375P X 64P

76

SWITCH, ROTARY, 2 PIN RESISTIVE

SWITCH, ROTARY, 2 PIN RESISTIVE

77

Sensor, Speed, Trans.

Sensor, Speed, Trans.

78

SEAL, 35 X 62 X 8

SEAL, 35 X 62 X 8

79

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

8

WASHER, THRUST, .625 X 1.000 X 0.063

WASHER, THRUST, .625 X 1.000 X 0.063

80

O-RING - N70, 9.5 MM X 2 MM

O-RING - N70, 9.5 MM X 2 MM

81

O-RING, -113 VITON

O-RING, -113 VITON

82

O-RING, -014 VITON

O-RING, -014 VITON

83

O-RING, 0.53 I.D X 0.082 WIDE

O-RING, 0.53 I.D X 0.082 WIDE

9

WASHER, RIBBED

WASHER, RIBBED
