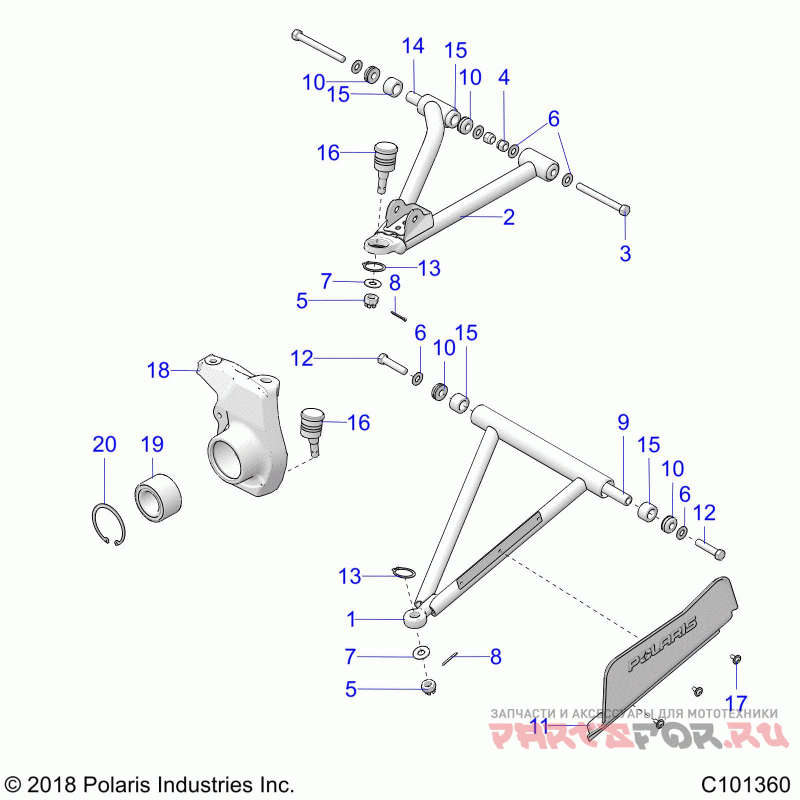

Suspension, front - a20she57fp / s57cp / fp / cu (c101360)

Polaris SPORTSMAN 570 EPS EUN (A20SHE57FP/S57CP/FP/CU)

Polaris
#oem кодцена
1
1023242-458
WELD-UCA,S,FRONT,LH,M.BLK
1
1023243-458
WELD-UCA,S,FRONT,RH,M.BLK
10
1543611
ASM-PIVOT CAP,SEALED,M10
11
5435028-070
SHIELD-CV,FRONT,BASIC,LH,BLK
11
5435029-070
SHIELD-CV,FRONT,BASIC,RH,BLK
12
7521149
SCR-3/8-24X1 3/4,HX,GR8,P30,Y
13
7710533
RING-RETAINER,EXTERNAL,1.188
14
5141292
SHAFT-PIVOT,SHORT,M10,43MM
15
5452233
BUSHING-STANDARD,SUSP,M10
16
7061230
BALL-JOINT,M12X1.50,TAPERED
17
7512084
SCR-10-24X1/2,PHTXTRIRD,SEMS-Y
18
1824882
ASM-STEERING,KNUCKLE,LH ([INCL., KNUCKLE, 19, 20])
18
1824883
ASM-STEERING,KNUCKLE,RH ([INCL., KNUCKLE, 19, 20])
18
5139686
KNUCKLE-STEERING,MACH,LH
18
5139687
KNUCKLE-STEERING,MACH,RH
19
3515088
BEARING-WHEEL,35X64X37MM
2
1023304-458
WELD-LCA,S,FRONT,LH,M.BLK
2
1023305-458
WELD-LCA,S,FRONT,RH,M.BLK
20
7710507
RING-RETAINING,2.500 INTERNAL
3
7515472
SCR-3/8-24X3 3/4 HX CP GR5-Y
4
7542439
NUT-3/8-24(NYLOK)-Y
5
7547336
NUT-M12X1.5,CASTLE-OLIVE D
6
7556153
WASHER-3/8 FW SAE STL THRU-HRD
7
7556212
WASHER-7/16 SAE,STF,THRU-HRD-Y
8
7661203
PIN-3/32X1-COTTER-Y
9
5141329
SHAFT-A-ARM,SEALED,C-BORE
