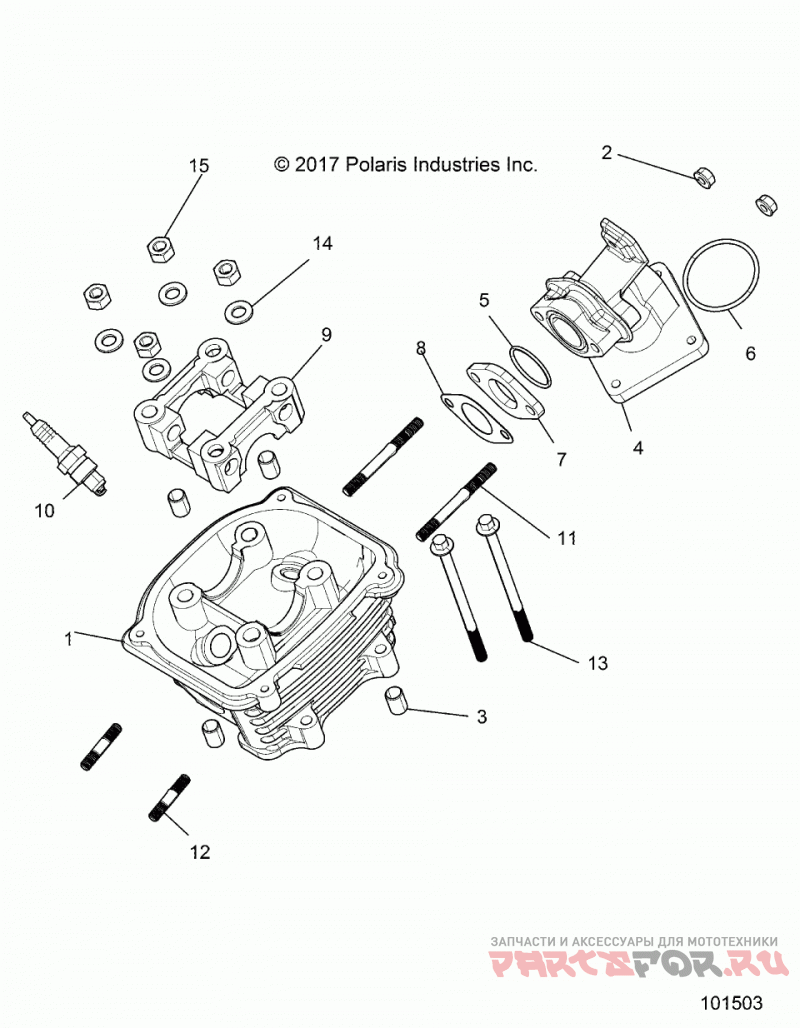

Engine, cylinder head asm. - a20hzb15n1 / n2 [101503]
Polaris ATV RGR 150 EFI MD
![Engine, cylinder head asm. - a20hzb15n1 / n2 [101503]](http://www.partsfor.ru/oem_img/1507/ffa552fc65740697d8f7bfa7a1e0eedb.gif)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3050045 Головка цилиндра | Головка цилиндра | |
10 | 3050051 SPARK PLUG | SPARK PLUG | |
11 | 3050052 BOLT STUD M6X63 | BOLT STUD M6X63 | |
12 | 3050053 BOLT STUD M6X32 | BOLT STUD M6X32 | |
13 | 3050330 BOLT M6X100 | BOLT M6X100 | |
14 | 3050054 WASHER 8 | WASHER 8 | |
15 | 3050343 NUT M8 | NUT M8 | |
2 | 3050333 NUT M6 | NUT M6 | |
3 | 3050047 DOWEL PIN 10X16 | DOWEL PIN 10X16 | |
4 | 5140897 ADAPTER-THROTTLE BODY(MACH),AR | ADAPTER-THROTTLE BODY(MACH),AR | |
5 | 5416176 O-RING 27X2 | O-RING 27X2 | |
6 | 5416177 O-RING 41X2.5 | O-RING 41X2.5 | |
7 | 3050048 INSULATOR INTAKE | INSULATOR INTAKE | |
8 | 3050352 GASKET-CARB INSULATOR | GASKET-CARB INSULATOR | |
9 | 3050050 CAMSHAFT HOLDER | CAMSHAFT HOLDER |
