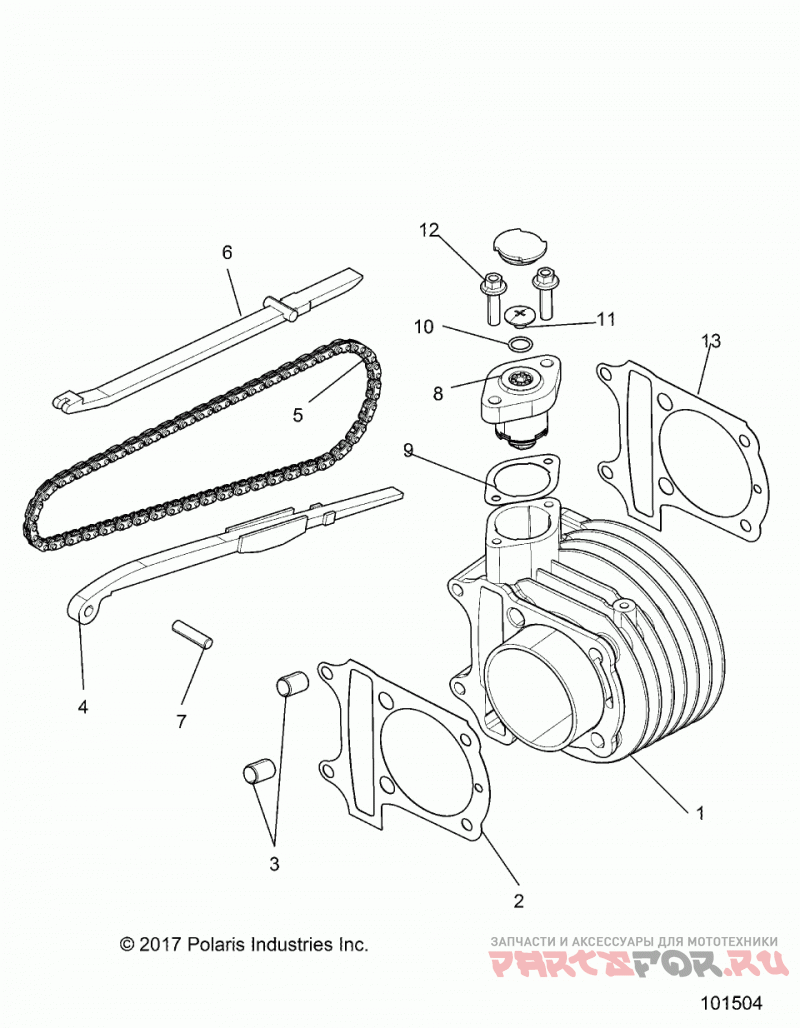

Engine, cylinder comp - a20hzb15a1 / a2 / b1 / b2 [101504]
Polaris ATV RGR 150 EFI
![Engine, cylinder comp - a20hzb15a1 / a2 / b1 / b2 [101504]](http://www.partsfor.ru/oem_img/1507/20efce47886ceaaa288e2d801b421bda.gif)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3050055 CYLINDER BLOCK | CYLINDER BLOCK | |
10 | 3050064 O-RING 9.5X1.5 | O-RING 9.5X1.5 | |
11 | 3050065 BOLT, TENSION PLATE | BOLT, TENSION PLATE | |
12 | 3050331 BOLT M6X22 | BOLT M6X22 | |
13 | 3050355 GASKET, CYLINDER HEAD,METAL | GASKET, CYLINDER HEAD,METAL | |
2 | 3050351 GASKET-CYLINDER BLOCK | GASKET-CYLINDER BLOCK | |
3 | 3050047 DOWEL PIN 10X16 | DOWEL PIN 10X16 | |
4 | 3050058 CHAIN GUIDE PLATE | CHAIN GUIDE PLATE | |
5 | 3050059 TIMING CHAIN | TIMING CHAIN | |
6 | 3050060 TENSION PLATE | TENSION PLATE | |
7 | 3050061 TENSION ROD FIXED PIN | TENSION ROD FIXED PIN | |
8 | 3050062 ASM-TENSIONER | ASM-TENSIONER | |
9 | 3050347 GASKET-TENSIONER | GASKET-TENSIONER |
