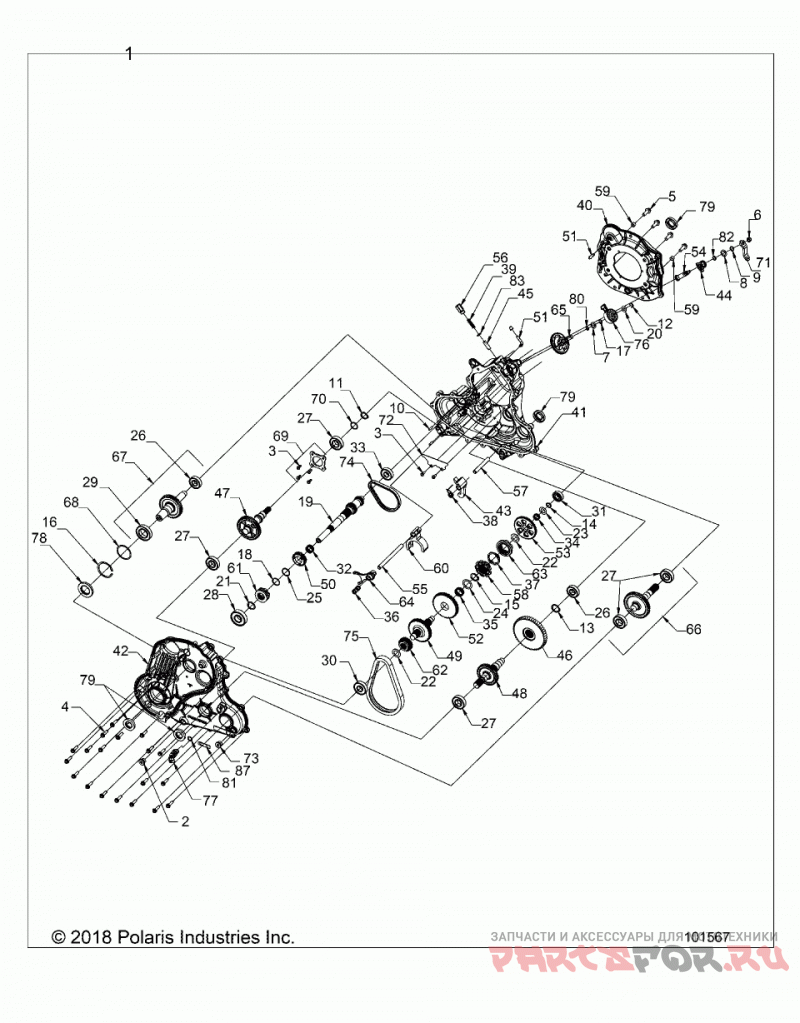

Drive train, main gearcase - a19sxn85a8

Polaris A19SXN85A8 SPORTSMAN 850 HIGH LIFTER

Polaris
#oem кодцена
1
1334256
Деталь ASM-TRANS,BOSS/LUK,SUPLOW
2
3234756
Деталь PLUG, M18 X 1.5, MAGNETIC
3
3234309
Деталь SCREW, TORX, PAN HD M6 X 1 X 16
4
3234898
Деталь SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
5
3234634
Деталь SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30
6
3233961
Деталь NUT, LOCK HEX FLANGE, NYLON 5/16-24
7
3234636
Деталь WASHER, THRUST, .500 X .937 X 0.063
8
3234637
Деталь WASHER, THRUST, .625 X 1.000 X 0.063
9
3235508
Деталь WASHER, RIBBED
10
3234330
Деталь PIN, DOWEL 6 X 20
11
3233106
Деталь RING, RETAINING BASIC, EXTERNAL .984
12
3233834
Кольцо
13
3233699
Деталь RING RTNG, IRR 7200-118
14
3234318
Деталь RING, RETAINING, EXTERNAL SHR-66
15
3234327
Деталь RING, RETAINING BASIC, EXTERNAL SHR-106
16
3234741
Деталь RING, RETAINING BASIC, INTERNAL, 62MM
17
3234639
Деталь RING, RETAINING BASIC, EXTERNAL, SHR-50
18
3234641
Деталь RING, RETAINING, EXTERNAL USC-112
19
3235063
Деталь SHAFT, INPUT 25T REM
20
3234642
Деталь WASHER, THRUST, .446 X .88 X 0.025
21
3234248
Деталь WASHER, THRUST, 1.300 X .995 X 0.065
22
3234643
Деталь SHIM, 1.35 OD X .818 ID
23
3234644
Деталь SHIM, 1.170 OD X .675 ID
24
3234646
Деталь WASHER, THRUST, 1.568 OD X .1.110 ID
25
3234757
Деталь WASHER, THRUST, 33 X 29 X 1.5
26
3233018
Деталь BEARING, BALL, 6204 C3 20X47X14
27
3233019
Деталь BEARING, BALL, 6205 C3 25X52X15
28
3233020
Деталь BEARING, BALL, 6305 C3 25X62X17
29
3233265
Деталь BEARING, BALL, 6007 C3 35X62X14
30
3234651
Деталь BEARING, BALL, 6304 C3 20X52X15
31
3234274
Деталь BEARING, BALL, 6203 C3 17X40X12
32
3234759
Деталь BEARING, NEEDLE, SPLIT CAGE
33
3234652
Деталь BEARING, BALL 6303, 17 X 47 X 14
34
3234655
Деталь BEARING, NEEDLE, CAGE ASSY 20x24x10
35
3234656
Деталь BEARING, NEEDLE, 28 X 33 X 13
36
3234687
Деталь SPRING, COMPRESSION, .648 O.D. X 1.33
37
3234688
Деталь SPRING, WAVE, 1.60 ID X .375
38
3234787
Деталь SPRING, PARK PAWL, TORSION
39
3234790
Деталь SPRING, COMPRESSION, .450 OD X 1.58
40
3235196
Деталь BELLHOUSING, MACH
41
3235615
Деталь GEARCASE, MAIN, GTO MACH
42
3235729
Деталь GEARCASE, GTO, COVER, MACH
43
3234692
Деталь PAWL, PARK
44
3234694
Деталь GEAR, SECTOR, 38T
45
3234695
Деталь BULLET, DETENT
46
2204332
Деталь SPROCKET, 47T
47
3235194
Деталь SHAFT, INPUT
48
3235195
Деталь SHAFT, OUTPUT
49
3235612
Деталь SHAFT, REVERSE, 61T
50
3235613
Деталь GEAR, HELICAL 33T
51
3234230
Деталь TUBE, VENT, 90 -1/4
52
3234706
Деталь GEAR, 67T
53
3234707
Деталь SPROCKET 48T, 6-FACE
54
3234712
Деталь SHAFT, SHIFT, BELLCRANK
55
3234714
Деталь RAIL, SHIFT SHAFT
56
3234715
Деталь PLUG, DETENT
57
3234716
Деталь RAIL, PARK SHAFT
58
3234718
Деталь DOG, ENGAGEMENT, GTO, LOW
59
3234765
Деталь KNOCK PIPE
60
3234766
Вилка
61
3235190
Деталь DOG, ENGAGEMENT, GTO, HIGH
62
2204331
Звездочка 19 зуб.
63
3235341
Деталь DOG, ENGAGEMENT, GTO, REV/LOW
64
3235342
Вилка
65
3234767
Деталь SUBASSY, SWITCH SHAFT
66
3234723
Деталь SUBASSY, OUTPUT, FRONT
67
3235191
Деталь SUBASSEMBLY, PRIMARY SHAFT
68
2204268
Деталь KIT, GTO, PRIMARY SHIM PACK
69
3235198
Деталь SUBASSY, BEARING COVER
70
2204343
Деталь KIT, LUK, INPUT SHAFT SHIM PACK
71
3234327
Деталь BELLCRANK, 15T SPLINE
72
3234725
Деталь DEFLECTOR, OIL
73
3234755
Деталь PLUG, M18 X 1.5
74
3234737
Деталь CHAIN, SILENT, TYPE 101, .25P X .40W X 58L
75
3235245
Деталь CHAIN SILENT, 0.75 X .375P X 64P
76
7662383
Деталь SWITCH, ROTARY, 2 PIN RESISTIVE
77
4013908
Датчик скорости
78
3234769
Деталь SEAL, 35X62X8
79
3234892
Деталь SEAL, TRIPLE LIP, 0.984X1.850X0.315 VITON
80
3236171
Деталь O-RING, -N70, 9.5 MM X 2 MM
81
3233840
Деталь O-RING, -113 VITON
82
3233828
Деталь O-RING, -014 VITON
83
3234729
Деталь O-RING, .530 I.D X .082 WIDE
