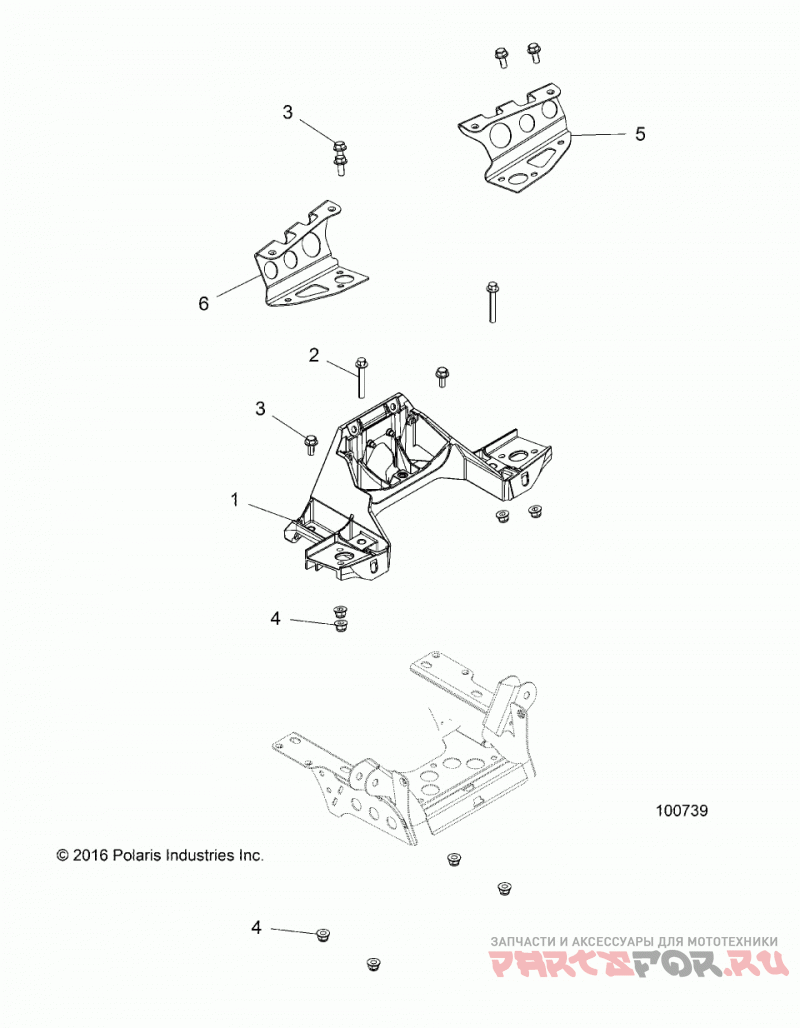

Chassis, bulkhead and front cab support - a19sxa85b1 / b4 / sxe85bc / b9 / zbj (100739)
Polaris A19SXA85B1/B4/SXE85BC/B9/SXZ85BJ SPORTSMAN 850 SP 48
| # | oem код | название | цена |
|---|---|---|---|
1 | 5633745 BULKHEAD-CAST | BULKHEAD-CAST | |
2 | 7517281 SCR-M8X1.25X55,HX/FL-Y | SCR-M8X1.25X55,HX/FL-Y | |
3 | 7518450 SCR-HXFL-M8X1.25X20 8.8 ZY3 NY | SCR-HXFL-M8X1.25X20 8.8 ZY3 NY | |
4 | 7547317 NUT-M8X1.25,HXFLG,NYLON INS | NUT-M8X1.25,HXFLG,NYLON INS | |
5 | 5263402-329 BRKT-CAB SUPPORT,FRONT,LH,BLK | BRKT-CAB SUPPORT,FRONT,LH,BLK | |
6 | 5263403-329 BRKT-CAB SUPPORT,FRONT,RH,BLK | BRKT-CAB SUPPORT,FRONT,RH,BLK |
