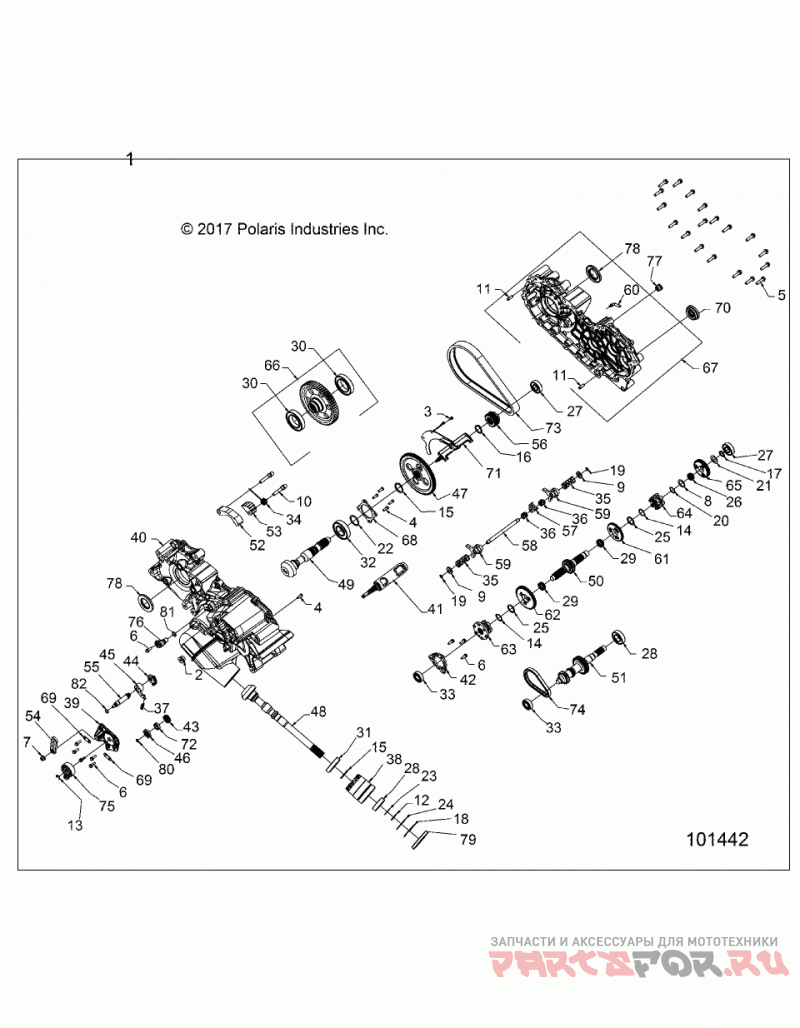

Drive train, main gearcase - a19sef57b4

Polaris A19SEA57B1/5/9/L2/L7/E57B1/5/9/F57B4/SEY57B5 SPORTSMAN 570 EFI

Drive train, main gearcase - a19sef57b4

#

oem код

название

цена

1

ASM-TRANS,PDS,NO DIFF,LO

ASM-TRANS,PDS,NO DIFF,LO

2

PLUG, 3/4-16, HOLLOW HEX MAGNETIC

PLUG, 3/4-16, HOLLOW HEX MAGNETIC

3

SCREW, TAPPING TORX, PH 8-32 X.50

SCREW, TAPPING TORX, PH 8-32 X.50

4

SCREW, TORX, PAN HD 1/4-20 X .75

SCREW, TORX, PAN HD 1/4-20 X .75

5

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

7

NUT, LOCK HEX FLANGE, NYLON 5/16-24

NUT, LOCK HEX FLANGE, NYLON 5/16-24

8

WASHER, 1.250 X .876 X .05

WASHER, 1.250 X .876 X .05

9

WASHER, CUP

WASHER, CUP

10

Штифт

Штифт

11

PIN, 5/16 X 1.0

PIN, 5/16 X 1.0

12

RING, RETAINING BASIC, EXTERNAL .984

RING, RETAINING BASIC, EXTERNAL .984

13

Кольцо

Кольцо

14

Стопорное кольцо

Стопорное кольцо

15

RING, RETAINING, SHAFT, DIA. 1.375

RING, RETAINING, SHAFT, DIA. 1.375

16

RING RTNG, IRR 7200-118

RING RTNG, IRR 7200-118

17

RING, RETAINING BASIC, EXTERNAL .787 SHAFT

RING, RETAINING BASIC, EXTERNAL .787 SHAFT

18

RING, RETAINING BASIC, INTERNAL 2.047

RING, RETAINING BASIC, INTERNAL 2.047

19

RING, RETAINING BASIC, EXTERNAL .428

RING, RETAINING BASIC, EXTERNAL .428

20

RING, RETAINING, BASIC EXTERNAL DIA .84

RING, RETAINING, BASIC EXTERNAL DIA .84

21

WASHER THRUST , 1.270 X .793 X 0.065

WASHER THRUST , 1.270 X .793 X 0.065

22

SHIM, 1.700 X 1.385

SHIM, 1.700 X 1.385

23

SHIM, 1.180 OD X .995 ID

SHIM, 1.180 OD X .995 ID

24

SHIM, 2.040 OD X 1.63 ID

SHIM, 2.040 OD X 1.63 ID

25

WASHER, THRUST, 1.300 X .995 X .065

WASHER, THRUST, 1.300 X .995 X .065

26

BEARING, NEEDLE, CAGE ASSY

BEARING, NEEDLE, CAGE ASSY

27

BEARING, BALL 6204 C3 20X47X14

BEARING, BALL 6204 C3 20X47X14

28

BEARING, BALL 6205 C3 25X52X15

BEARING, BALL 6205 C3 25X52X15

29

BEARING, NEEDLE 25X29X10

BEARING, NEEDLE 25X29X10

30

BEARING, BALL 6010 C3 50X80X10

BEARING, BALL 6010 C3 50X80X10

31

BEARING, BALL 6007 C3 35X62X14

BEARING, BALL 6007 C3 35X62X14

32

BEARING, BALL 6207 C3 35X72X17

BEARING, BALL 6207 C3 35X72X17

33

BEARING, BALL 6203 C3 17X40X12

BEARING, BALL 6203 C3 17X40X12

34

Пружина

Пружина

35

SPRING, COMPRESSION .92 O.D. X 2.000

SPRING, COMPRESSION .92 O.D. X 2.000

36

SPRING, COMPRESSION .46 I.D. X .73

SPRING, COMPRESSION .46 I.D. X .73

37

SPRING, COMPRESSION, DETENT

SPRING, COMPRESSION, DETENT

38

TUBE, SNORKEL MACH

TUBE, SNORKEL MACH

39

COVER, SECTOR GEARS MACH

COVER, SECTOR GEARS MACH

40

CASE, RH MACH

CASE, RH MACH

41

DRUM, SHIFT MACH

DRUM, SHIFT MACH

42

PLATE, PARK, 12-FACE

PLATE, PARK, 12-FACE

43

GEAR, SECTOR 16T

GEAR, SECTOR 16T

44

GEAR, SECTOR 31T

GEAR, SECTOR 31T

45

PAWL, DETENT

PAWL, DETENT

46

STAR, DETENT

STAR, DETENT

47

GEAR OUTPUT 91T, HCR

GEAR OUTPUT 91T, HCR

48

GEAR, 13T SNORKEL,

GEAR, 13T SNORKEL,

49

PINION, 13T, CENTER DRIVE

PINION, 13T, CENTER DRIVE

50

SHAFT, REVERSE 26T

SHAFT, REVERSE 26T

51

SHAFT, INPUT-43T HELICAL

SHAFT, INPUT-43T HELICAL

52

SHOE, CHAIN TENSIONER

SHOE, CHAIN TENSIONER

53

CAM, CHAIN TENSIONER

CAM, CHAIN TENSIONER

54

BELLCRANK, .510 HOLE, 92 ~

BELLCRANK, .510 HOLE, 92 ~

55

Вал

Вал

56

Звездочка 19 зуб.

Звездочка 19 зуб.

57

COLLAR, SHIFT

COLLAR, SHIFT

58

RAIL, SHIFT SHAFT

RAIL, SHIFT SHAFT

59

Вилка

Вилка

60

TUBE, VENT 90 ~ 1/4

TUBE, VENT 90 ~ 1/4

61

SPROCKET 38T, 6-FACE

SPROCKET 38T, 6-FACE

62

GEAR, 33T, 6-FACE

GEAR, 33T, 6-FACE

63

DOG, L/P

DOG, L/P

64

ENGAGEMENT DOG, 6-FACE

ENGAGEMENT DOG, 6-FACE

65

GEAR, HELICAL 44T

GEAR, HELICAL 44T

66

SUB-ASSY SHAFT, 59T FINAL, OUTPUT WITH BEARING

SUB-ASSY SHAFT, 59T FINAL, OUTPUT WITH BEARING

67

SUBASSEMBLY, LH COVER, PDS EAGLE

SUBASSEMBLY, LH COVER, PDS EAGLE

68

COVER, BEARING, CENTER DRIVE

COVER, BEARING, CENTER DRIVE

69

BRACKET, WIRE HARNESS

BRACKET, WIRE HARNESS

70

SEAL, DUAL LIP 25X47 VITON

SEAL, DUAL LIP 25X47 VITON

71

DEFLECTOR, OIL

DEFLECTOR, OIL

72

Проставка

Проставка

73

CHAIN SILENT, 17 WIDE X 1.0 X 86P

CHAIN SILENT, 17 WIDE X 1.0 X 86P

74

CHAIN, .25P X .40W X 50L

CHAIN, .25P X .40W X 50L

75

SWITCH, ROTARY , 2 PIN RESISTIVE

SWITCH, ROTARY , 2 PIN RESISTIVE

76

Датчик скорости

Датчик скорости

77

PLUG, 3/4-16, HOLLOW HEX

PLUG, 3/4-16, HOLLOW HEX

78

SEAL, TRIPLE LIP 40X70X7

SEAL, TRIPLE LIP 40X70X7

79

SEAL, TRIPLE LIP 25X80X10

SEAL, TRIPLE LIP 25X80X10

80

O-RING, 2-012

O-RING, 2-012

81

Уплотнительное кольцо

Уплотнительное кольцо

82

O-RING, -014

O-RING, -014
