Drive train, main gearcase - a19dba50a5 (100853) для квадроциклов Polaris A19DBA50A5 ACE 500 SOHC (2019)

Москва и регионы России

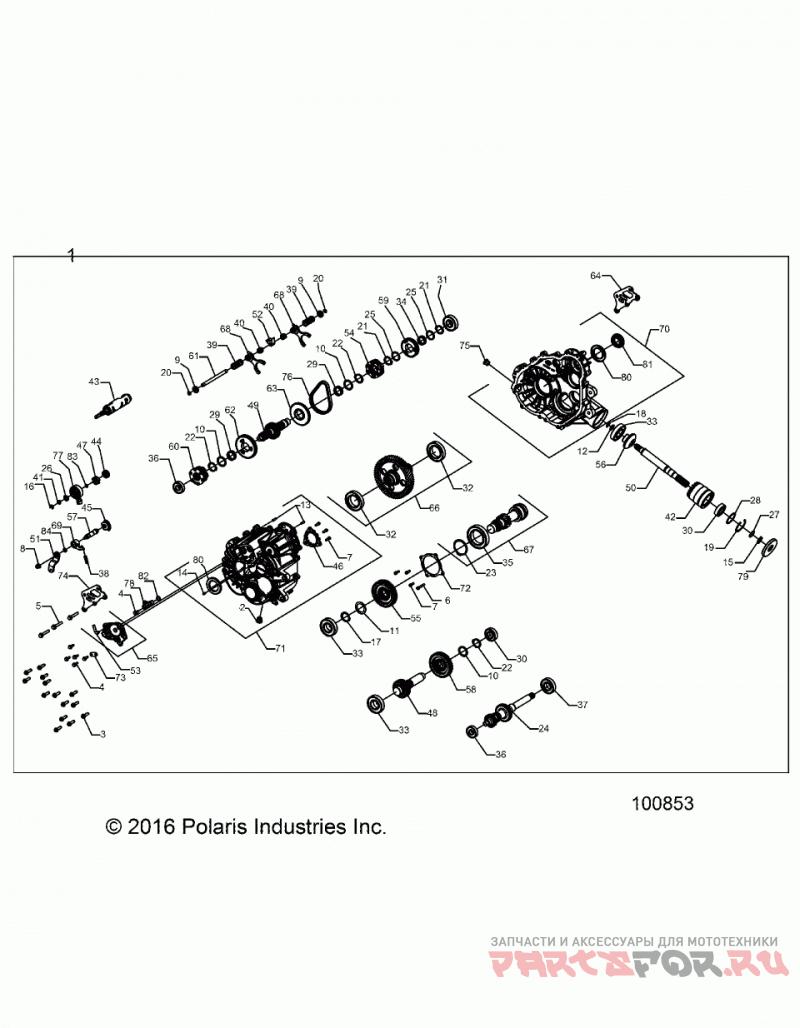

Drive train, main gearcase - a19dba50a5 (100853)

Polaris A19DBA50A5 ACE 500 SOHC

Drive train, main gearcase - a19dba50a5 (100853)

#

oem код

название

цена

1

ASM-GEARCASE,30MM BLW

ASM-GEARCASE,30MM BLW

2

PLUG, M18 X 1.5, MAGNETIC

PLUG, M18 X 1.5, MAGNETIC

3

SCREW, HEX FLANGE HEAD M8 X 1.25 X 30

SCREW, HEX FLANGE HEAD M8 X 1.25 X 30

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW, HEX FLANGE HEAD M6 X 1 X 20

5

SCREW HEX FLANGE M8 X 50

SCREW HEX FLANGE M8 X 50

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

7

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

9

WASHER, CUP

WASHER, CUP

10

WASHER, 32.3 X 42 X 1.5

WASHER, 32.3 X 42 X 1.5

11

WASHER, 35.6 X 50 X 1.5

WASHER, 35.6 X 50 X 1.5

12

WASHER, 17.3 X 25 X 1.5

WASHER, 17.3 X 25 X 1.5

13

PIN, DOWEL 6 X 20

PIN, DOWEL 6 X 20

14

PIN, SPRING SLOTTED 6 X 12

PIN, SPRING SLOTTED 6 X 12

15

RING, RETAINING BASIC EXTERNAL 0.984

RING, RETAINING BASIC EXTERNAL 0.984

16

Кольцо

Кольцо

17

RING, RETAINING SHAFT, DIA. 1.375

RING, RETAINING SHAFT, DIA. 1.375

18

RING, RETAINING EXTERNAL SHR-66

RING, RETAINING EXTERNAL SHR-66

19

RING, RETAINING BASIC INTERNAL 2.047

RING, RETAINING BASIC INTERNAL 2.047

20

RING, RETAINING BASIC EXTERNAL 0.428

RING, RETAINING BASIC EXTERNAL 0.428

21

Стопорное кольцо

Стопорное кольцо

22

RING, EXTERNAL SNAP 32 X 2.4

RING, EXTERNAL SNAP 32 X 2.4

23

RING, RETAINING VSH-237

RING, RETAINING VSH-237

24

SHAFT, INPUT, HELICAL

SHAFT, INPUT, HELICAL

25

WASHER, THRUST 1.187 X 1.5 X 0.06

WASHER, THRUST 1.187 X 1.5 X 0.06

26

WASHER, THRUST 0.446 X 0.88 X 0.025

WASHER, THRUST 0.446 X 0.88 X 0.025

27

SHIM, 1.18 OD X 0.995 ID

SHIM, 1.18 OD X 0.995 ID

28

SHIM, 2.04 OD X 1.63 ID

SHIM, 2.04 OD X 1.63 ID

29

BEARING, NEEDLE CAGE ASSY

BEARING, NEEDLE CAGE ASSY

30

BEARING, BALL 6205 C3 25X52X15

BEARING, BALL 6205 C3 25X52X15

31

BEARING, BALL 6305 C3, 25 X 62 X 17

BEARING, BALL 6305 C3, 25 X 62 X 17

32

BEARING, BALL 6010 C3 50X80X16

BEARING, BALL 6010 C3 50X80X16

33

BEARING, BALL 6207 C3 35X72X17

BEARING, BALL 6207 C3 35X72X17

34

BEARING, NEEDLE CAGE ASSY

BEARING, NEEDLE CAGE ASSY

35

BEARING, BALL 6012 C3 60 X 95 X 18

BEARING, BALL 6012 C3 60 X 95 X 18

36

BEARING, BALL 6303 17 X 47 X 14

BEARING, BALL 6303 17 X 47 X 14

37

BEARING, BALL 6206RSH2 STD 30 X 62 X 16

BEARING, BALL 6206RSH2 STD 30 X 62 X 16

38

SPRING, COMPRESSION 0.36 OD X 1.125

SPRING, COMPRESSION 0.36 OD X 1.125

39

SPRING, COMPRESSION 0.92 O.D. X 2

SPRING, COMPRESSION 0.92 O.D. X 2

40

SPRING, COMPRESSION 0.46 I.D. X 0.73

SPRING, COMPRESSION 0.46 I.D. X 0.73

41

SPRING, WASHER

SPRING, WASHER

42

TUBE, SNORKEL MACH

TUBE, SNORKEL MACH

43

DRUM, SHIFT MACH

DRUM, SHIFT MACH

44

GEAR, SECTOR 16T

GEAR, SECTOR 16T

45

GEAR, SECTOR 31T

GEAR, SECTOR 31T

46

PLATE, PARK 12-FACE

PLATE, PARK 12-FACE

47

STAR, DETENT

STAR, DETENT

48

SHAFT, IDLER 29T

SHAFT, IDLER 29T

49

SHAFT, REVERSE 27T

SHAFT, REVERSE 27T

50

SHAFT, FRONT OUTPUT

SHAFT, FRONT OUTPUT

51

BELLCRANK DROID

BELLCRANK DROID

52

COLLAR, SHIFT

COLLAR, SHIFT

53

TUBE, VENT 90 -1/4

TUBE, VENT 90 -1/4

54

ENGAGEMENT DOG, 6-FACE

ENGAGEMENT DOG, 6-FACE

55

GEAR, 46T STAGE 3

GEAR, 46T STAGE 3

56

GEAR, 13T SNORKEL

GEAR, 13T SNORKEL

57

SHAFT SHIFT

SHAFT SHIFT

58

GEAR, 46T STAGE 2

GEAR, 46T STAGE 2

59

GEAR, 49T

GEAR, 49T

60

SHIFT DOG, PARK

SHIFT DOG, PARK

61

RAIL, SHIFT SHAFT

RAIL, SHIFT SHAFT

62

GEAR, LOW 61T

GEAR, LOW 61T

63

SPROCKET, 48T 6-FACE

SPROCKET, 48T 6-FACE

64

WELDMENT, REAR MOUNT BRACKET

WELDMENT, REAR MOUNT BRACKET

65

SUBASSEMBLY, SECTOR COVER

SUBASSEMBLY, SECTOR COVER

66

SUBASSEMBLY, OUTPUT

SUBASSEMBLY, OUTPUT

67

SUBASSEMBLY, PINION

SUBASSEMBLY, PINION

68

SUBASSEMBLY, SHIFT FORK

SUBASSEMBLY, SHIFT FORK

69

SUBASSEMBLY, PAWL DETENT, ROLLER

SUBASSEMBLY, PAWL DETENT, ROLLER

70

SUBASSEMBLY, LH CASE

SUBASSEMBLY, LH CASE

71

SUBASSEMBLY, RH COVER

SUBASSEMBLY, RH COVER

72

COVER, BEARING CENTER DRIVE

COVER, BEARING CENTER DRIVE

73

BRACKET, WIRE HARNESS

BRACKET, WIRE HARNESS

74

BRACKET, REAR MOUNT

BRACKET, REAR MOUNT

75

PLUG, M18 X 1.5

PLUG, M18 X 1.5

76

CHAIN, SILENT, TYPE 101 .25P X .40W X 58L

CHAIN, SILENT, TYPE 101 .25P X .40W X 58L

77

SWITCH, ROTARY 2 PIN RESISTIVE

SWITCH, ROTARY 2 PIN RESISTIVE

78

Датчик скорости

Датчик скорости

79

SEAL, TRIPLE LIP 25 X 80 X 10

SEAL, TRIPLE LIP 25 X 80 X 10

80

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

81

SEAL, TRIPLE LIP, 30 X 47 VITON

SEAL, TRIPLE LIP, 30 X 47 VITON

82

Уплотнительное кольцо

Уплотнительное кольцо

83

O-RING, -12 VITON

O-RING, -12 VITON

84

O-RING, -14 VITON

O-RING, -14 VITON
