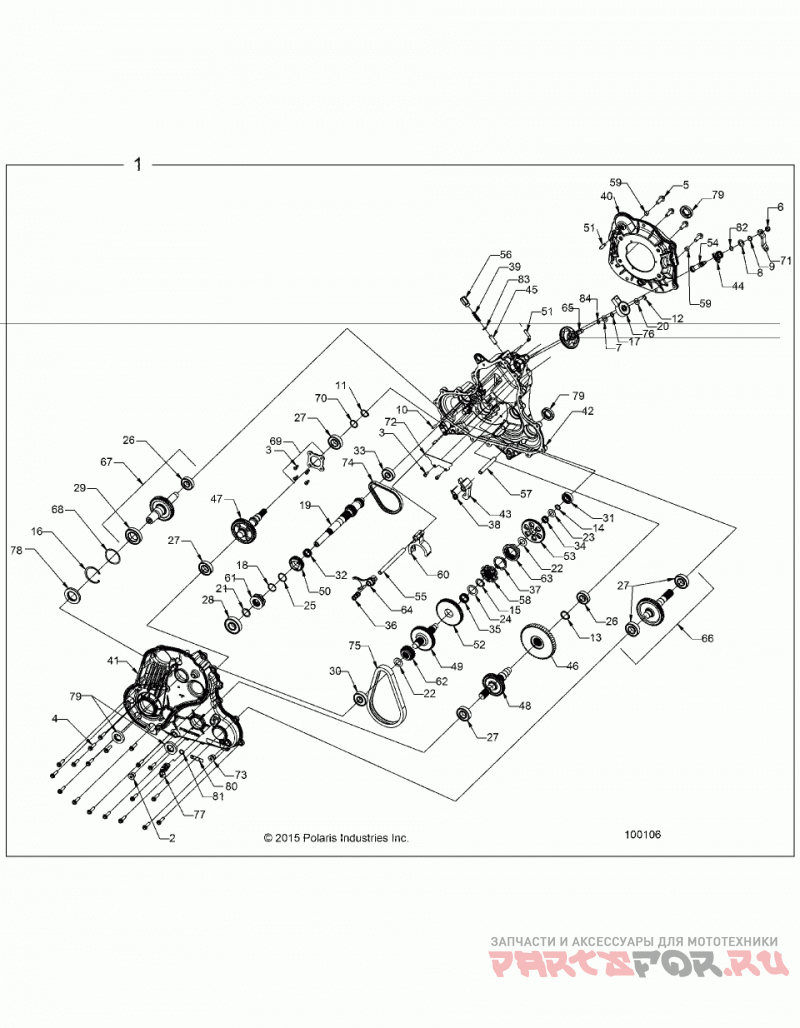

Drive train, main gearcase - a18sxn85a8

Polaris A18SXN85A8 SPORTSMAN 850 HIGH LIFTER

Drive train, main gearcase - a18sxn85a8

#

oem код

название

цена

1

ASM-TRANS,BOSS/LUK,SUPLOW

ASM-TRANS,BOSS/LUK,SUPLOW

2

PLUG, M18 X 1.5 MAGNETIC

PLUG, M18 X 1.5 MAGNETIC

3

SCREW, TORX PAN HD M6 X 1 X 16

SCREW, TORX PAN HD M6 X 1 X 16

4

SCREW, HEX FLANGE HEAD M8 X 1.25 X 30

SCREW, HEX FLANGE HEAD M8 X 1.25 X 30

5

SCREW, HEX FLANGE HEAD M10 X 1.5 X 30

SCREW, HEX FLANGE HEAD M10 X 1.5 X 30

6

NUT, LOCK HEX FLANGE NYLON 5/16-24

NUT, LOCK HEX FLANGE NYLON 5/16-24

7

WASHER, THRUST .500 X .937 X .063

WASHER, THRUST .500 X .937 X .063

8

WASHER, THRUST .625 X 1.000 X .063

WASHER, THRUST .625 X 1.000 X .063

9

WASHER, RIBBED

WASHER, RIBBED

10

PIN, DOWEL 6 X 20

PIN, DOWEL 6 X 20

11

RING, RETAINING BASIC EXTERNAL .984

RING, RETAINING BASIC EXTERNAL .984

12

Кольцо

Кольцо

13

RING RETAINING, IRR 7200-118

RING RETAINING, IRR 7200-118

14

RING, RETAINING EXTERNAL SHR-66

RING, RETAINING EXTERNAL SHR-66

15

RING, RETAINING BASIC EXTERNAL SHR-106

RING, RETAINING BASIC EXTERNAL SHR-106

16

RING, RETAINING BASIC INTERNAL, 62MM

RING, RETAINING BASIC INTERNAL, 62MM

17

RING, RETAINING BASIC EXTERNAL, SHR-50

RING, RETAINING BASIC EXTERNAL, SHR-50

18

RING, RETAINING EXTERNAL USC-112

RING, RETAINING EXTERNAL USC-112

19

SHAFT, INPUT 25T REM

SHAFT, INPUT 25T REM

20

WASHER, THRUST .446 X .88 X .025

WASHER, THRUST .446 X .88 X .025

21

WASHER, THRUST 1.300 X .995 X .065

WASHER, THRUST 1.300 X .995 X .065

22

SHIM, 1.35 OD X .818 ID

SHIM, 1.35 OD X .818 ID

23

SHIM, 1.170 OD X .675 ID

SHIM, 1.170 OD X .675 ID

24

WASHER, THRUST 1.568 OD X .1.110 ID

WASHER, THRUST 1.568 OD X .1.110 ID

25

WASHER, THRUST ? 33 X ? 29 X 1.5

WASHER, THRUST ? 33 X ? 29 X 1.5

26

BEARING, BALL, 6204 C3 20X47X14

BEARING, BALL, 6204 C3 20X47X14

27

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

28

BEARING, BALL, 6305 C3, 25 X 62 X 17

BEARING, BALL, 6305 C3, 25 X 62 X 17

29

BEARING BALL 6007 C3 35 X 62 X 14

BEARING BALL 6007 C3 35 X 62 X 14

30

BEARING, BALL, 6304 C3 20X52X15

BEARING, BALL, 6304 C3 20X52X15

31

BEARING, BALL, 6203 C3 17X40X12

BEARING, BALL, 6203 C3 17X40X12

32

BEARING, NEEDLE, SPLIT CAGE

BEARING, NEEDLE, SPLIT CAGE

33

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6303, 17 X 47 X 14

34

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

35

BEARING, NEEDLE, 28 X 33 X 13

BEARING, NEEDLE, 28 X 33 X 13

36

SPRING, COMPRESSION, .648 O.D. X 1.33

SPRING, COMPRESSION, .648 O.D. X 1.33

37

SPRING, WAVE, 1.60 ID X .375

SPRING, WAVE, 1.60 ID X .375

38

SPRING, PARK PAWL TORSION

SPRING, PARK PAWL TORSION

39

SPRING, COMPRESSION .450 OD X 1.58

SPRING, COMPRESSION .450 OD X 1.58

40

BELLHOUSING, MACH

BELLHOUSING, MACH

41

GEARCASE GTO , COVER, MACH.

GEARCASE GTO , COVER, MACH.

42

GEARCASE, MAIN, GTO MACH

GEARCASE, MAIN, GTO MACH

43

PAWL, PARK

PAWL, PARK

44

GEAR, SECTOR 38T

GEAR, SECTOR 38T

45

BULLET, DETENT

BULLET, DETENT

46

SPROCKET, 47 TOOTH

SPROCKET, 47 TOOTH

47

SHAFT, INPUT

SHAFT, INPUT

48

SHAFT, OUTPUT REAR

SHAFT, OUTPUT REAR

49

SHAFT, REVERSE 61T

SHAFT, REVERSE 61T

50

GEAR, HELICAL 33T

GEAR, HELICAL 33T

51

TUBE, VENT, 90 -1/4

TUBE, VENT, 90 -1/4

52

GEAR, 67T

GEAR, 67T

53

SPROCKET 48T, 6-FACE

SPROCKET 48T, 6-FACE

54

SHAFT, SHIFT BELLCRANK

SHAFT, SHIFT BELLCRANK

55

RAIL, SHIFT SHAFT

RAIL, SHIFT SHAFT

56

PLUG, DETENT

PLUG, DETENT

57

RAIL, PARK SHAFT

RAIL, PARK SHAFT

58

DOG, ENGAGEMENT GTO, LOW

DOG, ENGAGEMENT GTO, LOW

59

KNOCK PIPE

KNOCK PIPE

60

Вилка

Вилка

61

DOG, ENGAGEMENT GTO, HIGH

DOG, ENGAGEMENT GTO, HIGH

62

Звездочка 19 зуб.

Звездочка 19 зуб.

63

DOG, ENGAGEMENT GTO, REV/LOW

DOG, ENGAGEMENT GTO, REV/LOW

64

Вилка

Вилка

65

SUBASSY, SWITCH SHAFT

SUBASSY, SWITCH SHAFT

66

SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)

SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)

67

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#26 & #29)

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#26 & #29)

68

KIT, GTO, PRIMARY SHIM PACK

KIT, GTO, PRIMARY SHIM PACK

69

SUB ASM-BEARING COVER

SUB ASM-BEARING COVER

70

KIT, LUK INPUT SHAFT PACK

KIT, LUK INPUT SHAFT PACK

71

BELLCRANK, 15T SPLINE

BELLCRANK, 15T SPLINE

72

DEFLECTOR, OIL

DEFLECTOR, OIL

73

PLUG, M18 X 1.5

PLUG, M18 X 1.5

74

CHAIN, SILENT, TYPE 101, .25P X .40W X 58L

CHAIN, SILENT, TYPE 101, .25P X .40W X 58L

75

CHAIN SILENT, .75 X .375 X 64P

CHAIN SILENT, .75 X .375 X 64P

76

SWITCH-ROTARY,6 PIN

SWITCH-ROTARY,6 PIN

77

Датчик скорости

Датчик скорости

78

SEAL, 35 X 62 X 8

SEAL, 35 X 62 X 8

79

SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON

SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON

80

LABEL, OIL

LABEL, OIL

81

Уплотнительное кольцо

Уплотнительное кольцо

82

O-RING, -014 VITON

O-RING, -014 VITON

83

O-RING, .530 I.D X .082 WIDE

O-RING, .530 I.D X .082 WIDE

84

O-RING-N70 9.5MM X 2MM

O-RING-N70 9.5MM X 2MM
