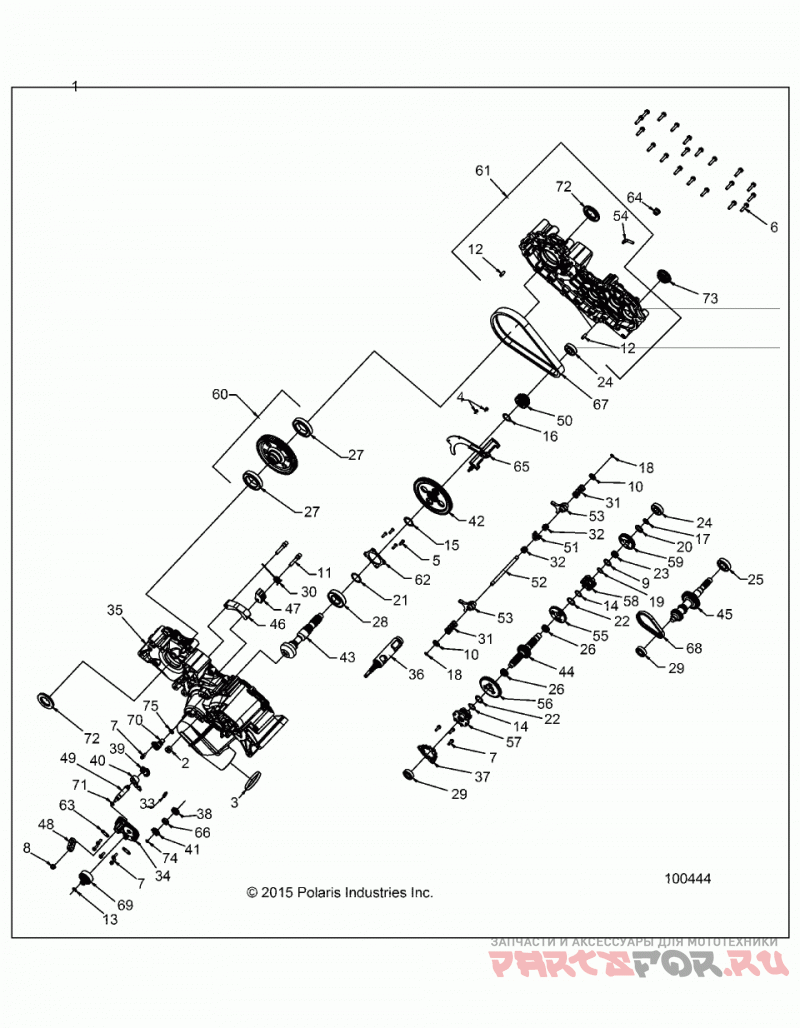

Drive train, main gearcase - a18saa50n5

Polaris A18SAA50N5 450 SPORTSMAN HD 2x4

Drive train, main gearcase - a18saa50n5

#

oem код

название

цена

1

ASM-TRANSMISSION,570,2X4,SNGL

ASM-TRANSMISSION,570,2X4,SNGL

2

PLUG, 3/4-16, HOLLOW HEX

PLUG, 3/4-16, HOLLOW HEX

3

PLUG, EXPANSION 80MM X 10MM

PLUG, EXPANSION 80MM X 10MM

4

SCREW, TAPPING TORX, PH 8-32 X.50

SCREW, TAPPING TORX, PH 8-32 X.50

5

SCREW, TORX, PAN HD 1/4-20 X .75

SCREW, TORX, PAN HD 1/4-20 X .75

6

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

7

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

8

NUT, LOCK HEX FLANGE, NYLON 5/16-24

NUT, LOCK HEX FLANGE, NYLON 5/16-24

9

WASHER, 1.250X.876X.05

WASHER, 1.250X.876X.05

10

WASHER, CUP

WASHER, CUP

11

PIN, TENSIONER

PIN, TENSIONER

12

PIN, 5/16 X 1.00

PIN, 5/16 X 1.00

13

Кольцо

Кольцо

14

Стопорное кольцо

Стопорное кольцо

15

RING, RETAINING, SHAFT, DIA. 1.375

RING, RETAINING, SHAFT, DIA. 1.375

16

RING RTNG, IRR 7200-118

RING RTNG, IRR 7200-118

17

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

18

RING, RETAINING BASIC, EXTERNAL .428

RING, RETAINING BASIC, EXTERNAL .428

19

RING, RETAINING, BASIC EXTERNAL DIA .84

RING, RETAINING, BASIC EXTERNAL DIA .84

20

WASHER THRUST , 1.270X.793X.065

WASHER THRUST , 1.270X.793X.065

21

SHIM, 1.700X1.385

SHIM, 1.700X1.385

22

WASHER, THRUST 1.300X.995X.065

WASHER, THRUST 1.300X.995X.065

23

BEARING, NEEDLE, CAGE ASSY

BEARING, NEEDLE, CAGE ASSY

24

BEARING, BALL 6204 C3 20X47X14

BEARING, BALL 6204 C3 20X47X14

25

BEARING, BALL 6205 C3 25X52X15

BEARING, BALL 6205 C3 25X52X15

26

BEARING, NEEDLE 25X29X10

BEARING, NEEDLE 25X29X10

27

BEARING, BALL 6010 C3 50X80X10

BEARING, BALL 6010 C3 50X80X10

28

BEARING, BALL 6207 C3 35X72X17

BEARING, BALL 6207 C3 35X72X17

29

BEARING, BALL 6203 C3 17X40X12

BEARING, BALL 6203 C3 17X40X12

30

Пружина

Пружина

31

SPRING, COMPRESSION .92 O.D. X 2.000

SPRING, COMPRESSION .92 O.D. X 2.000

32

SPRING, COMPRESSION .46 I.D. X .73

SPRING, COMPRESSION .46 I.D. X .73

33

SPRING, COMPRESSION, DETENT

SPRING, COMPRESSION, DETENT

34

COVER, SECTOR GEARS, MACH

COVER, SECTOR GEARS, MACH

36

DRUM, SHIFT MACH

DRUM, SHIFT MACH

37

PLATE, PARK, 12-FACE

PLATE, PARK, 12-FACE

38

GEAR, SECTOR 16T

GEAR, SECTOR 16T

39

GEAR, SECTOR 31T

GEAR, SECTOR 31T

40

PAWL, DETENT

PAWL, DETENT

41

STAR, DETENT

STAR, DETENT

42

GEAR OUTPUT 91T, HCR

GEAR OUTPUT 91T, HCR

43

PINION, 13T, CENTER DRIVE

PINION, 13T, CENTER DRIVE

44

SHAFT, REVERSE 26T

SHAFT, REVERSE 26T

45

SHAFT, 39T INPUT HELICAL

SHAFT, 39T INPUT HELICAL

46

SHOE, CHAIN TENSIONER

SHOE, CHAIN TENSIONER

47

CAM, CHAIN, TENSIONER

CAM, CHAIN, TENSIONER

48

BELLCRANK, .510 HOLE, 92 ~

BELLCRANK, .510 HOLE, 92 ~

49

Вал

Вал

50

Звездочка 19 зуб.

Звездочка 19 зуб.

51

COLLAR, SHIFT

COLLAR, SHIFT

52

RAIL, SHIFT SHAFT

RAIL, SHIFT SHAFT

53

Вилка

Вилка

55

SPROCKET 38T, 6-FACE

SPROCKET 38T, 6-FACE

56

GEAR, 33T, 6-FACE

GEAR, 33T, 6-FACE

57

DOG, L/P

DOG, L/P

58

ENGAGEMENT DOG, 6-FACE

ENGAGEMENT DOG, 6-FACE

59

GEAR-HELICAL 35T

GEAR-HELICAL 35T

60

SUB-ASSY SHAFT, 59T FINAL, OUTPUT WITH BEARING

SUB-ASSY SHAFT, 59T FINAL, OUTPUT WITH BEARING

62

COVER, BEARING, CENTER DRIVE

COVER, BEARING, CENTER DRIVE

63

BRACKET, WIRE HARNESS

BRACKET, WIRE HARNESS

64

PLUG, 3/4-16, HOLLOW HEX

PLUG, 3/4-16, HOLLOW HEX

65

DEFLECTOR, OIL

DEFLECTOR, OIL

66

Проставка

Проставка

67

CHAIN SILENT, 17 WIDE X 1.0 X 86P

CHAIN SILENT, 17 WIDE X 1.0 X 86P

68

CHAIN, .25P X .40W X 50L

CHAIN, .25P X .40W X 50L

69

SWITCH, ROTARY , 2 PIN RESISTIVE

SWITCH, ROTARY , 2 PIN RESISTIVE

70

Датчик скорости

Датчик скорости

71

O-RING, -014

O-RING, -014

72

SEAL, TRIPLE LIP, 40X70X7

SEAL, TRIPLE LIP, 40X70X7

73

SEAL, DUAL LIP, 25 X 47 VITON

SEAL, DUAL LIP, 25 X 47 VITON

74

O-RING, 2-012

O-RING, 2-012

75

Уплотнительное кольцо

Уплотнительное кольцо
