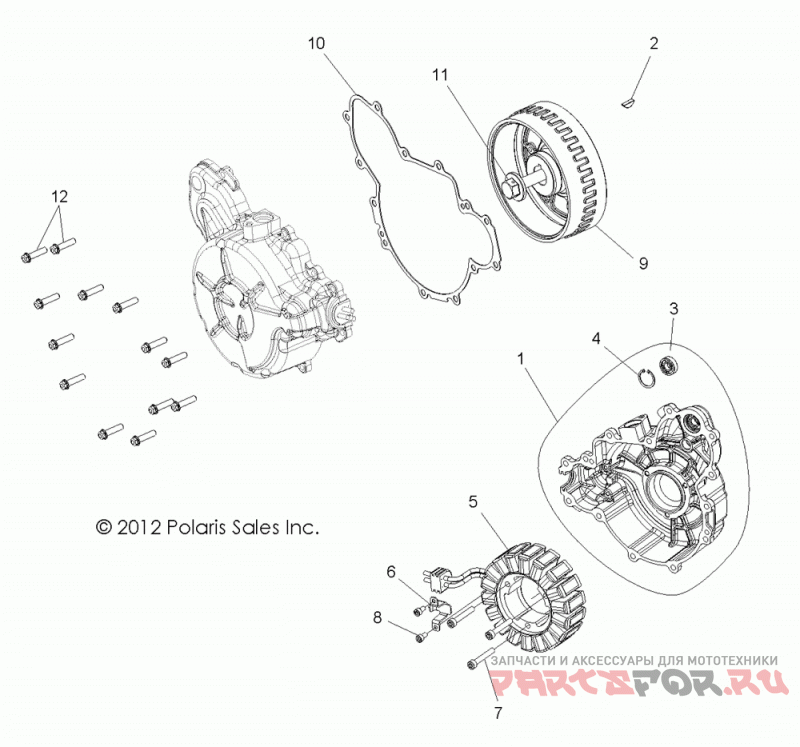

Engine, stator and cover

Polaris A16DAE87AL 900 ACE EFI EPS

Engine, stator and cover

#

oem код

название

цена

1

Asm-ign Cover, Starter Brg [incl. 3, 4]

Asm-ign Cover, Starter Brg [incl. 3, 4]

2

Сегментная шпонка

Сегментная шпонка

3

Bearing-ball, 9x24x7

Bearing-ball, 9x24x7

4

Ring-snap, Din472, 24x1.2mm

Ring-snap, Din472, 24x1.2mm

5

Stator-660w

Stator-660w

6

Brkt-retainer, Wire

Brkt-retainer, Wire

7

Scr-m6x1.0x40, Hx/soc/cp-y/d

Scr-m6x1.0x40, Hx/soc/cp-y/d

8

Scr-m5x0.8x10 Soc/cp-d

Scr-m5x0.8x10 Soc/cp-d

9

Маховик

Маховик

10

Gakset-cover, Mag

Gakset-cover, Mag

11

Scr-m12x1.25x39, Rotor, Xdrill

Scr-m12x1.25x39, Rotor, Xdrill

12

Винт

Винт
