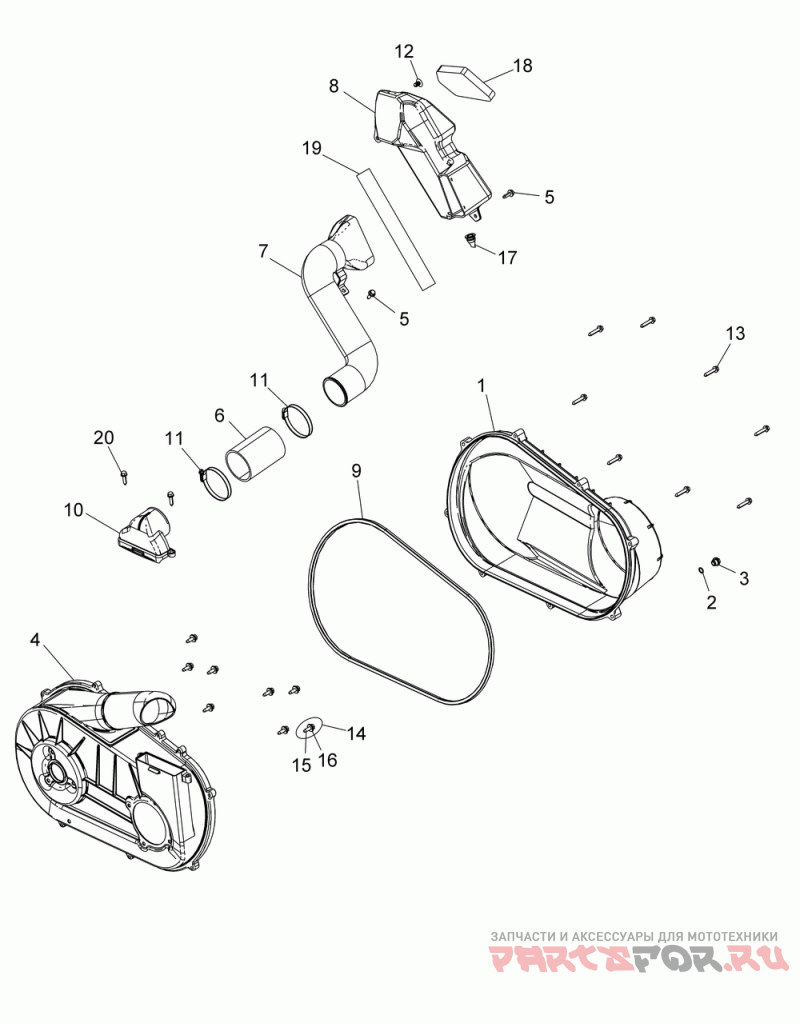

Drive train, clutch cover and ducting

Polaris A16DAA57N1/E57NM ACE 570 EFI MD

Polaris
#oem кодцена
1
2634179
Asm-cover,clutch,outer [incl. Cover, 2,3]
2
5411432
O Ring (10) (10 Per Pack)
3
5434264
Заглушка
4
2635395
Asm-cover, Clutch, Inner [incl. 4, 10, 20][to 2/22/16]
4
2636243
Asm-cover, Clutch, Inner [incl. 4, 10, 20][from 2/23/16]
5
7518529
Scr-m6x1.0x20, Hxhd, Flg, Tdfm, Bl(
6
5414892
Hose-intake, Clutch
7
5452670
Duct-clutch, Air In
7
7661855
Rivet-tuflok, .315-.325x.787 (50 (50 Per Pack)
8
5450727
Box-intake, Clutch, Lh
9
5521831
Уплотнение
10
5451299
Duct-clutch, Air In
11
7080707
Clamp, Band, Narrow (10) (10 Per Pack)
12
7670088
Clip, Plastic Dart, Nylon
13
7519849
Scr-#14x1-1/4, Hi/lo/taper-y
14
7519278
Asm-bolt/washer, 20 Mm
15
7519279
Scr-tfhfl-m6x1.0x20 Zod
16
7555748
Шайба
17
5414472
Заглушка
18
5814026
Filter-intake, Foam
19
5814033
Seal-foam, Adhesive
20
7512098
Screw (10) * (10 Per Pack)
