Подвеска задняя для квадроциклов Polaris SCRAMBLER XP 850 HO EPS INTL - A14GH8EFI (2014)

Москва и регионы России

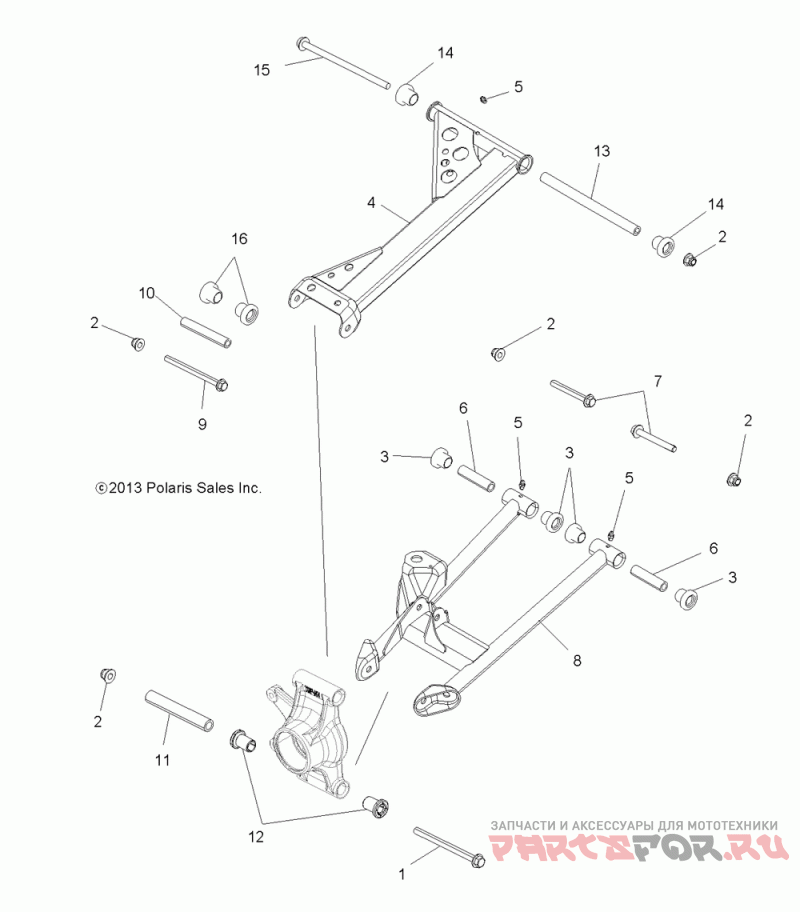

Подвеска задняя

Polaris SCRAMBLER XP 850 HO EPS INTL - A14GH8EFI

Подвеска задняя

#

oem код

название

цена

1

Bolt-m10x1.5x140, Hxhd, Flg

Bolt-m10x1.5x140, Hxhd, Flg

2

Nut-m10x1.5,hxflg, Nylon Ins

Nut-m10x1.5,hxflg, Nylon Ins

3

Asm-bushing, Hd, W/seal, 5.23 Flg

Asm-bushing, Hd, W/seal, 5.23 Flg

4

Weld-uca, Rear, Lh, Voodoo Blue

Weld-uca, Rear, Lh, Voodoo Blue

4

Weld-uca, Rear, Rh, Voodoo Blue

Weld-uca, Rear, Rh, Voodoo Blue

5

Штуцер (отпускается по 10шт)

Штуцер (отпускается по 10шт)

6

Shaft-a-arm, 63.5mm

Shaft-a-arm, 63.5mm

7

Bolt-m10x1.5x85, Hx Hd Flg

Bolt-m10x1.5x85, Hx Hd Flg

8

Weld-lca, Rear, Lh, Voodoo Blue

Weld-lca, Rear, Lh, Voodoo Blue

8

Weld-lca, Rear, Rh, Voodoo Blue

Weld-lca, Rear, Rh, Voodoo Blue

9

Bolt-m10x1.5x130, Hx Hd Flg

Bolt-m10x1.5x130, Hx Hd Flg

10

Shaft-pivot, 104.9mm, Zinc Yel

Shaft-pivot, 104.9mm, Zinc Yel

11

Shaft-a-arm, Lca, 0.75" Od

Shaft-a-arm, Lca, 0.75" Od

12

Bushing-lca, 0.75" Id

Bushing-lca, 0.75" Id

13

Shaft-pivot, 210.27mm, Zinc Yel

Shaft-pivot, 210.27mm, Zinc Yel

14

Asm-bushing, Hd, W/seal

Asm-bushing, Hd, W/seal

15

Bolt-m10x1.5x230, Hx Hd Flg

Bolt-m10x1.5x230, Hx Hd Flg

16

Втулка-рычага, 1,285

Втулка-рычага, 1,285
