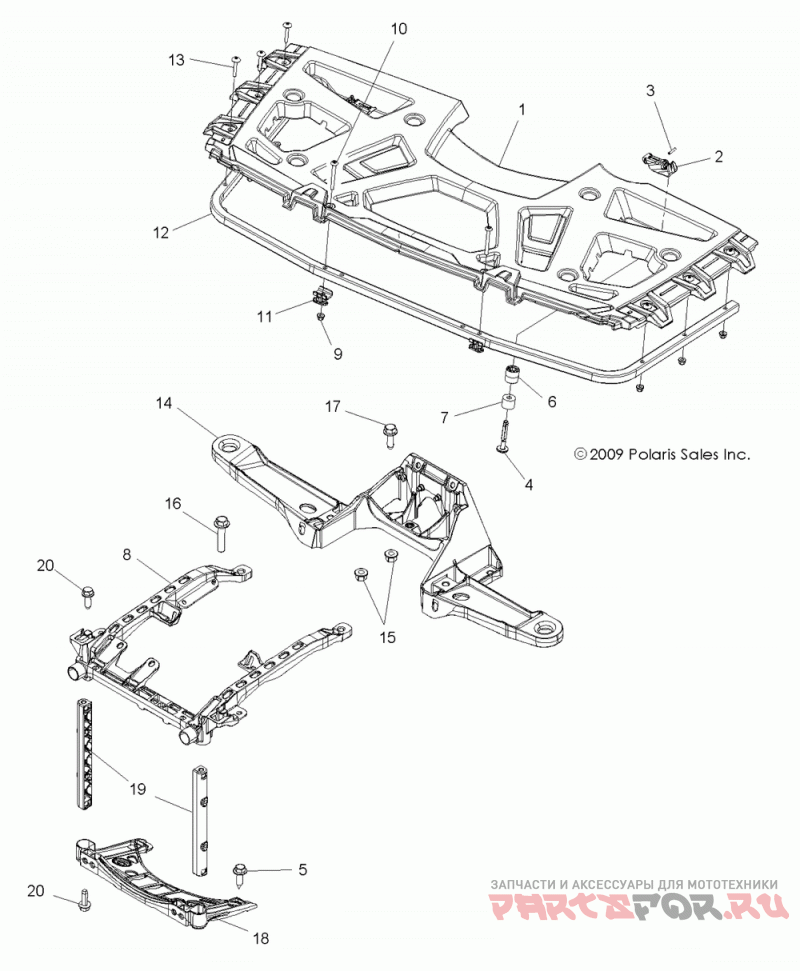

Body, front rack and supports

Polaris A13ZN5EAD/K/L/T SPORTSMAN 550 EPS

Body, front rack and supports

#

oem код

название

цена

1

Rack-front, Blk ([eah][eal][eam][eat] )

Rack-front, Blk ([eah][eal][eam][eat] )

2

Handle-lnr Anchor, Blk

Handle-lnr Anchor, Blk

3

Pin-dowel, 5/32"x7/8", Zpc

Pin-dowel, 5/32"x7/8", Zpc

4

Shaft-lnr Anchor, Blk

Shaft-lnr Anchor, Blk

5

Bolt-m8x1.25x20, Hxflg, Tap/r-od

Bolt-m8x1.25x20, Hxflg, Tap/r-od

6

Spacer-lnr Anchor

Spacer-lnr Anchor

7

Bushing-rubber, Lnr Anchor

Bushing-rubber, Lnr Anchor

8

Support-rack, Cast

Support-rack, Cast

9

Гайка м6

Гайка м6

10

Scr-m6x1x60, Tx Tr, Blk

Scr-m6x1x60, Tx Tr, Blk

11

Guide-rack, L&r

Guide-rack, L&r

12

Tube-support, Rack, Front, Upper

Tube-support, Rack, Front, Upper

13

Scr-m6x1x40, Tr/tx-m

Scr-m6x1x40, Tr/tx-m

14

Bulkhead-cast

Bulkhead-cast

15

Nut-m8x1.25, Hxflg, Nylon Ins

Nut-m8x1.25, Hxflg, Nylon Ins

16

Bolt-m8x1.25x65, Hxflg

Bolt-m8x1.25x65, Hxflg

17

Bolt-m8x20-1.25 Hx Hd Flg

Bolt-m8x20-1.25 Hx Hd Flg

18

Support-radiator, Cast

Support-radiator, Cast

19

Support-rack, Front

Support-rack, Front

20

Scr-hxfl, M8x1.25x25, Zod, Tap/r

Scr-hxfl, M8x1.25x25, Zod, Tap/r
