Brakes, brake pedal and master cylinder для квадроциклов Polaris SPORTSMAN XP 550 INTL - A09ZN55FX (2009)

Москва и регионы России

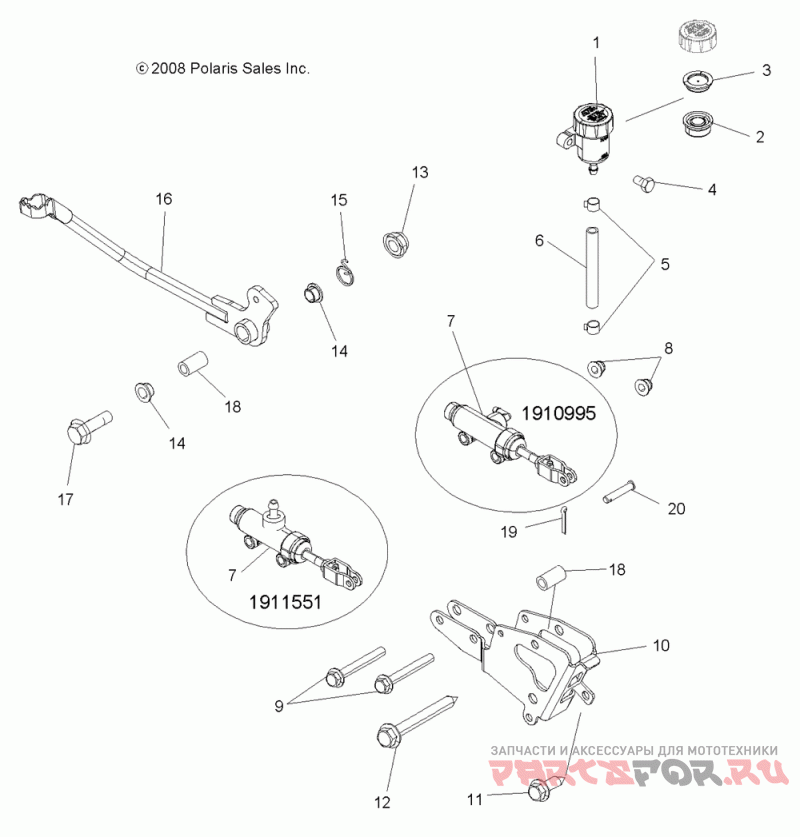

Brakes, brake pedal and master cylinder

Polaris SPORTSMAN XP 550 INTL - A09ZN55FX

Brakes, brake pedal and master cylinder

#

oem код

название

цена

1

Asm-reservoir,brake,tall,2-ear ([incl. 2,3, Cap] )

Asm-reservoir,brake,tall,2-ear ([incl. 2,3, Cap] )

10

Brkt-brake Mount Int'l

Brkt-brake Mount Int'l

11

Bolt-m8x1.25x20, Hxflg, Tap/r-od

Bolt-m8x1.25x20, Hxflg, Tap/r-od

12

Bolt-m8x1.25x50, Hxflg, Tap/r-od

Bolt-m8x1.25x50, Hxflg, Tap/r-od

13

Гайка m10x1.25

Гайка m10x1.25

14

Bushing-pedal Pivot

Bushing-pedal Pivot

15

Spring-torsion, Brake

Spring-torsion, Brake

16

Weld-lever, Brake, Blk

Weld-lever, Brake, Blk

17

Bolt-m10x1.25x50, Hxflg-olive D

Bolt-m10x1.25x50, Hxflg-olive D

18

Spacer-12.7x10.2x30.5mm

Spacer-12.7x10.2x30.5mm

19

Шплинт

Шплинт

2

Diaphragm-reservoir, Brake

Diaphragm-reservoir, Brake

20

Штифт

Штифт

3

Ring-reservoir, Brake

Ring-reservoir, Brake

4

Винт -m6x1.0x20

Винт -m6x1.0x20

5

Зажим (отпуск по 10 шт)

Зажим (отпуск по 10 шт)

6

Hose-reservoir, Brake, 826mm

Hose-reservoir, Brake, 826mm

7

Asm-m/cyl Foot 3/4", 3.70"long ([built 3/01/09 And Before] )

Asm-m/cyl Foot 3/4", 3.70"long ([built 3/01/09 And Before] )

8

Nut-m8x1.25, Hxflg, Nylon Ins

Nut-m8x1.25, Hxflg, Nylon Ins

9

Bolt-m8x1.25x45, Hx Hd Flg

Bolt-m8x1.25x45, Hx Hd Flg

7

Asm-m/cyl Foot, 3/4", Mt, Down ([built 3/02/09 And After] )

Asm-m/cyl Foot, 3/4", Mt, Down ([built 3/02/09 And After] )
