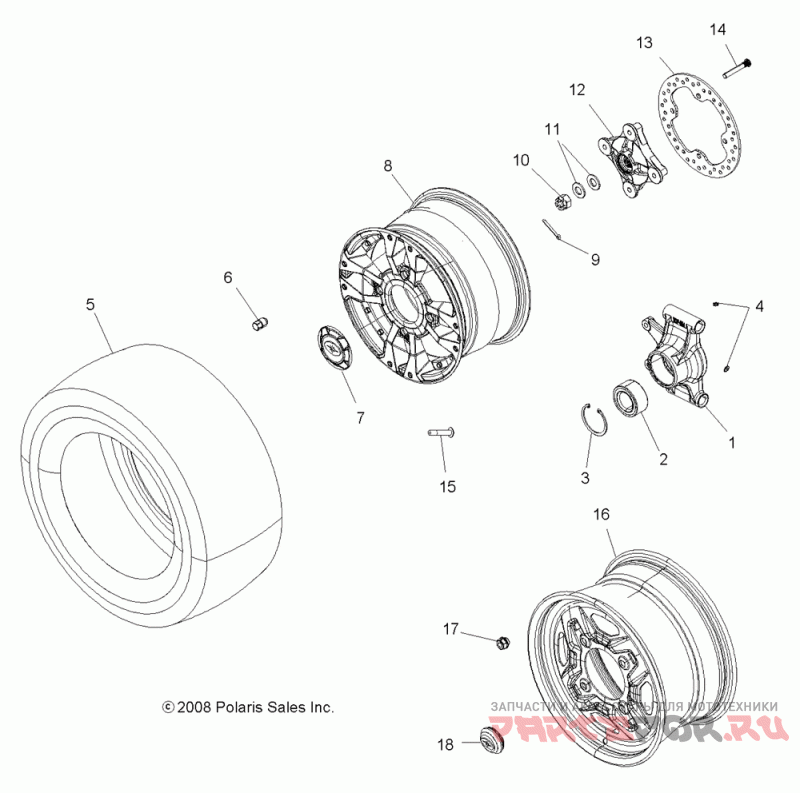

Заднее колесо

Polaris SPORTSMAN XP 550 - A09ZN55AL/AQ/AS/AT/AX

Polaris
#oem кодцена
1
5136105
Carrier-bearing, Mach, Lh ([built 4/27/09 And Before] )
9
7661404
Шплинт
10
7547406
Nut-castle, M18x1.5x13
11
7555796
Washer, Cone
12
5136946
Hub-wheel, Mach
13
5250205
Disc-brake, 246mm Od, 4.75
14
7518671
Stud-wheel, M10x1.25x58
15
1525017
Клапан обода
16
1520962-067
Weld-rim, Rear, 14"x8, Blk ([aq] )
16
1521411-455
Weld-rim, Rear, 14x8, Nbu ([at] )
17
7547363
Nut-wheel, M10x1.25, Tapered ([aq][at] )
18
5413473
Cover-hub, Dust, Int Lip, Short ([aq][at] )
1
5136106
Carrier-bearing, Mach, Rh ([built 4/27/09 And Before] )
1
5136689
Carrier-bearing, Mach, Lh ([built 4/28/09 And After] )
1
5136690
Carrier-bearing, Mach, Rh ([built 4/28/09 And After] )
2
3514627
Bearing-ball, Sealed, 44x72x33.1
3
7710440
Стопорное кольцо
4
7080424
Штуцер
5
5413505
Tire-rear, 26x10-14, Econ
6
7547361
Nut-wheel, M10x1.25, Tapered ([al][as][ax] )
7
5438120
Cover-hub ([al][as][ax] )
8
1521267
Rim-rear, 14x8, Cast, Ltwt ([al][as][ax] )
