Body, seat and operator для квадроциклов Polaris SPORTSMAN X2 700 EFI - A08TN68AX/AZ (2008)

Москва и регионы России

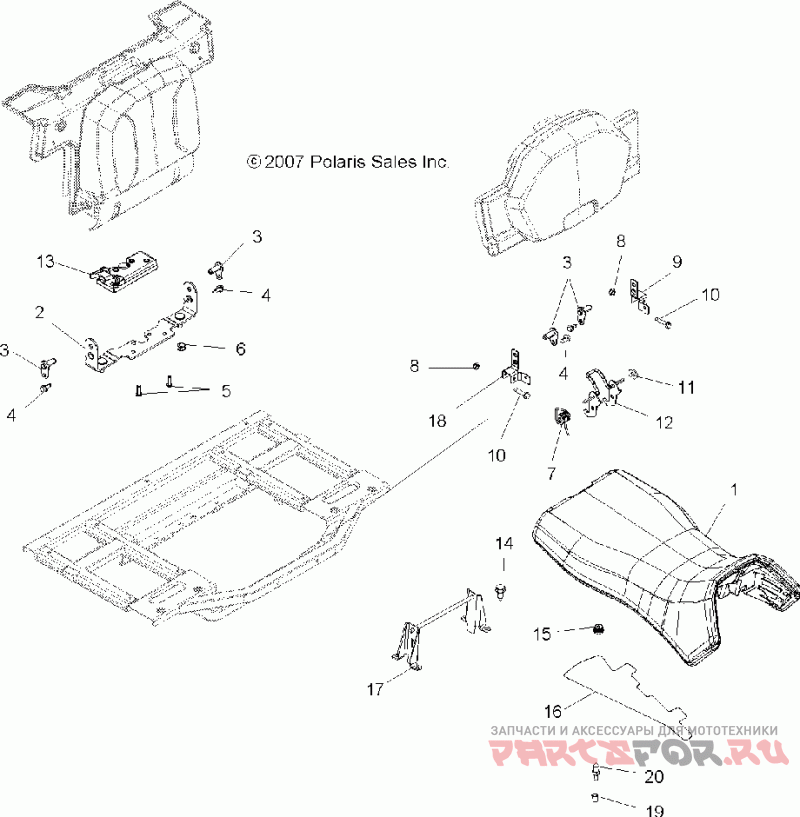

Body, seat and operator

Polaris SPORTSMAN X2 700 EFI - A08TN68AX/AZ

Body, seat and operator

#

oem код

название

цена

1

Asm-seat, Operator, X2, Blk ([incl. 15, 16] )

Asm-seat, Operator, X2, Blk ([incl. 15, 16] )

1

Asm-cover, X2, White Decal

Asm-cover, X2, White Decal

2

Weld-pivot, Pass Seat, Blk

Weld-pivot, Pass Seat, Blk

3

Weld-pin, Pivot

Weld-pin, Pivot

4

Винт (отпускается по 10шт.)

Винт (отпускается по 10шт.)

5

Винт

Винт

6

Гайка

Гайка

7

Пружина

Пружина

8

Гайка (отпускается по 10шт)

Гайка (отпускается по 10шт)

9

Bracket-pivot, Seat, Lh

Bracket-pivot, Seat, Lh

10

Болт

Болт

11

Проставка

Проставка

12

Weld-rod, Pass Seat, Blk

Weld-rod, Pass Seat, Blk

13

Latch-seat, Pass, Back

Latch-seat, Pass, Back

14

Scr-1/4-20x3/4 Tr/tx

Scr-1/4-20x3/4 Tr/tx

15

Grommet-seat Latch

Grommet-seat Latch

16

Foil-seat Base, Operator

Foil-seat Base, Operator

17

Weld-lockout, Passenger, Blk

Weld-lockout, Passenger, Blk

18

Bracket-pivot, Seat, Rh

Bracket-pivot, Seat, Rh

19

Insert,

Insert,

20

Pin-seat Latch

Pin-seat Latch
