Колесо заднее для квадроциклов Polaris SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX (2008)

Москва и регионы России

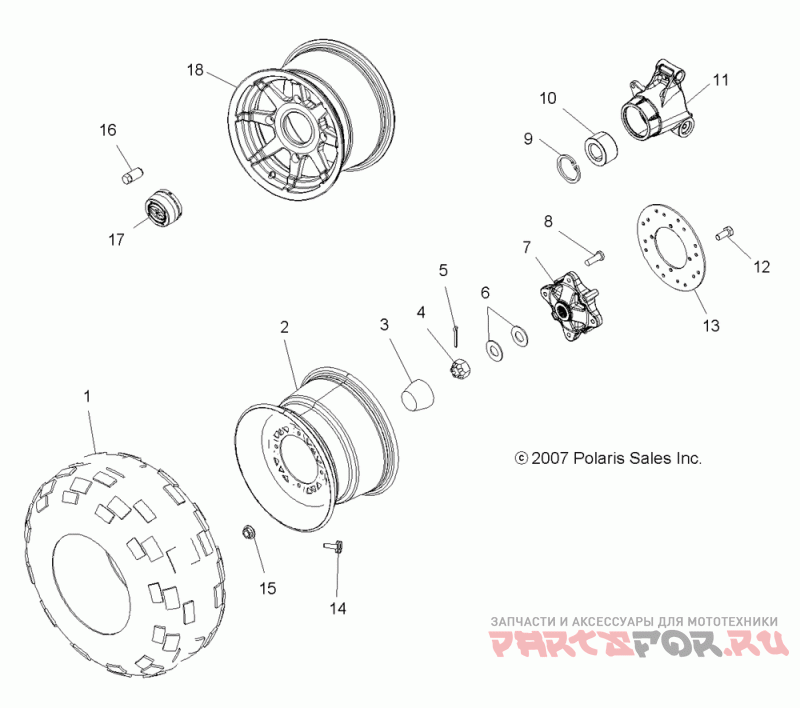

Колесо заднее

Polaris SPORTSMAN 800 HO EFI - A08MN76AF/AL/AQ/AR/AS/AT/AX

Колесо заднее

#

oem код

название

цена

1

Tire-rear, 26x11r12__uu0

Tire-rear, 26x11r12__uu0

9

Стопорное кольцо

Стопорное кольцо

10

Bearing-wheel, 40x74x40mm

Bearing-wheel, 40x74x40mm

11

Carrier-bearing, Wheel(mach)

Carrier-bearing, Wheel(mach)

12

Bolt-3/8-16x3/4-hx/cp-gr5-b

Bolt-3/8-16x3/4-hx/cp-gr5-b

13

Disc-brake, Rear, 8.625x.188

Disc-brake, Rear, 8.625x.188

14

Клапан обода

Клапан обода

15

Nut-flange, Two Piece, 3/8-24 ([aq][at] )

Nut-flange, Two Piece, 3/8-24 ([aq][at] )

16

Nut-3/8-24-wheel ([af][al][ar][as][ax] )

Nut-3/8-24-wheel ([af][al][ar][as][ax] )

17

Cap-rim, 14" ([af][al][ar][as][ax] )

Cap-rim, 14" ([af][al][ar][as][ax] )

18

Rim-rear, 12x8, Cast,31mm Ofst ([af][al][as][ax] )

Rim-rear, 12x8, Cast,31mm Ofst ([af][al][as][ax] )

18

Rim-rr, 12x8, Cast, 31mm Ofst, Blk ([ar] )

Rim-rr, 12x8, Cast, 31mm Ofst, Blk ([ar] )

2

Rim, Rear, 12x8, Black ([aq] )

Rim, Rear, 12x8, Black ([aq] )

2

Rim, Rear, 12x8, 10ga, Nbu Camo ([at] )

Rim, Rear, 12x8, 10ga, Nbu Camo ([at] )

3

Hub-dust Cover ([aq][at] )

Hub-dust Cover ([aq][at] )

4

Гайка

Гайка

5

Шплинт

Шплинт

6

Washer, Cone

Washer, Cone

7

Hub-wheel, Rear, Mach

Hub-wheel, Rear, Mach

8

Stud(10)3/8-24x1.12 Prs Fit-z ([aq][at] )

Stud(10)3/8-24x1.12 Prs Fit-z ([aq][at] )

8

Stud-3/8-24x1.38, Press Fit-z ([af][al][ar][as][ax] )

Stud-3/8-24x1.38, Press Fit-z ([af][al][ar][as][ax] )
